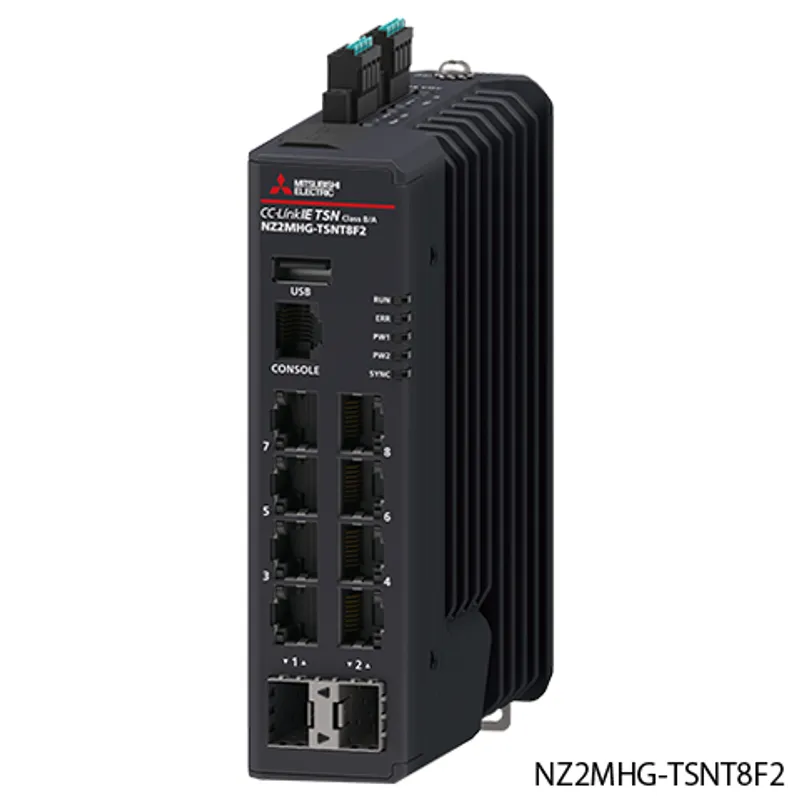

The Mitsubishi Electric NZ2MHG-TSNT8F2 is a option in the MELSEC network modules. 10 Mbps/100 Mbps/1 Gbps, Auto MDI/MDI-X, DIN rail, 8 ports Powered by MOXA ®. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Option
Type	Industrial switching hub
Outline	10 Mbps/100 Mbps/1 Gbps, Auto MDI/MDI-X, DIN rail, 8 ports Powered by MOXA ®

Specifications

Transmission speed: RJ45 port: 10BASE-T	10 Mbps (Full-duplex/half-duplex)
Transmission speed: RJ45 port: 100BASE-TX	100 Mbps (Full-duplex/half-duplex)
Transmission speed: RJ45 port: 1000BASE-T	1 Gbps (Full-duplex)
Transmission speed: SFP port: 1000BASE-SX	1 Gbps (Full-duplex/half-duplex)
Transmission speed: SFP port: 100BASE-FX	100 Mbps (Full-duplex/half-duplex)
Maximum segment length: 10BASE-T	100 m
Maximum segment length: 100BASE-TX	100 m
Maximum segment length: 1000BASE-T	100 m
Maximum segment length: 1000BASE-SX	550 m
Maximum segment length: 100BASE-FX	2 km
Communication interface: RJ45 port	• 8 ports • Auto-negotiation function • Auto MDI/MDI-X function
Communication interface: SFP port	2 ports
Number of MAC addresses to be learned	9216 maximum
Aging time for the MAC address table	10...300 s
VLAN: VLAN ID range	1...4094
VLAN: Number of VLANs to be set	256 maximum
Packet buffer size	4 Mbit
Compatible MIB	RFC1213, Ethernet-like MIB, IF MIB, LLDP MIB, Bridge MIB, QBRIDGE MIB, IEEE8021-PAE-MIB, IEEE8021-SPANNING-TREE-MIB, SNMPv2-MIB
Compatible protocol: Management purpose	IPv4/IPv6, LLDP, SMTP, SNMP Inform, SNMPv1/v2c/v3, SNMP Trap, DHCP Server/Client, ARP, TFTP, SFTP, HTTP, HTTPS, SSH, Telnet, Private MIB, Syslog
Compatible protocol: Redundancy	STP/RSTP
Compatible protocol: Security	RADIUS, TACACS+
Compatible protocol: Time synchronization	IEEE 1588v2 (PTP), SNTP, NTP Server/Client
TSN compatible standard	IEEE 802.1AS (gPTP), IEEE 802.1Qbv
CC-Link IE TSN Class	CC-Link IE TSN Class B CC-Link IE TSN Class A
Serial interface: Console port	RJ45 connector
Serial interface: USB port	USB Type-A connector
Relay output: Number of ports	1
Relay output: Maximum allowable voltage of contact	1 A at 24 V DC
Digital input: Number of ports	1
Digital input: Rated input voltage	• 13...30 V: H input • -30...3 V: L input
Digital input: Rated input current	8 mA
Power supply specifications: Rated voltage	12/24/48 V DC
Power supply specifications: Allowable voltage range	9.6...60 V DC
Power supply specifications: Protection function	• Overcurrent protection function • Reverse connection protection function
Power supply specifications: Internal current consumption (12 V DC)	1.72 A
Power supply specifications: Internal current consumption (24 V DC)	0.84 A
Power supply specifications: Internal current consumption (48 V DC)	0.43 A
Protection degree	IP40
External dimensions: Height	135 mm
External dimensions: Width	36 mm
External dimensions: Depth	115 mm
Weight	0.79 kg

Specifications

Operating ambient temperature	-10...60 ˚C
Storage ambient temperature	-40...85 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance	IEC 60068-2-6
Shock resistance	IEC 60068-2-27
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Pollution degree	2 or less
Equipment class	Class III

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

CC-Link IE TSN Industrial Managed Ethernet Switch User's Manual (SH-082449ENG-H)	PDF · 23.20MB
