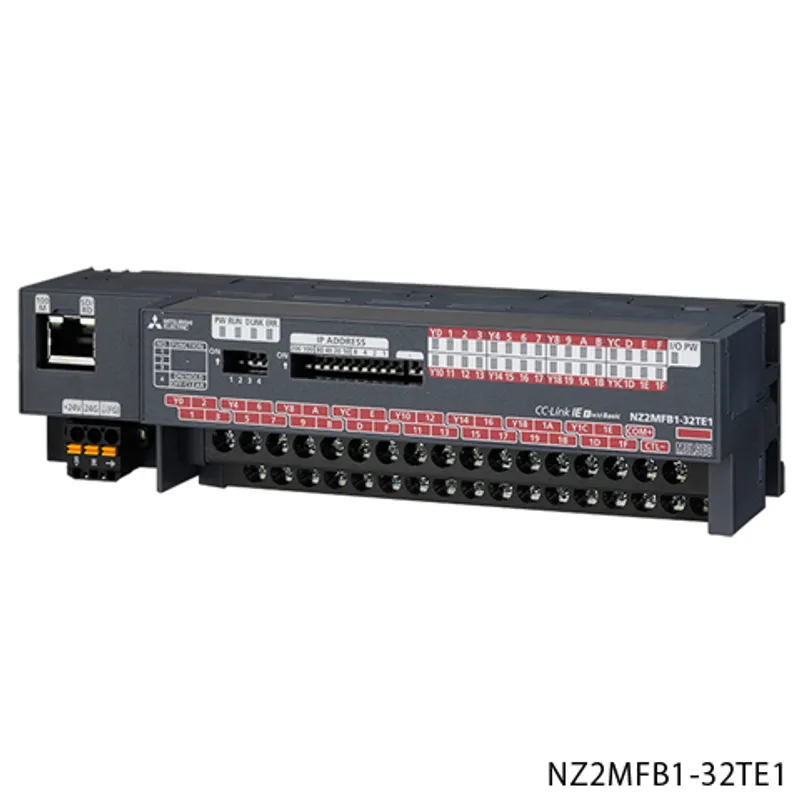

The Mitsubishi Electric NZ2MFB1-32TE1 is a remote I/O in the MELSEC network modules. Transistor output: 32 points, 12/24 V DC, 0.1 A/point, 2 A/common, response time: 1.5 ms, 32 points/common, source type, 1-wire terminal block type. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC network modules
Category	Remote I/O
Type	I/O
Subtype	Output
Outline	Transistor output: 32 points, 12/24 V DC, 0.1 A/point, 2 A/common, response time: 1.5 ms, 32 points/common, source type, 1-wire terminal block type

Output specifications

Output type	Transistor output (source type)
Number of output points	32 points
Rated load voltage	12...24 V DC (ripple ratio: within 5 %) (allowable voltage range: 10.2...28.8 V DC)
Maximum load current	0.1 A/point, 2 A/common
Maximum inrush current	Current is limited by the overload protection function.
Leakage current at OFF	0.1 mA or less
Maximum voltage drop at ON	0.1 V DC (TYP.) 0.1 A, 0.2 V DC (MAX.) 0.1 A
Output response time: OFF to ON	0.5 ms or less
Output response time: ON to OFF	1.5 ms or less (resistive load)
Surge suppressor	Zener diode
Protection function: Overheat protection function	Activated in increments of 2 points.
Protection function: Overload protection function	Limit current with overload protection at overcurrent detection: 1...3 A/point Activated in increments of 1 point.
External power supply for output part: Voltage	12...24 V DC (ripple ratio: within 5 %) (allowable voltage range: 10.2...28.8 V DC)
External power supply for output part: Current	25 mA or less (TYP. 24 V DC/common), excluding external load current
Output common terminal arrangement	32 points/common (1-wire, screw terminal block type)
Output isolation method	Photocoupler

Common specifications

Dielectric withstand voltage	Between all DC external terminals and ground: 510 V AC rms for 1 minute
Insulation resistance	Between all DC external terminals and ground: 10 MΩ or higher by 500 V DC insulation resistance tester
Protection degree	IP2X
Station type	Remote station
Number of occupied stations	1 station
Reference response time	1 ms
Module power supply: Voltage	24 V DC (ripple ratio: within 5 %) (allowable voltage range: 20.4...28.8 V DC)
Module power supply: Current	84 mA or less (at 24 V DC, all points ON)
External interface	Communication part: RJ45 connector Module power supply part: Terminal block for module power supply and FG (two-piece spring clamp terminal block) I/O part: 34-point one-piece terminal block (M3 screw)
Communication cable	An Ethernet cable that meets the 100BASE-TX standard
External dimensions: Height	50 mm
External dimensions: Width	200 mm
External dimensions: Depth	68 mm
Weight	0.30 kg

Specifications

Operating ambient temperature	0...55 ˚C
Storage ambient temperature	-25...75 ˚C
Operating ambient humidity	5...95 %RH, non-condensing
Storage ambient humidity	5...95 %RH, non-condensing
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under intermittent vibration	Frequency: 5...8.4 Hz, Half amplitude: 3.5 mm Frequency: 8.4...150 Hz, Constant acceleration: 9.8 m/s 2 Sweep count: 10 times each in X, Y, and Z directions
Vibration resistance: IEC 61131-2: 2007/JIS B 3502: 2011: Under continuous vibration	Frequency: 5...8.4 Hz, Half amplitude: 1.75 mm Frequency: 8.4...150 Hz, Constant acceleration: 4.9 m/s 2
Shock resistance: IEC 61131-2: 2007/JIS B 3502: 2011	Three shocks in each direction per axis, on 3 mutually perpendicular axes (total of 18 shocks)
Operating atmosphere	No corrosive gases, flammable gases, less conductive dust
Operating altitude	0...2000 m
Installation location	Inside a control panel
Overvoltage category	II or less
Pollution degree	2 or less
Equipment class	Class I
