L60DA4 Mitsubishi MELSEC-L Series Analog output
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Mitsubishi MELSEC-L Series – Analog |
| Lifecycle | Active mature |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can L60DA4 be shipped?
L60DA4 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up L60DA4 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for L60DA4 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L60DA4, subject to availability and destination.

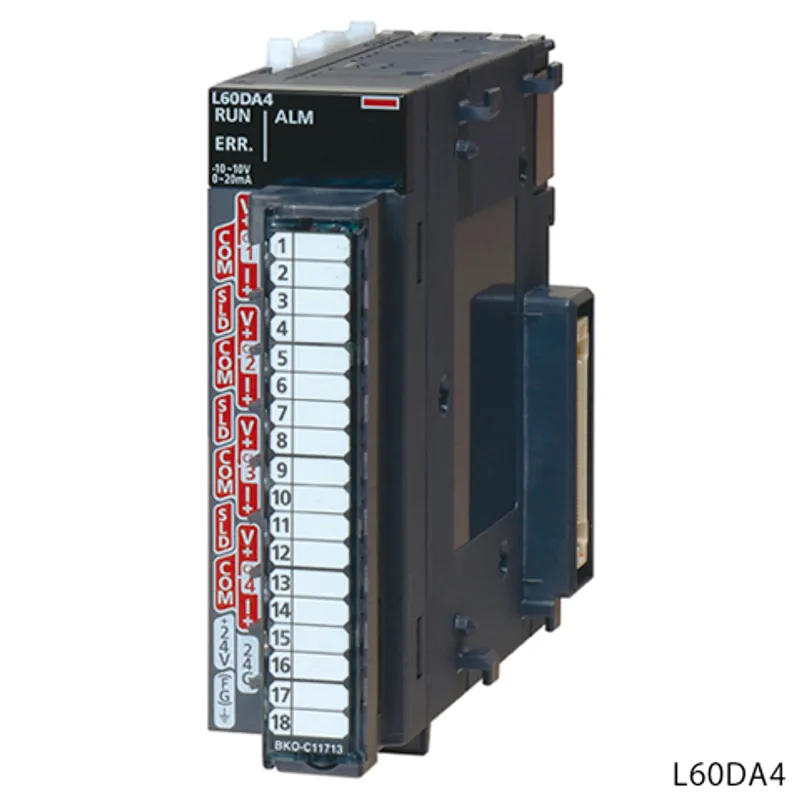

The Mitsubishi Electric L60DA4 is a analog output in the MELSEC-L Series. 4 channels, input (resolution): 0...20000, -20000...20000, output: -10...10 V DC, 0...20 mA DC, conversion speed (normal output mode): 20 μs/channel, conversion speed (waveform output mode): 50 μs/channel, 80 μs/channel, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC-L Series |
| Category | Analog output |
| Type | Voltage/current output |
| Sales status | 2027/09 To be end of order (Mitsubishi Electric) |
| Outline | 4 channels, input (resolution): 0...20000, -20000...20000, output: -10...10 V DC, 0...20 mA DC, conversion speed (normal output mode): 20 μs/channel, conversion speed (waveform output mode): 50 μs/channel, 80 μs/channel, 18-point terminal block |
Output specifications
| Number of analog output points | 4 points (4 channels) |
| Digital input | -20480...+20479 (When the scaling function is used: -32768...32767) |
| Analog output: Voltage | -10...+10 V DC (external load resistance 1 kΩ...1 MΩ) |
| Analog output: Current | 0...20 mA DC (external load resistance 0...600 Ω) |
| I/O characteristics, resolution: Output range | Digital input value (resolution) |
| I/O characteristics, resolution: Voltage output: 0...5 V | 0...20000 (250 µV) |
| I/O characteristics, resolution: Voltage output: 1...5 V | 0...20000 (200 µV) |
| I/O characteristics, resolution: Voltage output: -10...10 V | -20000...20000 (500 µV) |
| I/O characteristics, resolution: Voltage output: User range setting | -20000...20000 (333 µV) |
| I/O characteristics, resolution: Current output: 0...20 mA | 0...20000 (1000 nA) |
| I/O characteristics, resolution: Current output: 4...20 mA | 0...20000 (800 nA) |
| I/O characteristics, resolution: Current output: User range setting | -20000...20000 (700 nA) |
| Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 25±5 ﾟC | Within ±0.1 % |
| Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ﾟC | Within ±0.3 % |
| D/A conversion speed | Normal output mode: 20 µs/channel Wave output mode: 50 µs/channel, 80 µs/channel |
| Output short protection | Protected |
Common specifications
| Isolation method | Between I/O terminals and programmable controller power supply: Photocoupler Between output channels: Non-isolation Between external power supply and analog output: Transformer |
| Dielectric withstand voltage | Between I/O terminals and programmable controller power supply, between external power supply and analog output: 500 V AC rms for 1 minute |
| Insulation resistance | Between I/O terminals and programmable controller power supply: 500 V DC 10 MΩ or higher |
| External power supply: Voltage | 24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower) |
| External power supply: Current | 0.18 A (inrush current: 4.9 A, 1000 µs or lower) |
| External interface | 18-point terminal block (M3 screw) |
| Number of occupied I/O points | 16 points (I/O assignment: Intelligent 16 points) |
| Internal current consumption (5 V DC) | 0.16 A |
| External dimensions: Height | 90 mm |
| External dimensions: Width | 28.5 mm |
| External dimensions: Depth | 117 mm |
| Weight | 0.20 kg |
Specifications
| General specifications | Refer to the general specifications of the CPU module or remote head module. |
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
| MELSEC-L Digital-Analog Converter Module User's Manual (SH-080900ENG-H) | PDF · 6.08MB |
| Before Using the Product (BCN-P5754) | PDF · 0.15MB |
