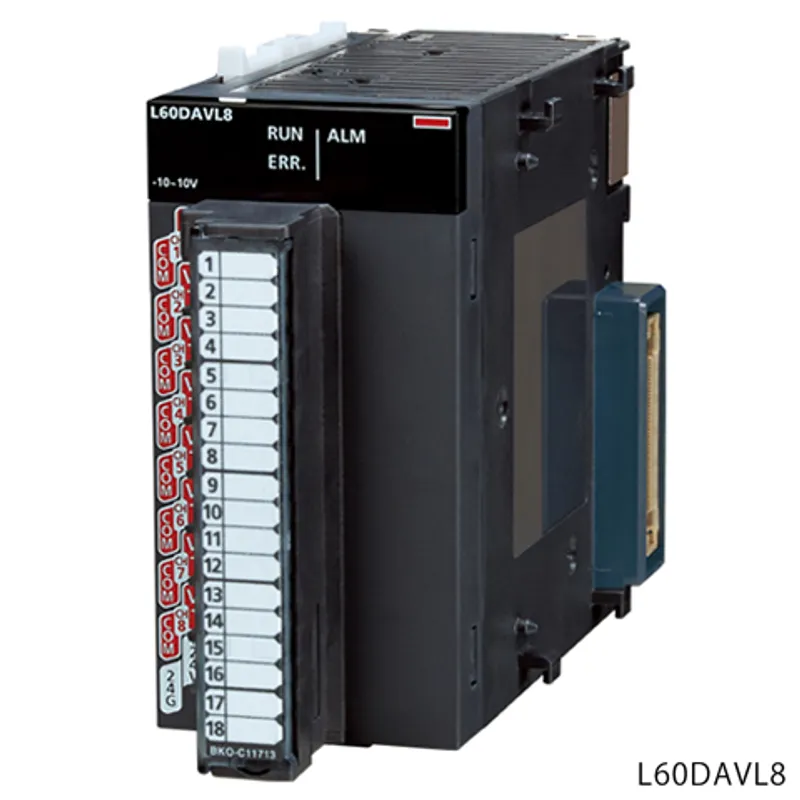

What is the Mitsubishi Electric L60DAVL8?

The Mitsubishi Electric L60DAVL8 is a analog output in the MELSEC-L Series. 8 channels, input (resolution): 0...8000, -16000...16000, output: -10...10 V DC, conversion speed (normal output mode): 200 μs/channel, conversion speed (wave output mode): 200 μs/channel, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryAnalog output
TypeVoltage input
Sales status2027/09 To be end of order (Mitsubishi Electric)
Outline8 channels, input (resolution): 0...8000, -16000...16000, output: -10...10 V DC, conversion speed (normal output mode): 200 μs/channel, conversion speed (wave output mode): 200 μs/channel, 18-point terminal block

Output specifications

Number of analog output points8 points (8 channels)
Digital input-16384...+16383 (When the scaling function is used: -32768...32767)
Analog output: Voltage-10...+10 V DC (external load resistance 1 kΩ...1 MΩ)
I/O characteristics, resolution: Output rangeDigital input value (resolution)
I/O characteristics, resolution: Voltage output: 0...5 V0...8000 (625 µV)
I/O characteristics, resolution: Voltage output: 1...5 V0...8000 (500 µV)
I/O characteristics, resolution: Voltage output: -10...10 V-16000...16000 (625 µV)
I/O characteristics, resolution: Voltage output: User range setting-8000...8000 (320 µV)
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 25±5 ゚CWithin ±0.3 %
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ゚CWithin ±0.5 %
D/A conversion speedNormal output mode: 200 µs/channel Wave output mode: 200 µs/channel
Output short protectionProtected

Common specifications

Isolation methodBetween I/O terminals and programmable controller power supply: Photocoupler Between output channels: Non-isolation Between external power supply and analog output: Transformer
Dielectric withstand voltageBetween I/O terminals and programmable controller power supply, between external power supply and analog output: 500 V AC rms for 1 minute
Insulation resistanceBetween I/O terminals and programmable controller power supply: 500 V DC 10 MΩ or higher
External power supply: Voltage24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current0.13 A (inrush current: 3.9 A, 2.0 ms or lower)
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.15 A
External dimensions: Height90 mm
External dimensions: Width45 mm
External dimensions: Depth117 mm
Weight0.22 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

L60DAVL8: frequently asked questions

When can L60DAVL8 be shipped?

L60DAVL8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L60DAVL8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L60DAVL8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L60DAVL8, subject to availability and destination.
