L60MD4-G Mitsubishi MELSEC-L Series Multiple input

MPN: L60MD4-G · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-L Series – Analog
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can L60MD4-G be shipped?

L60MD4-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L60MD4-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L60MD4-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L60MD4-G, subject to availability and destination.

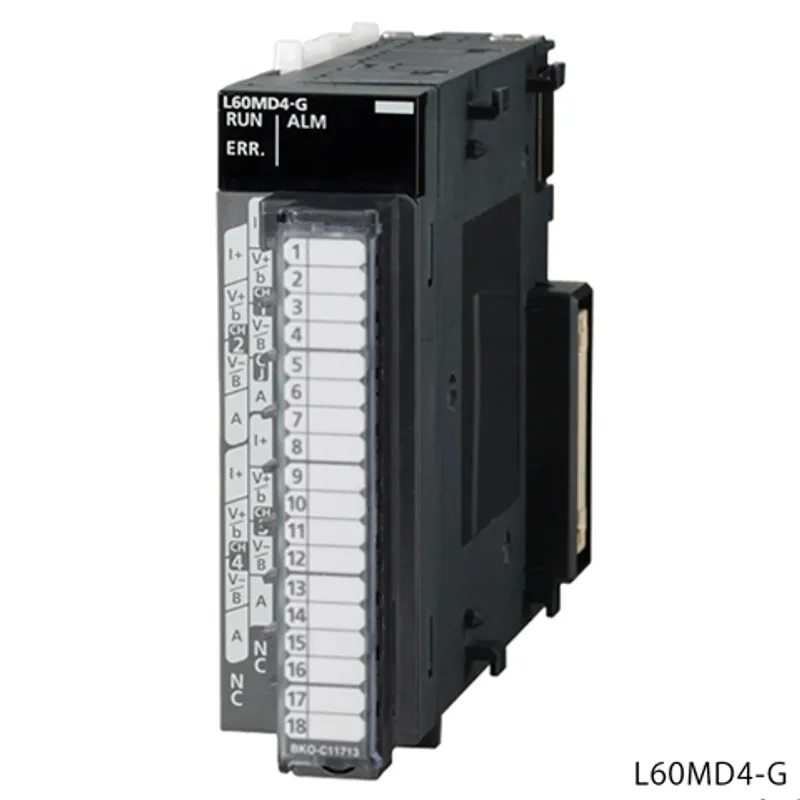

The Mitsubishi Electric L60MD4-G is a multiple input in the MELSEC-L Series. 4 channels, 5 input types (voltage, current, micro voltage, thermocouple, RTD), conversion speed: 50 ms/channel, 18-point termina block. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-L Series
Category	Multiple input
Sales status	2027/09 To be end of order (Mitsubishi Electric)
Outline	4 channels, 5 input types (voltage, current, micro voltage, thermocouple, RTD), conversion speed: 50 ms/channel, 18-point termina block

Specifications

Number of analog input points	4 points (4 channels)
Analog input: Voltage	-10...+10 V DC (input resistance 1 MΩ)
Analog input: Current	0...20 mA DC (input resistance 250 Ω)
Analog input: Micro voltage	-100...100 mV DC
Analog input: Thermocouple: Available type	K, J, T, E, N, R, S, B, U, L, PLII, W5Re/W26Re
Analog input: Thermocouple: Cold junction compensation	Use the included cold junction compensation resistor (CJ).
Analog input: Resistance temperature detector: Available type	Pt1000, Pt100, JPt100, Pt50
Analog input: Resistance temperature detector: Measurement method	3-wire system
Digital output: Voltage, current, micro voltage	-20480...+20479
Digital output: Resistance temperature detector (Pt100/JPt100 (-20...120 ˚C))	• For Celsius: -2000...12000 • For Fahrenheit: 0...20000 Value rounded off to two decimal places × 100 times
Digital output: Thermocouple, resistance temperature detector (other than the above)	• For Celsius: -2700...23000 • For Fahrenheit: -4000...32000 Value rounded off to one decimal place × 10 times
Digital output: Scaling value	-32768...32767
Resolution: Input range	Digital output value (resolution)
Resolution: Voltage input: 0...10 V	0...20000 (500 µV)
Resolution: Voltage input: 0...5 V	0...20000 (250 µV)
Resolution: Voltage input: 1...5 V	0...20000 (200 µV)
Resolution: Voltage input: -10...10 V	-20000...20000 (500 µV)
Resolution: Voltage input: 1...5 V (extended mode)	-5000...22500 (200 µV)
Resolution: Current input: 0...20 mA	0...20000 (1000 nA)
Resolution: Current input: 4...20 mA	0...20000 (800 nA)
Resolution: Current input: 4...20 mA (extended mode)	-5000...22500 (800 nA)
Resolution: Micro voltage: -100...100 mV	-20000...20000 (5 µV)
Resolution: Thermocouple	B, R, S, N, PL II, W5Re/W26Re: 0.3 ˚C K, E, J, T, U, L: 0.1 ˚C
Resolution: Resistance temperature detector	Pt100 (-20...120 ˚C), JPt100 (-20...120 ˚C): 0.03 ˚C Pt100 (-200...850 ˚C), JPt100 (-200...600 ˚C), Pt1000, Pt50: 0.1 ˚C
Accuracy: Voltage, current, micro voltage: Ambient temperature: 25±5 ˚C	Maximum value of the measurement range × (±0.3 %)
Accuracy: Voltage, current, micro voltage: Ambient temperature: 0...55 ˚C	Maximum value of the measurement range × (±0.9 %)
Accuracy: Thermocouple: Ambient temperature: 25±5 ˚C	Full scale × (±0.15 %)
Accuracy: Thermocouple: Ambient temperature: 0...55 ˚C	Full scale × (±0.3 %)
Accuracy: Cold junction compensation resistor: Measured temperature: -100 ˚C or more	Within ±1.0 ˚C
Accuracy: Cold junction compensation resistor: Measured temperature: -150...-100 ˚C	Within ±2.0 ˚C
Accuracy: Cold junction compensation resistor: Measured temperature: -200...-150 ˚C	Within ±3.0 ˚C
Accuracy: Resistance temperature detector	Accuracy (ﾟC) = (Conversion accuracy) + (Temperature characteristics) × (Operating ambient temperature change) + (Allowable difference of resistance temperature detector used)
Accuracy: Resistance temperature detector: Pt100/JPt100 (-20...120 ˚C/0...200 ˚F)	• For Celsius Conversion accuracy: 1 ˚C Temperature characteristics: 0.1 ˚C • For Fahrenheit Conversion accuracy: 1˚F Temperature characteristics: 0.1˚F
Accuracy: Resistance temperature detector: Other than the above	• For Celsius Conversion accuracy: 2 ˚C Temperature characteristics: 0.2 ˚C • For Fahrenheit Conversion accuracy: 3˚F Temperature characteristics: 0.3˚F
Conversion speed	50 ms/channel
Absolute maximum input: Voltage	±15 V
Absolute maximum input: Current	±30 mA
Isolation method	Between input terminals and programmable controller power supply: Photocoupler Between input channels: Transformer
Dielectric withstand voltage	Between input terminals and programmable controller power supply, between input channels: 500 V AC for 1 minute
Insulation resistance	Between input terminals and programmable controller power supply, between input channels: 500 V DC, 10 MΩ or higher
External interface	18-point terminal block (M3 screw)
Number of occupied I/O points	16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)	0.49 A
External dimensions: Height	90 mm
External dimensions: Width	28.5 mm
External dimensions: Depth	117 mm
Weight	0.19 kg

Specifications

General specifications

Refer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC-L Multiple Input (Voltage/Current/Temperature) Module User's Manual (SH-081365ENG-B)	PDF · 4.04MB
Before Using the Product (BCN-P5999-0174E-E)	PDF · 0.16MB

12-month warrantyon all new stock

3-month warrantyon used & refurbished parts

30-day returnsno restocking fee on unused parts

Global shippingFast, tracked delivery worldwide
