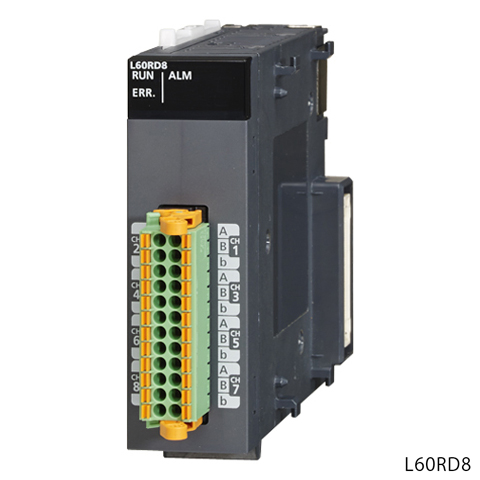

Mitsubishi Electric L60RD8

Mitsubishi MELSEC-L Series Temperature input

MPN
L60RD8
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric L60RD8?

The Mitsubishi Electric L60RD8 is a temperature input in the MELSEC-L Series. 8 channels, RTD (Pt100, JPt100, Pt1000, Pt50, Pt10, Ni100, Ni120, Ni500, Cu100, Cu50), conversion speed: 40 ms/channel, 24-point spring-clamp terminal block. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryTemperature input
TypeRTD input
Sales status2027/09 To be end of order (Mitsubishi Electric)
Outline8 channels, RTD (Pt100, JPt100, Pt1000, Pt50, Pt10, Ni100, Ni120, Ni500, Cu100, Cu50), conversion speed: 40 ms/channel, 24-point spring-clamp terminal block

Specifications

Number of analog input points8 points (8 channels)
Digital output: Temperature measured value-3280...15620
Digital output: Scaling value-32768...32767
Applicable resistance temperature detectorPt100, JPt100, Pt1000, Pt50, Ni100, Ni120, Ni500, Cu100, Cu50
Measured temperature range: Pt100Celsius: -20...120 ˚C, -200...850 ˚C Fahrenheit: -4...248˚F, -328...1562˚F
Measured temperature range: JPt100Celsius: -20...120 ˚C, -200...600 ˚C Fahrenheit: -4...248˚F, -328...1112˚F
Measured temperature range: Pt1000Celsius: -200...850 ˚C Fahrenheit: -328...1562˚F
Measured temperature range: Pt50Celsius: -200...650 ˚C Fahrenheit: -328...1202˚F
Measured temperature range: Ni100Celsius: -60...250 ˚C Fahrenheit: -76...482˚F
Measured temperature range: Ni120Celsius: -60...250 ˚C Fahrenheit: -76...482˚F
Measured temperature range: Ni500Celsius: -60...250 ˚C Fahrenheit: -76...482˚F
Measured temperature range: Cu100Celsius: -180...200 ˚C Fahrenheit: -292...392˚F
Measured temperature range: Cu50Celsius: -180...200 ˚C Fahrenheit: -292...392˚F
Temperature detecting output current1 mA: Pt100, JPt100, Pt50, Ni100, Ni120, Cu100, Cu50 100 µA: Pt1000, Ni500
Resolution0.1 ˚C
AccuracyAccuracy (゚C) = (Conversion accuracy) + (Allowable difference of resistance temperature detector used)
Conversion accuracy: Pt100: -200...850 ゚CSpecified temperature × ±0.3 % or ±0.8 ˚C, whichever is greater (ambient temperature: 25±5 ゚C), Specified temperature × ±0.8 % or ±2.7 ˚C, whichever is greater (ambient temperature: 0...55 ゚C)
Conversion accuracy: Pt100: -20...120 ゚C±0.6 ˚C (ambient temperature: 25±5 ゚C), ±2.0 ˚C (ambient temperature: 0...55 ゚C)
Conversion accuracy: Pt100: -4...248 ˚F±1.1˚F (ambient temperature: 25±5 ゚C), ±3.6˚F (ambient temperature: 0...55 ゚C)
Conversion accuracy: Pt100: -328...1562 ˚FSpecified temperature × ±0.3 % or ±1.5˚F, whichever is greater (ambient temperature: 25±5 ゚C), Specified temperature × ±0.8 % or ±4.9˚F, whichever is greater (ambient temperature: 0...55 ゚C)
Conversion accuracy: JPt100: -20...120 ゚C±0.6 ˚C (ambient temperature: 25±5 ゚C), ±2.0 ˚C (ambient temperature: 0...55 ゚C)
Conversion accuracy: JPt100: -4...248 ˚F±1.1˚F (ambient temperature: 25±5 ゚C), ±3.6˚F (ambient temperature: 0...55 ゚C)
Conversion accuracy: JPt100: -200...600 ゚CSpecified temperature × ±0.3 % or ±0.8 ˚C, whichever is greater (ambient temperature: 25±5 ゚C), Specified temperature × ±0.8 % or ±2.7 ˚C, whichever is greater (ambient temperature: 0...55 ゚C)
Conversion accuracy: JPt100: -328...1112 ˚FSpecified temperature × ±0.3 % or ±1.5˚F, whichever is greater (ambient temperature: 25±5 ゚C), Specified temperature × ±0.8 % or ±4.9˚F, whichever is greater (ambient temperature: 0...55 ゚C)
Conversion accuracy: Pt1000: -200...850 ゚CSpecified temperature × ±0.3 % or ±0.8 ˚C, whichever is greater (ambient temperature: 25±5 ゚C), Specified temperature × ±0.8 % or ±2.7 ˚C, whichever is greater (ambient temperature: 0...55 ゚C)
Conversion accuracy: Pt1000: -328...1562 ˚FSpecified temperature × ±0.3 % or ±1.5˚F, whichever is greater (ambient temperature: 25±5 ゚C), Specified temperature × ±0.8 % or ±4.9˚F, whichever is greater (ambient temperature: 0...55 ゚C)
Conversion accuracy: Pt50: -200...650 ゚CSpecified temperature × ±0.3 % or ±0.8 ˚C, whichever is greater (ambient temperature: 25±5 ゚C), Specified temperature × ±0.8 % or ±4.1 ˚C, whichever is greater (ambient temperature: 0...55 ゚C)
Conversion accuracy: Pt50: -328...1202 ˚FSpecified temperature × ±0.3 % or ±1.5˚F, whichever is greater (ambient temperature: 25±5 ゚C), Specified temperature × ±0.8 % or ±7.4˚F, whichever is greater (ambient temperature: 0...55 ゚C)
Conversion accuracy: Ni100/Ni120/Ni500: -60...250 ゚C±0.6 ˚C (ambient temperature: 25±5 ゚C), Specified temperature × ±0.8 % or ±1.4 ˚C, whichever is greater (ambient temperature: 0...55 ゚C)
Conversion accuracy: Ni100/Ni120/Ni500: -76...482 ˚F±1.1˚F (ambient temperature: 25±5 ゚C), Specified temperature × ±0.8 % or ±2.6˚F, whichever is greater (ambient temperature: 0...55 ゚C)
Conversion accuracy: Cu100/Cu50: -180...200 ゚C±0.8 ˚C (ambient temperature: 25±5 ゚C), ±2.7 ˚C (ambient temperature: 0...55 ゚C)
Conversion accuracy: Cu100/Cu50: -292...392 ˚F±1.5˚F (ambient temperature: 25±5 ゚C), ±4.9˚F (ambient temperature: 0...55 ゚C)
Conversion speed40 ms/channel
Disconnection detectionAvailable
Isolation methodBetween input terminals and programmable controller power supply: Photocoupler Between input channels: Non-isolation
Dielectric withstand voltageBetween input terminals and programmable controller power supply: 500 V AC rms for 1 minute Between input channels: Non-isolation
Insulation resistanceBetween input terminals and programmable controller power supply: 500 V DC, 10 MΩ or higher Between input channels: Non-isolation
External interface24-point spring clamp terminal block
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.22 A
External dimensions: Height90 mm
External dimensions: Width28.5 mm
External dimensions: Depth116.5 mm
Weight0.15 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

L60RD8: frequently asked questions

When can L60RD8 be shipped?

L60RD8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L60RD8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L60RD8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L60RD8, subject to availability and destination.
