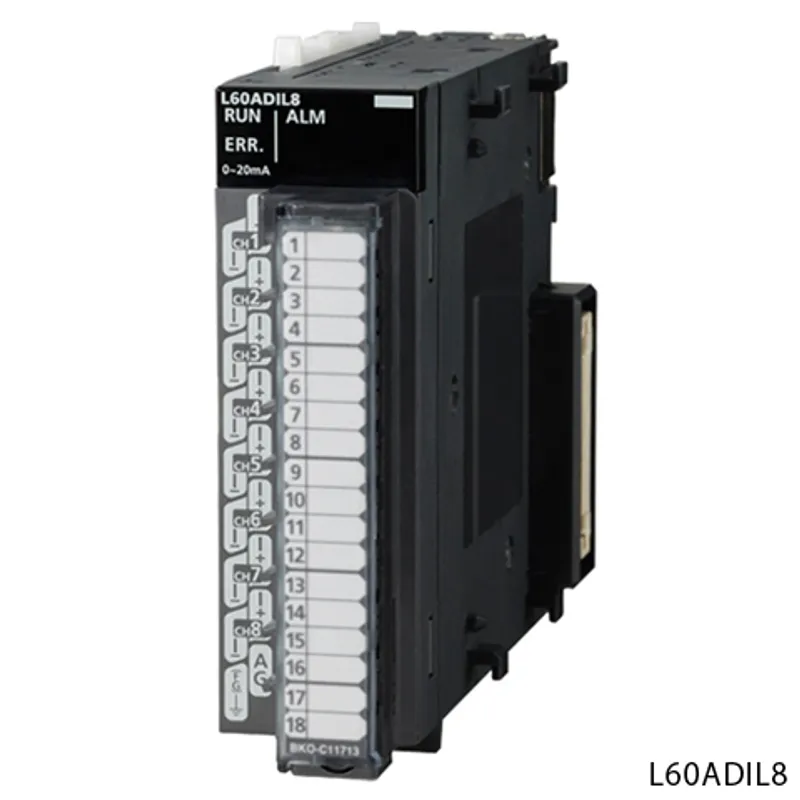

Mitsubishi Electric L60ADIL8

Mitsubishi MELSEC-L Series Analog input

MPN
L60ADIL8
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric L60ADIL8?

The Mitsubishi Electric L60ADIL8 is a analog input in the MELSEC-L Series. 8 channels, input: 0...20 mA DC, output (resolution): 0...8000, -8000...8000, conversion speed: 1 ms/channel, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryAnalog input
TypeCurrent input
Sales status2027/09 To be end of order (Mitsubishi Electric)
Outline8 channels, input: 0...20 mA DC, output (resolution): 0...8000, -8000...8000, conversion speed: 1 ms/channel, 18-point terminal block

Input specifications

Number of analog input points8 points (8 channels)
Analog input: Current0...20 mA DC (input resistance 250 Ω)
Digital output-8192...+8192 (When the scaling function is used: -32768...32767)
I/O characteristics, resolution: Input rangeDigital output value (resolution)
I/O characteristics, resolution: Current input: 0...20 mA0...8000 (2500 nA)
I/O characteristics, resolution: Current input: 4...20 mA0...8000 (2000 nA)
I/O characteristics, resolution: Current input: 4...20 mA (extended mode)-2000...9000 (2500 nA)
I/O characteristics, resolution: Current input: User range setting-8000...8000 (1660 nA)
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 25±5 ゚CWithin ±0.2 %
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ゚CWithin ±1 %
A/D conversion speed1 ms/channel
Absolute maximum input: Current±30 mA

Common specifications

Isolation methodBetween input terminals and programmable controller power supply: Photocoupler Between input channels: Non-isolation
Dielectric withstand voltageBetween input terminals and programmable controller power supply: 500 V AC rms for 1 minute
Insulation resistanceBetween input terminals and programmable controller power supply: 500 V DC, 10 MΩ or higher
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.21 A
External dimensions: Height90 mm
External dimensions: Width28.5 mm
External dimensions: Depth117 mm
Weight0.19 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

L60ADIL8: frequently asked questions

When can L60ADIL8 be shipped?

L60ADIL8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L60ADIL8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L60ADIL8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L60ADIL8, subject to availability and destination.
