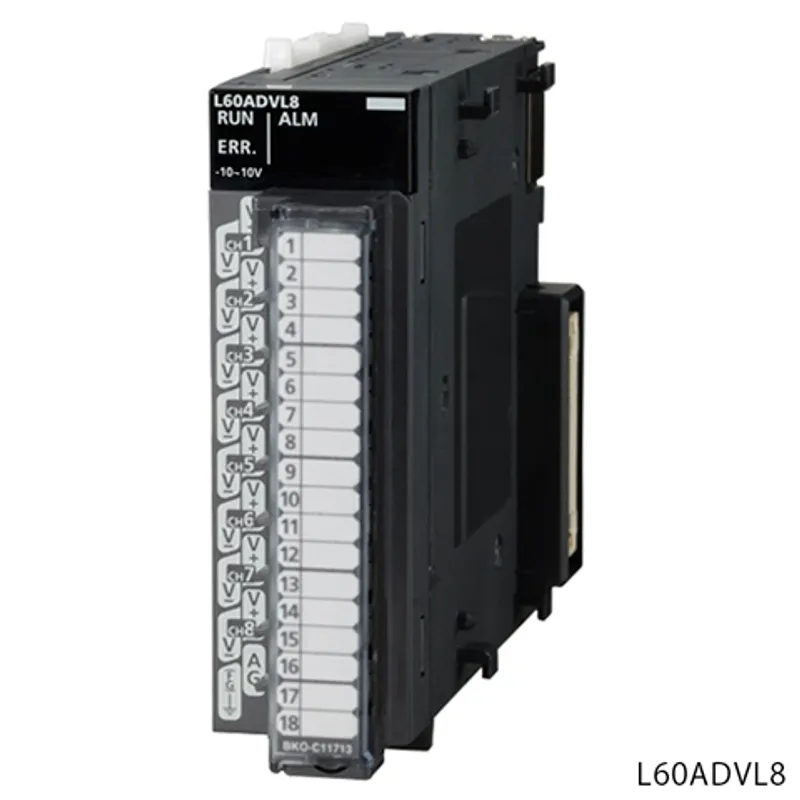

L60ADVL8 Mitsubishi MELSEC-L Series Analog input

MPN: L60ADVL8 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-L Series – Analog
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can L60ADVL8 be shipped?

L60ADVL8 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L60ADVL8 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L60ADVL8 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L60ADVL8, subject to availability and destination.

The Mitsubishi Electric L60ADVL8 is a analog input in the MELSEC-L Series. 8 channels, input: -10...10 V DC, output (resolution): 0...16000, 0...8000, -16000...16000, -8000...8000, conversion speed: 1 ms/channel, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-L Series
Category	Analog input
Type	Voltage input
Sales status	2027/09 To be end of order (Mitsubishi Electric)
Outline	8 channels, input: -10...10 V DC, output (resolution): 0...16000, 0...8000, -16000...16000, -8000...8000, conversion speed: 1 ms/channel, 18-point terminal block

Input specifications

Number of analog input points	8 points (8 channels)
Analog input: Voltage	-10...+10 V DC (input resistance 1 MΩ)
Digital output	-16384...+16383 (When the scaling function is used: -32768...32767)
I/O characteristics, resolution: Input range	Digital output value (resolution)
I/O characteristics, resolution: Voltage input: 0...10 V	0...16000 (625 µV)
I/O characteristics, resolution: Voltage input: 0...5 V	0...8000 (625 µV)
I/O characteristics, resolution: Voltage input: 1...5 V	0...8000 (500 µV)
I/O characteristics, resolution: Voltage input: 1...5 V (extended mode)	-2000...9000 (500 µV)
I/O characteristics, resolution: Voltage input: -10...10 V	-16000...16000 (625 µV)
I/O characteristics, resolution: Voltage input: User range setting	-8000...8000 (414 µV)
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 25±5 ﾟC	Within ±0.2 %
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ﾟC	Within ±1 %
A/D conversion speed	1 ms/channel
Absolute maximum input: Voltage	±15 V

Common specifications

Isolation method	Between input terminals and programmable controller power supply: Photocoupler Between input channels: Non-isolation
Dielectric withstand voltage	Between input terminals and programmable controller power supply: 500 V AC rms for 1 minute
Insulation resistance	Between input terminals and programmable controller power supply: 500 V DC, 10 MΩ or higher
External interface	18-point terminal block (M3 screw)
Number of occupied I/O points	16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)	0.20 A
External dimensions: Height	90 mm
External dimensions: Width	28.5 mm
External dimensions: Depth	117 mm
Weight	0.19 kg
