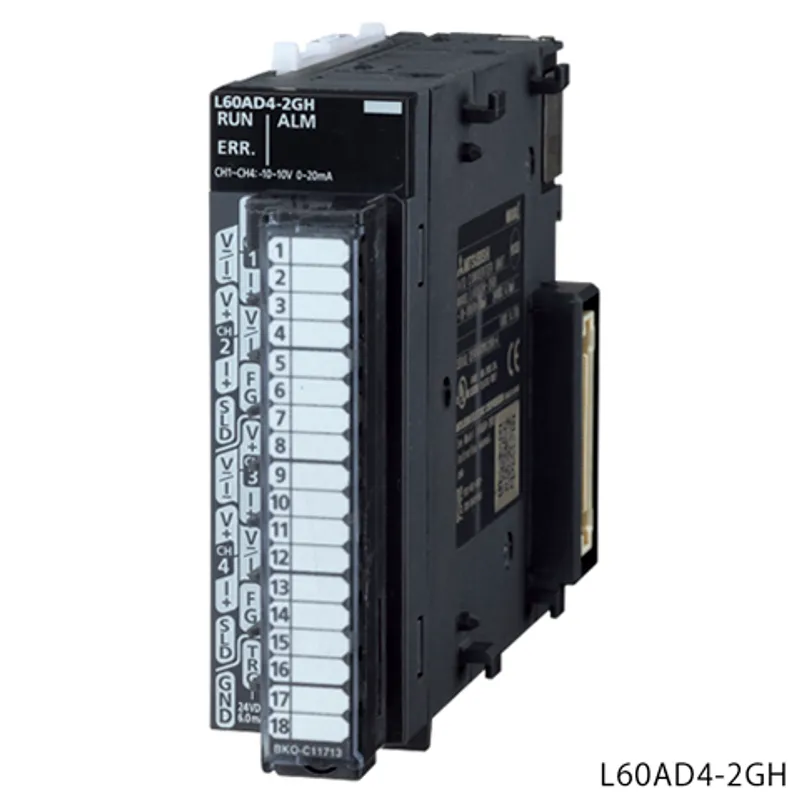

Mitsubishi Electric L60AD4-2GH

Mitsubishi MELSEC-L Series Analog input

MPN
L60AD4-2GH
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original L60AD4-2GH (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric L60AD4-2GH?

The Mitsubishi Electric L60AD4-2GH is a analog input in the MELSEC-L Series. 4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...32000, -8000...32000, -32000...32000, conversion speed: 40 μs/2 channels, 18-point terminal block. Mitsubishi Electric has discontinued it (2022/06 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-L Series
CategoryAnalog input
TypeVoltage/current input
SubtypeDual channel isolation
Sales status2022/06 Discontinued (Mitsubishi Electric)
Outline4 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...32000, -8000...32000, -32000...32000, conversion speed: 40 μs/2 channels, 18-point terminal block

Input specifications

Number of analog input points4 points (4 channels)
Analog input: Voltage-10...+10 V DC (input resistance 1 MΩ)
Analog input: Current0...20 mA DC (input resistance 250 Ω)
Digital output-32000...+32000 (When the scaling function is used: -32768...32767)
I/O characteristics, resolution: Input rangeDigital output value (resolution)
I/O characteristics, resolution: Voltage input: 0...10 V0...32000 (312.5 µV)
I/O characteristics, resolution: Voltage input: 0...5 V0...32000 (156 µV)
I/O characteristics, resolution: Voltage input: 1...5 V0...32000 (125 µV)
I/O characteristics, resolution: Voltage input: 1...5 V (extended mode)-8000...32000 (125 µV)
I/O characteristics, resolution: Voltage input: -10...10 V-32000...32000 (312.5 µV)
I/O characteristics, resolution: Voltage input: User range setting-32000...32000 (200 µV)
I/O characteristics, resolution: Current input: 0...20 mA0...32000 (625 nA)
I/O characteristics, resolution: Current input: 4...20 mA0...32000 (500 nA)
I/O characteristics, resolution: Current input: 4...20 mA (extended mode)-8000...32000 (500 nA)
I/O characteristics, resolution: Current input: User range setting0...32000 (400 nA)
Accuracy (accuracy relative to maximum value of the digital output value): Reference accuracyWithin ±0.05 %
Accuracy (accuracy relative to maximum value of the digital output value): Temperature coefficient±40.1 ppm/˚C (0.00401 %/˚C)
A/D conversion speed40 µs/2 channels
Absolute maximum input: Voltage±15 V
Absolute maximum input: Current±30 mA

Common specifications

Isolation methodBetween I/O terminal and programmable controller power supply: Photocoupler Between analog input channels: Dual channel transformer
Dielectric withstand voltageBetween I/O terminals and programmable controller power supply: 500 V AC for 1 minute Between analog input channels: 1000 V AC for 1 minute
Insulation resistanceBetween I/O terminals and programmable controller power supply, between analog input channels: 500 V DC, 10 MΩ or higher
External interface18-point terminal block (M3 screw)
Number of occupied I/O points16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)0.76 A
External dimensions: Height90 mm
External dimensions: Width28.5 mm
External dimensions: Depth117 mm
Weight0.20 kg

Specifications

General specificationsRefer to the general specifications of the CPU module or remote head module.

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

L60AD4-2GH: frequently asked questions

Can I still buy the L60AD4-2GH now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the L60AD4-2GH, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can L60AD4-2GH be shipped?

L60AD4-2GH is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L60AD4-2GH in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L60AD4-2GH and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L60AD4-2GH, subject to availability and destination.
