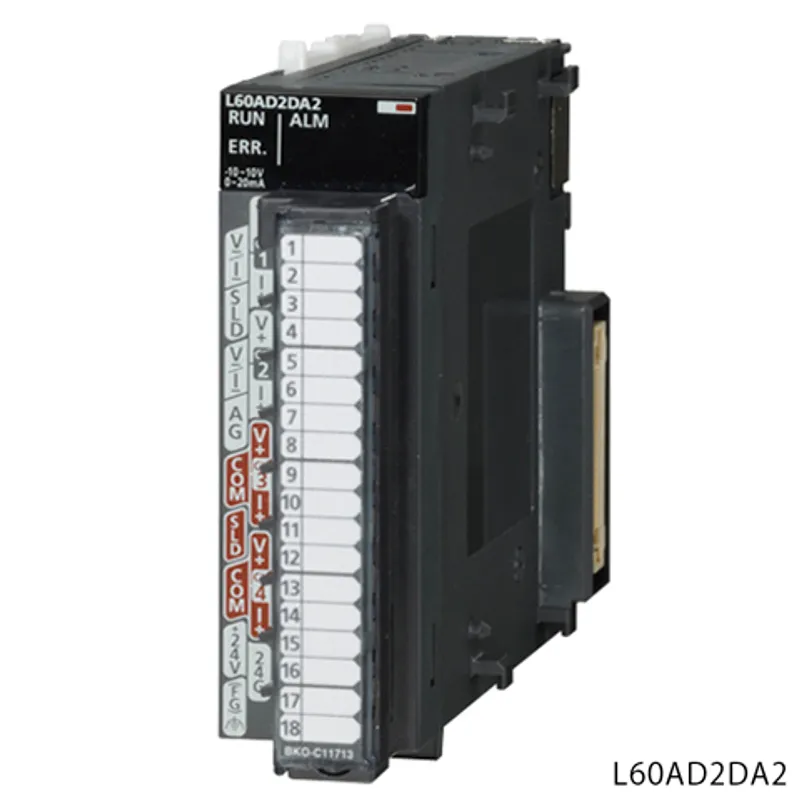

L60AD2DA2 Mitsubishi MELSEC-L Series Analog I/O

MPN: L60AD2DA2 · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-L Series – Analog
Lifecycle	Active mature
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can L60AD2DA2 be shipped?

L60AD2DA2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up L60AD2DA2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for L60AD2DA2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for L60AD2DA2, subject to availability and destination.

The Mitsubishi Electric L60AD2DA2 is a analog I/O in the MELSEC-L Series. Analog input: 2 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...16000, -16000...16000, conversion speed: 80 μs/channel analog output: 2 channels, input (resolution): 0...16000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 80 μs/channel, 18-point terminal block. Mitsubishi Electric has announced its discontinuation (2027/09 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-L Series
Category	Analog I/O
Sales status	2027/09 To be end of order (Mitsubishi Electric)
Outline	Analog input: 2 channels, input: -10...10 V DC, 0...20 mA DC, output (resolution): 0...16000, -16000...16000, conversion speed: 80 μs/channel analog output: 2 channels, input (resolution): 0...16000, -16000...16000, output: -10...10 V DC, 0...20 mA DC, conversion speed: 80 μs/channel, 18-point terminal block

Input specifications

Number of analog input points	2 points (2 channels)
Analog input: Voltage	-10...+10 V DC (input resistance 1 MΩ)
Analog input: Current	0...20 mA DC (input resistance 250 Ω)
Digital output	-16384...+16383 (When the scaling function is used: -32768...32767)
I/O characteristics, resolution: Input range	Digital output value (resolution)
I/O characteristics, resolution: Voltage input: 0...10 V	0...16000 (625 µV)
I/O characteristics, resolution: Voltage input: 0...5 V	0...12000 (416 µV)
I/O characteristics, resolution: Voltage input: 1...5 V	0...12000 (333 µV)
I/O characteristics, resolution: Voltage input: 1...5 V (extended mode)	-3000...13500 (333 µV)
I/O characteristics, resolution: Voltage input: -10...10 V	-16000...16000 (625 µV)
I/O characteristics, resolution: Voltage input: User range setting	-12000...12000 (321 µV)
I/O characteristics, resolution: Current input: 0...20 mA	0...12000 (1666 nA)
I/O characteristics, resolution: Current input: 4...20 mA	0...12000 (1333 nA)
I/O characteristics, resolution: Current input: 4...20 mA (extended mode)	-3000...13500 (1333 nA)
I/O characteristics, resolution: Current input: User range setting	-12000...12000 (1287 nA)
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 25±5 ﾟC	Within ±0.2 %
Accuracy (accuracy relative to maximum value of the digital output value): Ambient temperature: 0...55 ﾟC	Within ±0.3 %
A/D conversion speed	Logging function: 80 µs/channel Wave output function: 80 µs/channel Variable conversion characteristics function: 100 µs/channel Variable arithmetic function: 160 µs/channel Variable conversion characteristics function + variable arithmetic function: 160 ms/channel PID control function: 200 µs/channel
Absolute maximum input: Voltage	±15 V
Absolute maximum input: Current	±30 mA

Output specifications

Number of analog output points	2 points (2 channels)
Digital input	-16384...+16383 (When the scaling function is used: -32768...32767)
Analog output: Voltage	-10...+10 V DC (external load resistance 1 kΩ...1 MΩ)
Analog output: Current	0...20 mA DC (external load resistance 0...600 Ω)
I/O characteristics, resolution: Output range	Digital input value (resolution)
I/O characteristics, resolution: Voltage output: 0...5 V	0...12000 (416 µV)
I/O characteristics, resolution: Voltage output: 1...5 V	0...12000 (333 µV)
I/O characteristics, resolution: Voltage output: -10...10 V	-16000...16000 (625 µV)
I/O characteristics, resolution: Voltage output: User range setting	-12000...12000 (319 µV)
I/O characteristics, resolution: Current output: 0...20 mA	0...12000 (1666 nA)
I/O characteristics, resolution: Current output: 4...20 mA	0...12000 (1333 nA)
I/O characteristics, resolution: Current output: User range setting	-12000...12000 (696 nA)
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 25±5 ﾟC	Within ±0.2 %
Accuracy (accuracy relative to maximum value of analog output value): Ambient temperature: 0...55 ﾟC	Within ±0.4 %
D/A conversion speed	Normal output: 80 µs/channel Wave output function: 80 µs/channel Variable conversion characteristics function: 100 µs/channel Variable arithmetic function: 320 µs/2 channels Variable conversion characteristics function + variable arithmetic function: 320 µs/2 channels PID control function: 200 µs/channel
Output short protection	Protected

Common specifications

Isolation method	Between I/O terminals and programmable controller power supply: Photocoupler Between I/O channels: Non-isolation Between external power supply and analog I/O channels: Transformer
Dielectric withstand voltage	Between I/O terminals and programmable controller power supply, between external power supply and analog I/O: 500 V AC rms for 1 minute
Insulation resistance	Between I/O terminals and programmable controller power supply: 500 V DC 10 MΩ or higher
External power supply: Voltage	24 V DC (+20/-15 %, ripple, spike 500 mVp-p or lower)
External power supply: Current	0.12 A (inrush current: 5.0 A, 1000 µs or lower)
External interface	18-point terminal block (M3 screw)
Number of occupied I/O points	16 points (I/O assignment: Intelligent 16 points)
Internal current consumption (5 V DC)	0.17 A
External dimensions: Height	90 mm
External dimensions: Width	28.5 mm
External dimensions: Depth	117 mm
Weight	0.22 kg
