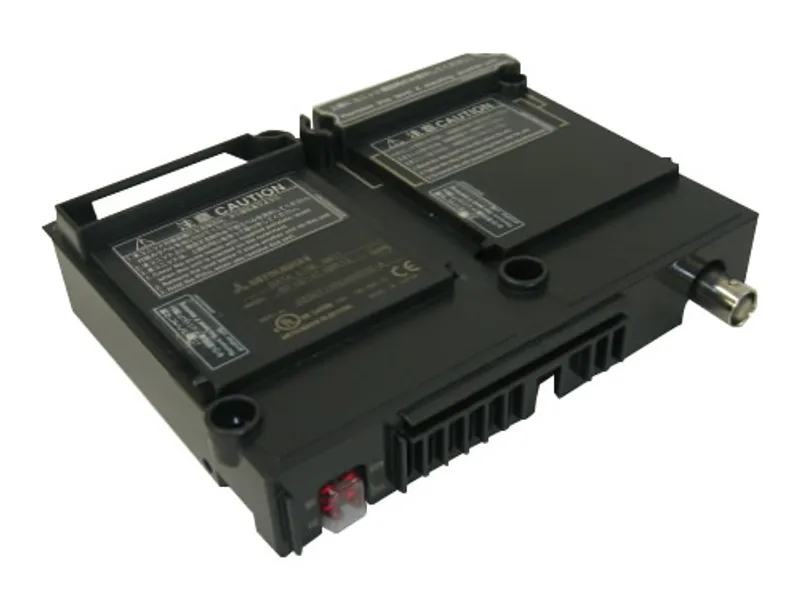

What is the Mitsubishi Electric GT15-J71BR13?
The Mitsubishi Electric GT15-J71BR13 is a communication unit in the GOT HMI. Normal station unit (coaxial bus). Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | GOT HMI |
| Outline | Normal station unit (coaxial bus) |
Specifications
| Model | GT15-J71BR13 |
| Category | Communication units |
| Product name | MELSECNET/H communication unit |
| Series name | GOT2000/GOT1000 |
| Maximum number of link points per network: LX/LY | 8192 points *1 |
| Maximum number of link points per network: LB | 16384 points (8192 points in the MELSECNET/10 mode) *1 |
| Maximum number of link points per network: LW | 16384 points (8192 points in the MELSECNET/10 mode) *1 |
| Maximum number of link points per station | MELSECNET/H mode, MELSECNET/10 mode: { (LY + LB) / 8 + (2 x LW) } ≦ 2000 bytes MELSECNET/H Extended mode: { (LY + LB) / 8 + (2 x LW) } ≦ 35840 bytes |
| Communication speed | 10 Mbps |
| Communication method | Token ring method |
| Synchronous method | Frame synchronous |
| Type of transmission channel | Coaxial single bus |
| Total extension distance | 3C-2V: 300 m (984.3 ft), 5C-2V: 500 m (1640.5 ft) * Repeater module (A6BR10, A6BR10-DC) Maximum expansion is 2.5km (8203 ft) |
| Distance between stations *3 | 3C-2V: 300 m (984.3 ft) 5C-2V: 500 m (1640.5 ft) |
| Accessible network range | Only the MELSECNET/H or MELSECNET/10 network system to which the GOT is connected |
| Maximum number of groups | 0 (No group specification) |
| Number of stations connected to a network | 31 stations |
| RAS functions | Prevention of system down by switching the control station, Loopback in case of error detection or cable disconnection, Link channel check for the host station, Abnormality detection by link special relay, resistor, Various diagnostic functions |
| Transient transmission | N:N communication |
| Connection cable | 3C-3V 5C-2V or equivalent |
| Applicable connectors | BNC-P-3-NiCAu (For 3C-2V) BNC-P-5-NiCAu (For 5C-2V) Equivalent goods (manufactured by DDK Electronics., LTD.) |
| Internal current consumption | 0.77 A |
| Weight | 0.19 kg (0.42 lb) |
| Supported model | GT27, GT25 (Excluding GT2505-VTBD, GT25 wide models, GT2507T-WTSD, GT2506HS-VTBD, and GT2505HS-VTBD.) *5 , GT16 (Excluding Handy GOT.) , GT15 |
| Remarks -1 | When installing an extension unit on the MELSECNET/H communication unit, limit the maximum operating ambient temperature by subtracting 5 degrees from operating ambient temperature of the general specifications. |
| Remarks -2 | Option units manufactured from October 2026 onward will not be covered by the warranty when used with the discontinued GOT1000 series. For the details, please refer to the Production Discontinuation of Main Units and Some Option Units in the GOT1000 Series for Overseas (GOT-A-0095) |
