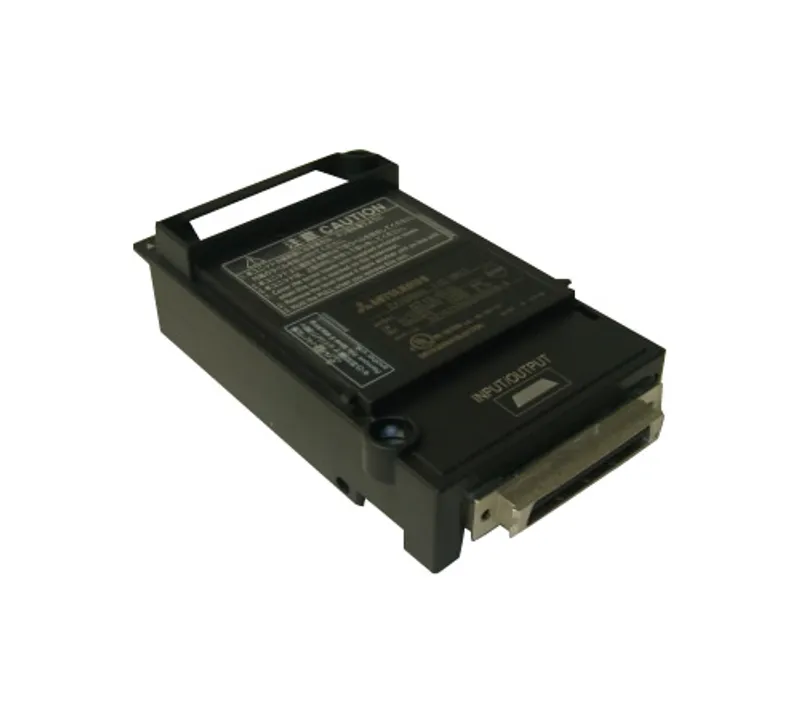

GT15-DIO Mitsubishi GOT HMI Option unit

MPN: GT15-DIO · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi GOT HMI – Option units
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can GT15-DIO be shipped?

GT15-DIO is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GT15-DIO in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GT15-DIO and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT15-DIO, subject to availability and destination.

The Mitsubishi Electric GT15-DIO is a option unit in the GOT HMI. For connecting an external I/O device and an operation panel (positive common input, sink type output). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	GOT HMI
Outline	For connecting an external I/O device and an operation panel (positive common input, sink type output)

Specifications

Model	GT15-DIO
Category	Option units
Product name	External I/O unit
Series name	GOT3000/GOT2000/GOT1000
Common specifications: External connection method	50-pin connector
Common specifications: Applicable wire size	AWG#28 or less
Common specifications: Operation indicator	None
Common specifications: External power supply *1: Voltage	24 V DC (+20%/-15%, ripple ratio: 5% or less)
Common specifications: External power supply *1: Current	1.85 A
Common specifications: Dielectric withstand voltage	350 V AC per minute
Common specifications: Internal current consumption	0.10 A
Common specifications: Weight	0.13 kg (0.29 lb)
Input specifications (Source type): Input method	Dynamic scan
Input specifications (Source type): Number of input points	16 points/128 points (16 x 8) (Output for scan: 8 points)
Input specifications (Source type): Isolation method	Photocoupler
Input specifications (Source type): Rated input voltage	24 V DC (+20%/-15%, ripple ratio: 5% or less)
Input specifications (Source type): Rated input current	Approx. 4 mA
Input specifications (Source type): Input derating	Please refer to the following User's Manual. ・ GOT2000/GOT1000 Series External I/O Unit (Positive Common Input/ Sink Output): IB-0800382
Input specifications (Source type): ON voltage/ON current *2	15 V DC or more/2 mA or more
Input specifications (Source type): OFF voltage/OFF current *2	4 V DC or less/1 mA or less
Input specifications (Source type): Input resistance	Approx. 5.6 KΩ
Input specifications (Source type): Response time *3: ON to OFF	0.4 ms or less (24 V DC)
Input specifications (Source type): Response time *3: OFF to ON	0.4 ms or less (24 V DC)
Input specifications (Source type): Wiring method for common	16 points per common (Common terminal: 0 V (Pin No. 26 to 29))
Input specifications (Source type): Dynamic scan cycle	13.3 ms
Output specifications (Sink type): Output method	Direct output
Output specifications (Sink type): Number of output points	16 points + 1 point (RUN output *4 )
Output specifications (Sink type): Isolation method	Photocoupler
Output specifications (Sink type): Rated load voltage	24 V DC (+20%/-15%)
Output specifications (Sink type): Max. load current	0.1 A/1 point
Output specifications (Sink type): Max. inrush current	0.7 A, 10 ms or less
Output specifications (Sink type): Leakage current at OFF	0.1 mA or less
Output specifications (Sink type): Max. voltage drop at ON	0.2 V DC (Max.) 0.1 A
Output specifications (Sink type): Protection function *5	With overload and overheat
Output specifications (Sink type): Response time *3: ON to OFF	1 ms or less (Resistance load)
Output specifications (Sink type): Response time *3: OFF to ON	1 ms or less
Output specifications (Sink type): Wiring method for common	16 points per common (Common terminal: 24 V (Pin No. 1 to 4))
Output specifications (Sink type): Surge suppressor	Zener diode
Supported model	GT37 7 , GT27, GT2512-S, GT2510-V, GT2508-V, GT2512F-S, GT2510F-V, GT2508F-V 6 , GT1695M-X, GT1685M-S, GT1675M-S/V, GT1675-V, GT1672-V, GT1665M-S/V, GT1662-V, GT1655-V, GT15
Remarks	Option units manufactured from October 2026 onward will not be covered by the warranty when used with the discontinued GOT1000 series. For the details, please refer to the Production Discontinuation of Main Units and Some Option Units in the GOT1000 Series for Overseas (GOT-A-0095)
