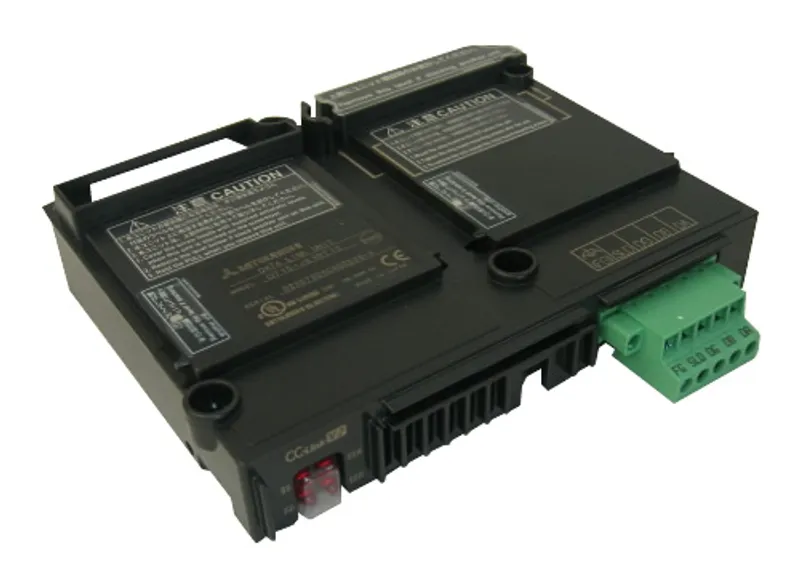

Mitsubishi Electric GT15-J61BT13

Mitsubishi GOT HMI Communication unit

MPN
GT15-J61BT13
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric GT15-J61BT13?

The Mitsubishi Electric GT15-J61BT13 is a communication unit in the GOT HMI. Intelligent device station unit CC-Link Ver. 2 compliant. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesGOT HMI
OutlineIntelligent device station unit CC-Link Ver. 2 compliant

Specifications

ModelGT15-J61BT13
CategoryCommunication units
Product nameCC-Link communication unit
Series nameGOT3000/GOT2000/GOT1000
CC-Link station typeIntelligent device station
Number of occupied stationsMay be selected between 1 and 4.
Maximum number of link points per system: Ver.2 mode: null *18192 points
Maximum number of link points per system: Ver.2 mode2048 points
Maximum number of link points per system: Ver.2 mode: Ver.1 mode: null *12048 points
Maximum number of link points per system: Ver.1 mode2048 points
Maximum number of link points per system: Ver.1 mode: Number of link points per station: For CC-Link Ver.2: Extension cyclic setting: Single256 points
Maximum number of link points per system: Number of link points per station: For CC-Link Ver.2: Extension cyclic setting: Double256 points
Number of link points per station: For CC-Link Ver.2: Extension cyclic setting: QuadrupleRemote I/O (RX, RY) : 32 points Remote register (RWw) : 4 points Remote register (RWr) : 4 points
Number of link points per station: For CC-Link Ver.2: Extension cyclic setting: OctupleRemote I/O (RX, RY) : 32 points Remote register (RWw) : 8 points Remote register (RWr) : 8 points
Number of link points per station: For CC-Link Ver.1Remote I/O (RX, RY) : 64 points Remote register (RWw) : 16 points Remote register (RWr) : 16 points
Number of link points per number of occupied stations: For CC-Link Ver.2: Extension cyclic setting: SingleRemote I/O (RX, RY) : 128 points Remote register (RWw) : 32 points Remote register (RWr) : 32 points
Number of link points per number of occupied stations: For CC-Link Ver.2: Extension cyclic setting: DoubleRemote I/O (RX, RY) : 32 points Remote register (RWw) : 4 points Remote register (RWr) : 4 points
Number of link points per number of occupied stations: For CC-Link Ver.2: Extension cyclic setting: QuadrupleRemote I/O (RX, RY) : 32 points Remote register (RWw) : 4 points Remote register (RWr) : 4 points Remote I/O (RX, RY) : 128 points Remote register (RWw) : 16 points Remote register (RWr) : 16 points
Number of link points per number of occupied stations: For CC-Link Ver.2: Extension cyclic setting: OctupleRemote I/O (RX, RY) : 32 points Remote register (RWw) : 8 points Remote register (RWr) : 8 points Remote I/O (RX, RY) : 224 points Remote register (RWw) : 32 points Remote register (RWr) : 32 points
Number of link points per number of occupied stations: For CC-Link Ver.1Remote I/O (RX, RY) : 64 points Remote register (RWw) : 16 points Remote register (RWr) : 16 points Remote I/O (RX, RY) : 448 points Remote register (RWw) : 64 points Remote register (RWr) : 64 points
Transmission speedRemote I/O (RX, RY) : 128 points Remote register (RWw) : 32 points Remote register (RWr) : 32 points Remote I/O (RX, RY) : 896 points Remote register (RWw) : 128 points Remote register (RWr) : 128 points
Max. transmission distanceRemote I/O (RX, RY) : 32 points Remote register (RWw) : 4 points Remote register (RWr) : 4 points Remote I/O (RX, RY) : 128 points Remote register (RWw) : 16 points Remote register (RWr) : 16 points
Max. number of modules connected156 kbps/625 kbps/2.5 Mbps/5 Mbps/10 Mbps
Connection cableDepends on the transmission speed.
Internal current consumption26 The max. number of modules connected depends on the configuration of the CC-Link system to be used. For more details on the max. number of modules connected, refer to the CC-Link System Master-Local Module User’s Manual.
WeightCC-Link dedicated cable
Specifications of terminal block socket: Screw tightening torgue0.56 A
Specifications of terminal block socket: Recommended driver0.18 kg (0.40 lb)
Supported modelWiring screw: 0.5 to 0.6 N・m Terminal block fixing screw: 0.7 to 0.8 N・m
Remarks -1Flat-blade screwdriver (Blade thickness 0.6 mm, Width 3.5mm)
Remarks -2GT37 *3 , GT27, GT2512-S, GT2510-V, GT2508-V, GT2512F-S, GT2510F-V, GT2508F-V *2 , GT1695M-X, GT1685M-S, GT1675M-S/V, GT1675-V, GT1672-V, GT1665M-S/V, GT1662-V, GT1655-V, GT15

GT15-J61BT13: frequently asked questions

When can GT15-J61BT13 be shipped?

GT15-J61BT13 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GT15-J61BT13 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GT15-J61BT13 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT15-J61BT13, subject to availability and destination.
