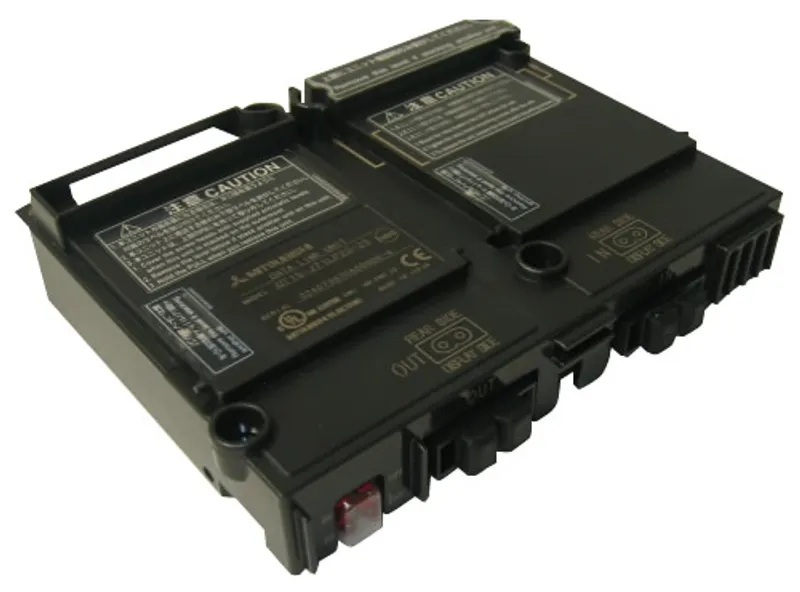

Mitsubishi Electric GT15-J71LP23-25

Mitsubishi GOT HMI Communication unit

MPN
GT15-J71LP23-25
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric GT15-J71LP23-25?

The Mitsubishi Electric GT15-J71LP23-25 is a communication unit in the GOT HMI. Normal station unit (optical loop). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesGOT HMI
OutlineNormal station unit (optical loop)

Specifications

ModelGT15-J71LP23-25
CategoryCommunication units
Product nameMELSECNET/H communication unit
Series nameGOT2000/GOT1000
Maximum number of link points per network: LX/LY8192 points *1
Maximum number of link points per network: LB16384 points (8192 points in the MELSECNET/10 mode) *1
Maximum number of link points per network: LW16384 points (8192 points in the MELSECNET/10 mode) *1
Maximum number of link points per stationMELSECNET/H mode, MELSECNET/10 mode: { (LY + LB) / 8 + (2 x LW) } ≦ 2000 bytes MELSECNET/H Extended mode: { (LY + LB) / 8 + (2 x LW) } ≦ 35840 bytes
Communication speed10 Mbps/25 Mbps *2
Communication methodToken ring method
Synchronous methodFrame synchronous
Type of transmission channelDouble loop (Optical fiber cable)
Total extension distance30 km (98430 ft)
Distance between stations *3SI optical cables: 200 m (656.2 ft) H-PCF optical cables: 400 m (1312.4 ft) Broad-band H-PCF optical cables: 1 km (3281 ft) QSI optical cables: 1 km (3281 ft) SI optical cables: 500 m (1640.5 ft) H-PCF optical cables: 1 km (3281 ft) Broad-band H-PCF optical cables: 1 km (3281 ft) QSI optical cables: 1 km (3281 ft)
Accessible network rangeOnly the MELSECNET/H or MELSECNET/10 network system to which the GOT is connected
Maximum number of groups0 (No group specification)
Number of stations connected to a network63 stations
RAS functionsPrevention of system down by switching the control station, Loopback in case of error detection or cable disconnection, Link channel check for the host station, Abnormality detection by link special relay, resistor, Various diagnostic functions
Transient transmissionN:N communication
Connection cableOptical fiber cable (Arranged by user *4 )
Applicable connectors2-core optical connettor plug (Arranged by user *4 )
Internal current consumption0.56 A
Weight0.18 kg (0.40 lb)
Supported modelGT27, GT25 (Excluding GT2505-VTBD, GT25 wide models, GT2507T-WTSD, GT2506HS-VTBD, and GT2505HS-VTBD.) *5 , GT16 (Excluding Handy GOT.) , GT15
Remarks -1When installing an extension unit on the MELSECNET/H communication unit, limit the maximum operating ambient temperature by subtracting 5 degrees from operating ambient temperature of the general specifications.
Remarks -2Option units manufactured from October 2026 onward will not be covered by the warranty when used with the discontinued GOT1000 series. For the details, please refer to the Production Discontinuation of Main Units and Some Option Units in the GOT1000 Series for Overseas (GOT-A-0095)

GT15-J71LP23-25: frequently asked questions

When can GT15-J71LP23-25 be shipped?

GT15-J71LP23-25 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up GT15-J71LP23-25 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for GT15-J71LP23-25 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT15-J71LP23-25, subject to availability and destination.
