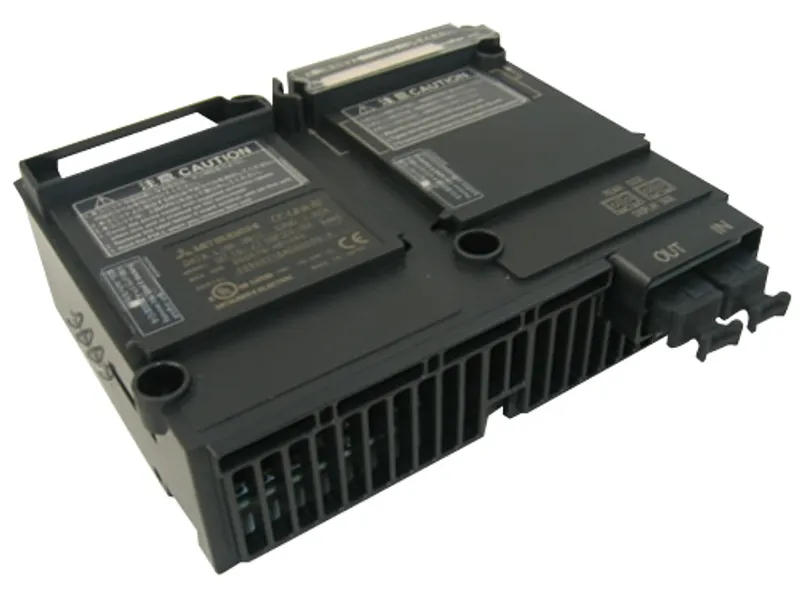

Mitsubishi Electric GT15-J71GP23-SX
Mitsubishi GOT HMI Communication unit
- MPN
- GT15-J71GP23-SX
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric GT15-J71GP23-SX?
The Mitsubishi Electric GT15-J71GP23-SX is a communication unit in the GOT HMI. Normal station unit (optical loop). Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | GOT HMI |
| Outline | Normal station unit (optical loop) |
Specifications
| Model | GT15-J71GP23-SX |
| Category | Communication units |
| Product name | CC-Link IE Controller Network communication unit |
| Series name | GOT3000/GOT2000/GOT1000 |
| CC-Link station type | Normal station |
| Max. link points per network: LB | 32K points (32768 points, 4K bytes) |
| Max. link points per network: LW | 128K points (131072 points, 256K bytes) |
| Max. link points per network: LX | 8K points (8192 points, 1K bytes) |
| Max. link points per network: LY | 8K points (8192 points, 1K bytes) |
| Max. link points per station: LB | 16K points (16384 points, 2K bytes) |
| Max. link points per station: LW | 16K points (16384 points, 32K bytes) |
| Max. link points per station: LX | 8K points (8192 points, 1K bytes) |
| Max. link points per station: LY | 8K points (8192 points, 1K bytes) |
| Transient transmission capacity | Up to 1920 bytes |
| Communication speed | 1 Gbps |
| Communication method | Token ring |
| Number of stations per network | Up to 120 stations (Control station: 1, Normal station: 119) |
| Connection cable | Fiber-optic cable (Multi-mode fiber) *1 * Please refer to the CC-Link IE Controller Network Reference Manual. |
| Overall cable distance | 66000 m (When 120 stations are connected) |
| Station-to-station distance (Max.) | 550 m (Core/Clad = 50/125 (μm)) |
| Max. number of networks | 239 |
| Max. number of groups | 32 |
| Transmission path | Duplex loop |
| Optical fiber specifications: Type | 1000BASE-SX (MMF) fiber-optic cable |
| Optical fiber specifications: Standard | IEC60793-2-10 Type A1a.a (50/125 μm multimde) |
| Optical fiber specifications: Transmission loss (max.) | 3.5 (dB/km) or less (λ=850 nm) |
| Optical fiber specifications: Transmission band (min.) | 500 (MHz・km) or more (λ=850 nm) |
| Connector specifications: Type | Duplex LC connector |
| Connector specifications: Standard | IEC61754-20: Type LC connector |
| Connector specifications: Connection loss | 0.3 (dB) or less |
| Connector specifications: Polished surface | PC (Physical Contact) polishing |
| Internal current consumption | 1.07 A |
| Weight | 0.28 kg (0.62 lb) |
| Supported model | GT37 *3 , GT27, GT2512-S, GT2510-V, GT2508-V, GT2512F-S, GT2510F-V, GT2508F-V *2 , GT1695M-X, GT1685M-S, GT1675M-S/V, GT1675-V, GT1672-V, GT1665M-S/V, GT1662-V, GT1655-V, GT15 |
| Remarks | Option units manufactured from October 2026 onward will not be covered by the warranty when used with the discontinued GOT1000 series. For the details, please refer to the Production Discontinuation of Main Units and Some Option Units in the GOT1000 Series for Overseas (GOT-A-0095) |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
- GOT3000/GOT2000/GOT1000 Series CC-Link IE Controller Network Communication Unit User's Manual (IB-0800412E-L)
- GOT2000 Series User's Manual (Hardware) (SH-081194ENG-AW)
- GOT2000系列 主机使用说明书(硬件篇) (SH-081202CHN-AW)
- GOT2000 Series Connection Manual (Mitsubishi Electric Products) For GT Works3 Version1 (SH-081197ENG-BA)
- GOT2000系列 连接手册(三菱电机机器连接篇) 对应GT Works3 Version1 (SH-081205CHN-BA)
- GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 1) For GT Works3 Version1 (SH-081198ENG-AU)
- GOT2000系列 连接手册(其他公司机器连接篇1) 对应GT Works3 Version1 (SH-081206CHN-AU)
- GOT2000 Series Connection Manual (Non-Mitsubishi Electric Products 2) For GT Works3 Version1 (SH-081199ENG-AQ)
- GOT2000系列 连接手册(其他公司机器连接篇2) 对应GT Works3 Version1 (SH-081207CHN-AP)
- GOT2000 Series Connection Manual (Microcomputers, MODBUS/Fieldbus Products, Peripherals) For GT Works3 Version1 (SH-081200ENG-AS)
GT15-J71GP23-SX: frequently asked questions
When can GT15-J71GP23-SX be shipped?
GT15-J71GP23-SX is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up GT15-J71GP23-SX in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for GT15-J71GP23-SX and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for GT15-J71GP23-SX, subject to availability and destination.
