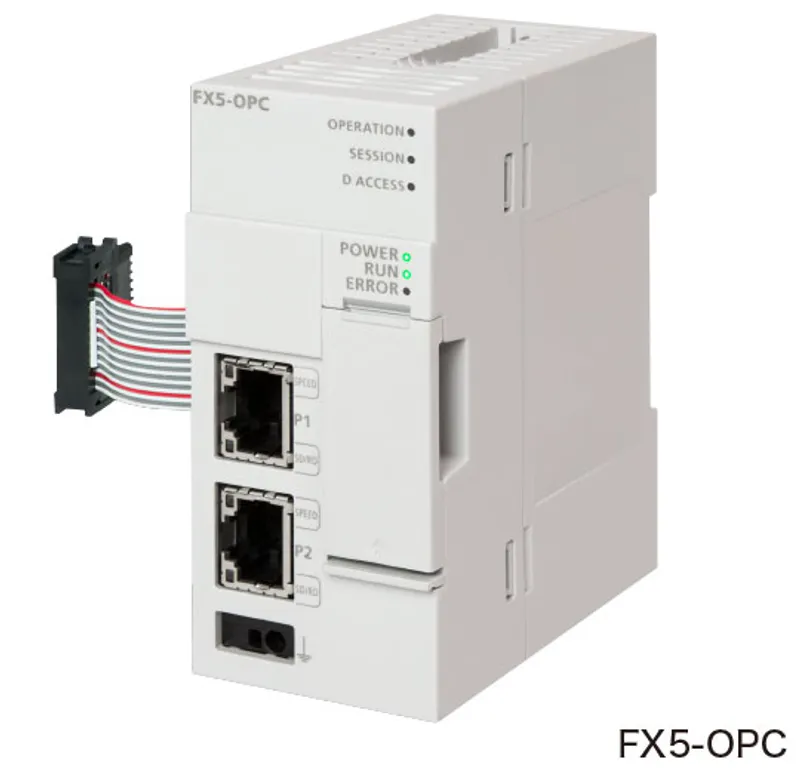

Mitsubishi Electric FX5-OPC

Mitsubishi MELSEC iQ-F Series Network/communication module

MPN
FX5-OPC
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-OPC?

The Mitsubishi Electric FX5-OPC is a network/communication module in the MELSEC iQ-F Series. OPC UA module. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
OutlineOPC UA module

Specifications

Applicable CPU moduleFX5U CPU module: Ver. 1.245 or later FX5UC CPU module*: Ver. 1.245 or later * FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Applicable engineering tool: GX Works3Ver. 1.077F or later
Applicable engineering tool: OPC UA Module Configuration ToolVer. 1.00A or later
Number of occupied I/O points8 points
Mass (weight)Approx. 0.2 kg
Number of connectable modules1 module
Number of ports2
OPC UA server: OPC UA version1.03
OPC UA server: ProfilesMicro Embedded Device Server Profile For details, refer to the MELSEC iQ-F FX5 User's Manual (OPC UA)
OPC UA server: ServicesFor details, refer to the MELSEC iQ-F FX5 User's Manual (OPC UA)
OPC UA server: Address spaceFor details, refer to the MELSEC iQ-F FX5 User's Manual (OPC UA)
OPC UA server: User authenticationUser name and password
OPC UA server: Maximum number of parallel sessions4
OPC UA server: Maximum number of subscriptions per session2
OPC UA server: Maximum number of monitored items per subscription500
OPC UA server: Minimum sampling interval of a monitored item100 ms
OPC UA server: Maximum number of trusted certificates10
OPC UA server: Time informationFor details, refer to the MELSEC iQ-F FX5 User's Manual (OPC UA)
OPC UA server: Network topologyStar topology
Ethernet: Transmission specifications: Data transmission speed100/10 Mbps
Ethernet: Transmission specifications: Communication modeFull-duplex or half-duplex (IEEE802.3x flow control is not supported.)
Ethernet: Transmission specifications: Transmission methodBase band
Ethernet: Transmission specifications: InterfaceRJ45 connector
Ethernet: Transmission specifications: Maximum segment length100 m For maximum segment length (length between hubs), consult the manufacturer of the hub used.
Ethernet: Transmission specifications: Number of cascade connections100BASE-TX: 2 levels maximum 10BASE-T: 4 levels maximum (This number applies when a repeater hub is used. When using a switching hub, check the number of cascaded stages with the manufacturer of the hub to be used.)
Ethernet: HubHubs with 100BASE-TX or 10BASE-T ports can be used. The ports must comply with the IEEE802.3 100BASE-TX or IEEE802.3 10BASE-T standards. (IEEE802.3x flow control is not supported.)
Ethernet: Connection cable100BASE-TX 10BASE-T (A straight/cross cable can be used.)

Power supply specifications

Internal power supply: Power supply voltage24 V DC
Internal power supply: Current consumption110 mA

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all terminals and ground terminal500 V AC for 1 min
Insulation resistance: Between all terminals and ground terminal10 MΩ or higher by 500 V DC insulation resistance tester

FX5-OPC: frequently asked questions

When can FX5-OPC be shipped?

FX5-OPC is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-OPC in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-OPC and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-OPC, subject to availability and destination.
