What is the Mitsubishi Electric FX5-SF-8DI4?

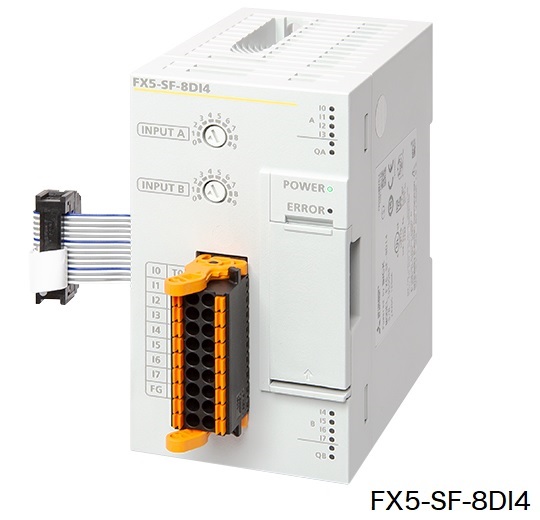

The Mitsubishi Electric FX5-SF-8DI4 is a safety Extension Module in the MELSEC iQ-F Series. Safety input expansion module Safety input: 8 points Spring clamp terminal block type Powered by SICK. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategorySafety Extension Module
OutlineSafety input expansion module Safety input: 8 points Spring clamp terminal block type Powered by SICK

Specifications

Applicable CPU moduleFX5UJ CPU module*1: Ver. 1.010 or later FX5U CPU module*1: Ver. 1.200 or later FX5UC CPU module*1*2: Ver. 1.200 or later *1 Extension modules for general-purpose control cannot be connected after the safety extension module. *2 FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Mass (weight)Approx. 0.25 kg
Number of connectable unitsFX5UJ/FX5U/FX5UC CPU module: Up to 2 modules

Safety Specifications

Safety integrity levelSIL3 (IEC 61508)/SILCL 3 (IEC 62061)
CategoryCategory 4 (DIN EN ISO 13849-1)
Performance levelPL e (DIN EN ISO 13849-1)
PFHd1.5 × 10 -9 to 1.5 × 10 -8
TM (mission time)20 years (EN ISO 13849-1)

Performance Specifications

Safety inputs: No. of input points8 points
Safety inputs: Input voltage (ON)13 V DC to 30 V DC
Safety inputs: Input voltage (OFF)-5 V DC to 5 V DC
Safety inputs: Input current (ON)3 mA (2.4 mA to 3.8 mA)
Safety inputs: Input current (OFF)-2.5 mA to 2.1 mA
Safety inputs: Indication of input operationLED is lit when input is on
Safety inputs: Minimum switch-off timeProgram 1, 2, 3, 4, 5 and 8: 24 ms Program 6, 7: 4 ms
Safety inputs: Synchronous time monitoringProgram 3, 5: 1500 ms
Safety inputs: Power-up time70 ms
Test outputs: No. of output points8 points
Test outputs: Output methodSource output, short-circuit protection, cross-circuit detection* * A cross-circuit detection is performed only in the module.
Test outputs: Output voltage16 V DC to 30 V DC
Test outputs: Output current30 mA
Test outputs: Test cycle40 ms
Response timeProgram 1, 2, 3, 4, 5 and 8: 33 ms Program 6, 7: 13 ms

Power supply specifications

Internal power supply24 V DC (+20%, -15%) 125 mA

The general specifications other than below are the same as those for the CPU module.

Electromagnetic Compatibility (EMC)EN 61000-6-2, EN 61131-2, DIN EN 61326-3-1, EN 55011 (class A)
Dielectric withstand voltage: Between input terminal and ground terminal of CPU module500 V AC for one minute
Insulation resistance: Between input terminal and ground terminal of CPU module10 MΩ or higher by 500 V DC insulation resistance tester.
