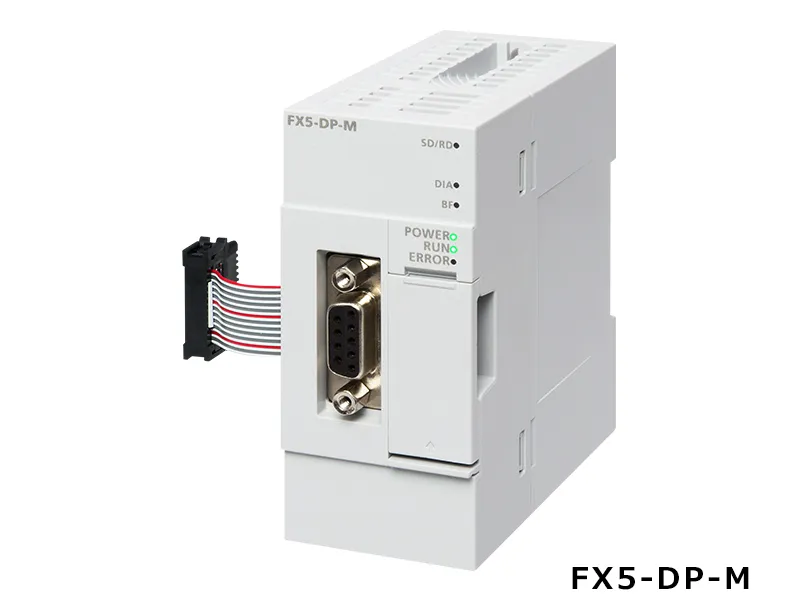

Mitsubishi Electric FX5-DP-M

Mitsubishi MELSEC iQ-F Series Network/communication module

MPN
FX5-DP-M
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-DP-M?

The Mitsubishi Electric FX5-DP-M is a network/communication module in the MELSEC iQ-F Series. PROFIBUS-DP master module. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
OutlinePROFIBUS-DP master module

Specifications

Applicable CPU moduleFX5UJ CPU module: From the first FX5U CPU module: Ver. 1.110 or later FX5UC CPU module*: Ver. 1.110 or later * FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Applicable engineering tool: GX Works3FX5UJ CPU module: Ver. 1.060N or later FX5U CPU module: Ver. 1.050C or later FX5UC CPU module: Ver. 1.050C or later
Applicable engineering tool: PROFIBUS Configuration ToolFX5UJ CPU module: Ver. 1.03D or later FX5U CPU module: Ver. 1.02C or later FX5UC CPU module: Ver. 1.02C or later
Number of occupied I/O points8 points
Mass (weight)Approx. 0.2 kg
Number of connectable modules1 module
Data link method• Between DP-Masters: Token passing • Between DP-Master and DP-Slave: Polling
Encoding methodNRZ
Transmission speed9.6 kbps, 19.2 kbps, 93.75 kbps, 187.5 kbps, 500 kbps, 1.5 Mbps, 3 Mbps, 6 Mbps, 12 Mbps Transmission speed accuracy is within ±0.2% (compliant with IEC61158-2).
Transmission data: Input dataMax. of 2048 bytes (Max. of 244 bytes per DP-Slave)
Transmission data: Output dataMax. of 2048 bytes (Max. of 244 bytes per DP-Slave)
PROFIBUS-DP station typeDP-Master (Class 1)
No. of connectable modules (per segment)32 per segment (including repeaters)
No. of connectable nodes (No. of repeaters)32, 62 (1), 92 (2), 122 (3), 126 (4)
Max. No. of repeaters (Between DP-Master and DP-Slave)3
Max. No. of DP-Slaves64
Network configurationBus topology (or tree topology when repeaters are used)
Electrical standard and characteristicsCompliant with EIA-RS485
MediumShielded twisted pair cable

Power supply specifications

Internal power supply: Power supply voltage24 V DC
Internal power supply: Current consumption150 mA

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all terminals and frame of communication connector500 V AC for one minute
Insulation resistance: Between all terminals and frame of communication connector10 MΩ or higher by 500 V DC insulation resistance tester
