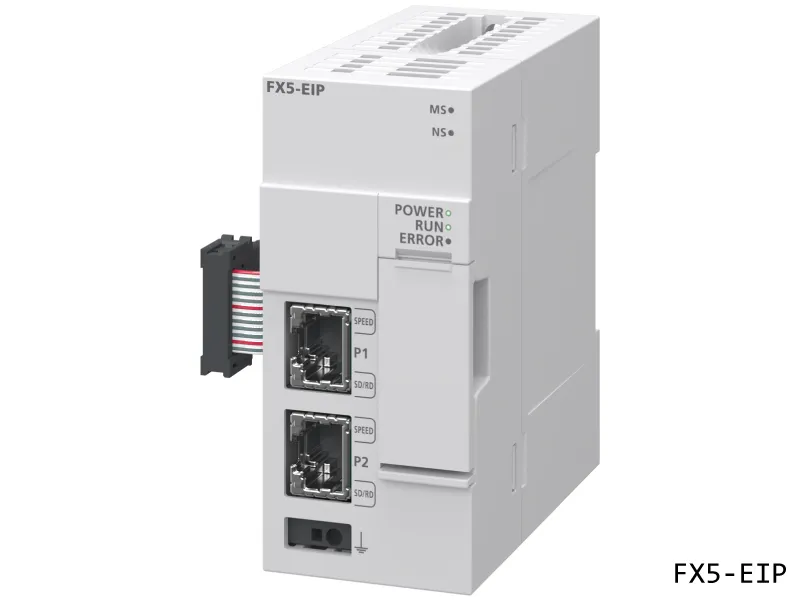

What is the Mitsubishi Electric FX5-EIP?

The Mitsubishi Electric FX5-EIP is a network/communication module in the MELSEC iQ-F Series. EtherNet/IP™ Supports system, scanner EtherNet/IP communication functions: Class1 instance communications, Class1 tag communications, Class3 message communications, Class3 tag communications, UCMM message communications, UCMM tag communications. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
OutlineEtherNet/IP™ Supports system, scanner EtherNet/IP communication functions: Class1 instance communications, Class1 tag communications, Class3 message communications, Class3 tag communications, UCMM message communications, UCMM tag communications

Specifications

Applicable ControllerMX Controller MX-F model *13
Applicable CPU moduleFX5UJ CPU module: Ver. 1.100 or later FX5U CPU module: Ver. 1.340 or later FX5UC CPU module *12 : Ver. 1.340 or later
Applicable engineering tool: GX Works3FX5UJ CPU module: Ver. 1.120A or later FX5U CPU module: Ver. 1.120A or later FX5UC CPU module: Ver. 1.120A or later
Number of occupied I/O points8 points
Mass (weight)Approx. 0.2 kg
Number of connectable modules1 module
Number of ports2 *11
EtherNet/IP communications *1: Class 1 communications: Communication formatInstance communications Tag communications
EtherNet/IP communications *1: Class 1 communications: Number of connections *264 128
EtherNet/IP communications *1: Class 1 communications: Communication data size *264: 1444 bytes (per connection) *3 128: 600 bytes (per connection) *3
EtherNet/IP communications *1: Class 1 communications: Connection typePoint-to-point, multicast
EtherNet/IP communications *1: Class 1 communications: RPI (communication cycle)2 to 60000 ms
EtherNet/IP communications *1: Class 1 communications: PPS (communication processing performance)7000pps (at 10 bytes) 5000pps (at 600 bytes) 2000pps (at 1444 bytes)
EtherNet/IP communications *1: Class 3 communications: Communication formatInstance communications Tag communications
EtherNet/IP communications *1: Class 3 communications: Number of connections *2Server: 32 (number of simultaneous executions) Client: 64, 128
EtherNet/IP communications *1: Class 3 communications: Communication data size *264 Instance communications: 1404 bytes (per connection) Tag communications: 496 bytes (per connection) 128 Instance communications: 600 bytes (per connection) Tag communications: 496 bytes (per connection)
EtherNet/IP communications *1: Class 3 communications: Connection typePoint-to-point
EtherNet/IP communications *1: UCMM communications: Communication formatInstance communications Tag communications
EtherNet/IP communications *1: UCMM communications: Number of connections (number of simultaneous executions)Server: 32 Client: 32
EtherNet/IP communications *1: UCMM communications: Communication data sizeInstance communications: 504 bytes (including header) Tag communications: 498 bytes
EtherNet/IP communications *1: UCMM communications: Connection typePoint-to-point
EtherNet/IP communications *1: Transmission specifications: Data transmission speed100 Mbps
EtherNet/IP communications *1: Transmission specifications: Communication modeFull-duplex
EtherNet/IP communications *1: Transmission specifications: Transmission methodBase band
EtherNet/IP communications *1: Transmission specifications: InterfaceRJ45 connector
EtherNet/IP communications *1: Transmission specifications: IP versionIPv4 is supported.
EtherNet/IP communications *1: Transmission specifications: Maximum segment length100 m (length between hub and node) *4
EtherNet/IP communications *1: Transmission specifications: Number of cascade connections100BASE-TX: 2 levels maximum *5
EtherNet/IP communications *1: Network topologyLine topology, star topology (The mixture of line topology and star topology is also possible.)
EtherNet/IP communications *1: Hub *6Hubs with 100BASE-TX ports *7 can be used.
EtherNet/IP communications *1: Connection cable *8100BASE-TX: Ethernet cable of category 5 or higher (STP cable)
General-purpose Ethernet communication: Transmission specifications: Data transmission speed100/10 Mbps
General-purpose Ethernet communication: Transmission specifications: Communication modeFull-duplex or half-duplex *6
General-purpose Ethernet communication: Transmission specifications: Transmission methodBase band
General-purpose Ethernet communication: Transmission specifications: InterfaceRJ45 connector
General-purpose Ethernet communication: Transmission specifications: Maximum segment length100 m (length between hub and node) *4
General-purpose Ethernet communication: Transmission specifications: Number of cascade connections100BASE-TX: 2 levels maximum *5 10BASE-T: 4 levels maximum *5
General-purpose Ethernet communication: Protocol typeMELSOFT connection, SLMP client (3E frames), SLMP server (3E/1E frames), Socket communication
General-purpose Ethernet communication: Number of connectionsTotal of 32 connections *9 (Up to 32 external devices can access one FX5-EIP module at the same time.)
General-purpose Ethernet communication: Hub *6Hubs with 100BASE-TX or 10BASE-T ports *10 can be used.
General-purpose Ethernet communication: Connection cable *8100BASE-TX: Ethernet cable of category 5 or higher (STP cable) 10BASE-T: Ethernet cable of category 3 or higher (STP/UTP cable)

Power supply specifications

Internal power supply: Power supply voltage24 V DC
Internal power supply: Current consumption110 mA

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all terminals and ground terminal500 V AC for one minute
Insulation resistance: Between all terminals and ground terminal10 MΩ or higher by 500 V DC insulation resistance tester

FX5-EIP: frequently asked questions

When can FX5-EIP be shipped?

FX5-EIP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-EIP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-EIP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-EIP, subject to availability and destination.
