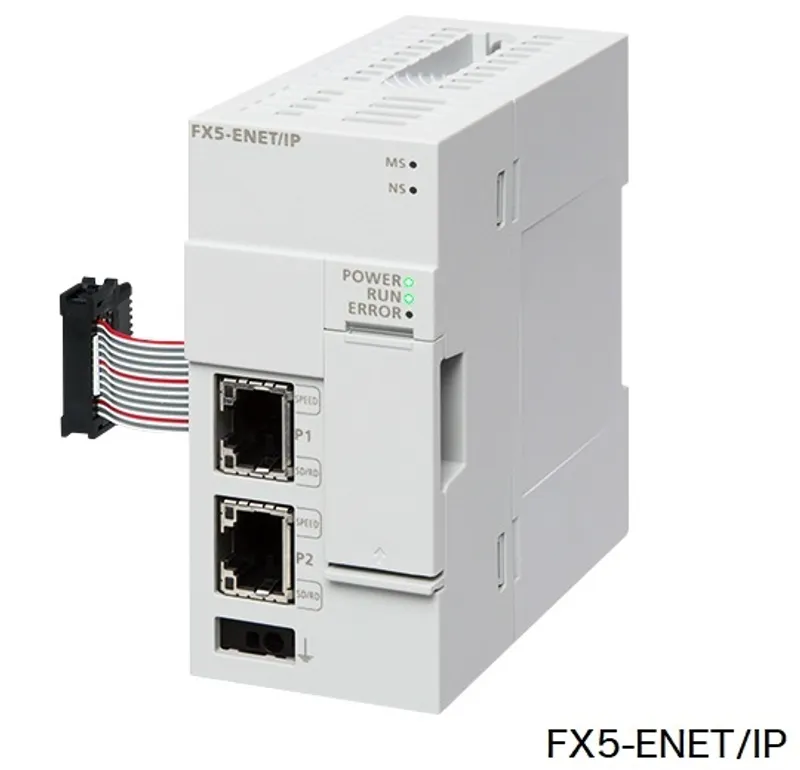

Mitsubishi Electric FX5-ENET/IP

Mitsubishi MELSEC iQ-F Series Network/communication module

MPN
FX5-ENET/IP
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-ENET/IP?

The Mitsubishi Electric FX5-ENET/IP is a network/communication module in the MELSEC iQ-F Series. Ethernet module EtherNet/IP™ Supports system, scanner EtherNet/IP communication functions: Class1 instance communications, Class3 message communications, UCMM message communications *Please note that, starting in January 2026, version-upgrade support related to functional enhancements or improvements for the EtherNet/IP communication section and the EtherNet/IP Configuration Tool for the FX5-ENET/IP will no longer be provided. Mitsubishi Electric has announced its discontinuation (2026/12 To be end of order) — plan spares now; PartnerPLC also sources it on the surplus market after the end of order. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
Sales status2026/12 To be end of order (Mitsubishi Electric)
OutlineEthernet module EtherNet/IP™ Supports system, scanner EtherNet/IP communication functions: Class1 instance communications, Class3 message communications, UCMM message communications *Please note that, starting in January 2026, version-upgrade support related to functional enhancements or improvements for the EtherNet/IP communication section and the EtherNet/IP Configuration Tool for the FX5-ENET/IP will no longer be provided.

Specifications

Applicable ControllerMX Controller MX-F model *1
Applicable CPU moduleFX5UJ CPU module: From the first FX5U CPU module: Ver. 1.110 or later FX5UC CPU module*: Ver. 1.110 or later * FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Applicable engineering tool: GX Works3FX5UJ CPU module: Ver. 1.060N or later FX5U CPU module: Ver. 1.050C or later FX5UC CPU module: Ver. 1.050C or later
Applicable engineering tool: EtherNet/IP Configuration Tool for FX5-ENET/IPVer. 1.00A or later
Number of occupied I/O points8 points
Mass (weight)Approx. 0.2 kg
Number of connectable modules1 module
Number of ports2 Since the IP address is shared by two ports, only one address can be set.
EtherNet/IP communications: Class 1 communications: Communication formatStandard EtherNet/IP
EtherNet/IP communications: Class 1 communications: Number of connections32
EtherNet/IP communications: Class 1 communications: Communication data size1444 bytes (per connection)
EtherNet/IP communications: Class 1 communications: Connection typePoint-to-point, multicast
EtherNet/IP communications: Class 1 communications: RPI (communication cycle)2 to 60000 ms
EtherNet/IP communications: Class 1 communications: PPS (communication processing performance)3000 pps (case of 128 bytes)
EtherNet/IP communications: Class 3 communications: Communication formatStandard EtherNet/IP
EtherNet/IP communications: Class 3 communications: Number of connections32 Class3 communication supports the server functions. The total number of connections for Class 3 communications and UCMM communications is 32.
EtherNet/IP communications: Class 3 communications: Connection typePoint-to-point
EtherNet/IP communications: UCMM communications: Communication formatStandard EtherNet/IP
EtherNet/IP communications: UCMM communications: Number of connections (number of simultaneous executions)32 The total number of connections for Class 3 communications and UCMM communications is 32
EtherNet/IP communications: UCMM communications: Communication data size1414 bytes This size is the maximum size which can be specified to 'Data length' of Class1 communication input data area of the request command during the client operation. During the sever operation, since the FX5-ENET/IP automatically responds according to the request command received from the client, the maximum size is not prescribed.
EtherNet/IP communications: UCMM communications: Connection typePoint-to-point
EtherNet/IP communications: Transmission specifications: Data transmission speed100 Mbps
EtherNet/IP communications: Transmission specifications: Communication modeFull-duplex
EtherNet/IP communications: Transmission specifications: Transmission methodBase band
EtherNet/IP communications: Transmission specifications: InterfaceRJ45 connector
EtherNet/IP communications: Transmission specifications: IP versionIPv4 is supported.
EtherNet/IP communications: Transmission specifications: Maximum segment length100 m (length between hub and node) For maximum segment length (length between hubs), consult the manufacturer of the hub used.
EtherNet/IP communications: Transmission specifications: Number of cascade connections100BASE-TX: 2 levels maximum This number applies when a repeater hub is used. When using a switching hub, check the number of cascaded stages with the manufacturer of the hub to be used.
EtherNet/IP communications: Network topologyStar topology, line topology
EtherNet/IP communications: HubHubs with 100BASE-TX ports* can be used. IEEE802.3x flow control is not supported. *The ports must comply with the IEEE802.3 100BASE-TX standards.
EtherNet/IP communications: Connection cable100BASE-TX: Ethernet cable of category 5 or higher (STP cable) A straight/cross cable can be used.
General-purpose Ethernet communication: Transmission specifications: Data transmission speed100/10 Mbps
General-purpose Ethernet communication: Transmission specifications: Communication modeFull-duplex or half-duplex (IEEE802.3x flow control is not supported.)
General-purpose Ethernet communication: Transmission specifications: Transmission methodBase band
General-purpose Ethernet communication: Transmission specifications: InterfaceRJ45 connector
General-purpose Ethernet communication: Transmission specifications: Maximum segment length100 m (length between hub and node) For maximum segment length (length between hubs), consult the manufacturer of the hub used.
General-purpose Ethernet communication: Transmission specifications: Number of cascade connections100BASE-TX: 2 levels maximum 10BASE-T: 4 levels maximum This number applies when a repeater hub is used. When using a switching hub, check the number of cascaded stages with the manufacturer of the hub to be used.
General-purpose Ethernet communication: Protocol typeMELSOFT connection, SLMP server (3E/1E frames), Simple CPU communication, BACnet/IP, Socket communication* *When each protocol is used, the version applicable to each of the CPU module, FX5-ENET/IP and software is necessary. For details, refer to the MELSEC iQ-F FX5-ENET/IP User's Manual.
General-purpose Ethernet communication: Number of connectionsTotal of 32 connections (Up to 32 external devices can access one FX5-ENET/IP module at the same time.)
General-purpose Ethernet communication: HubHubs with 100BASE-TX or 10BASE-T ports* can be used. IEEE802.3x flow control is not supported. *The ports must comply with the IEEE802.3 100BASE-TX or IEEE802.3 10BASE-T standards.
General-purpose Ethernet communication: Connection cable100BASE-TX: Ethernet cable of category 5 or higher (STP cable) 10BASE-T: Ethernet cable of category 3 or higher (STP/UTP cable) A straight/cross cable can be used.

Power supply specifications

Internal power supply: Power supply voltage24 V DC
Internal power supply: Current consumption110 mA

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all terminals and ground terminal500 V AC for one minute
Insulation resistance: Between all terminals and ground terminal10 MΩ or higher by 500 V DC insulation resistance tester

FX5-ENET/IP: frequently asked questions

When can FX5-ENET/IP be shipped?

FX5-ENET/IP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-ENET/IP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-ENET/IP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-ENET/IP, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric FX5-CNV-IFC – Mitsubishi MELSEC iQ-F Series Option
Mitsubishi Electric
FX5-CNV-IFC

Mitsubishi MELSEC iQ-F Series Option

Mitsubishi Electric FX5-DP-M – Mitsubishi MELSEC iQ-F Series Network/communication module
Mitsubishi Electric
FX5-DP-M

Mitsubishi MELSEC iQ-F Series Network/communication module

Mitsubishi Electric FX5-EIP – Mitsubishi MELSEC iQ-F Series Network/communication module
Mitsubishi Electric
FX5-EIP

Mitsubishi MELSEC iQ-F Series Network/communication module

Mitsubishi Electric FX5-ENET – Mitsubishi MELSEC iQ-F Series Network/communication module
Mitsubishi Electric
FX5-ENET

Mitsubishi MELSEC iQ-F Series Network/communication module

Mitsubishi Electric FX5-OPC – Mitsubishi MELSEC iQ-F Series Network/communication module
Mitsubishi Electric
FX5-OPC

Mitsubishi MELSEC iQ-F Series Network/communication module

Mitsubishi Electric FX5-SDCD – Mitsubishi MELSEC iQ-F Series Option
Mitsubishi Electric
FX5-SDCD

Mitsubishi MELSEC iQ-F Series Option

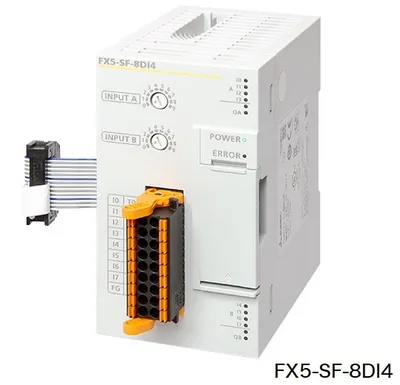

Mitsubishi Electric FX5-SF-8DI4 – Mitsubishi MELSEC iQ-F Series Safety Extension Module
Mitsubishi Electric
FX5-SF-8DI4

Mitsubishi MELSEC iQ-F Series Safety Extension Module

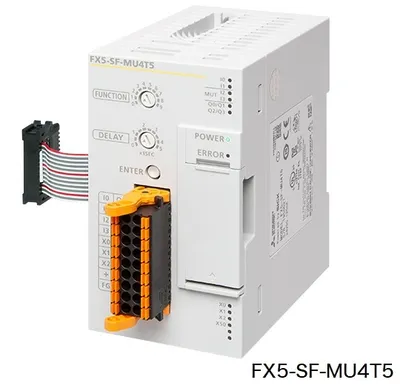

Mitsubishi Electric FX5-SF-MU4T5 – Mitsubishi MELSEC iQ-F Series Safety Extension Module
