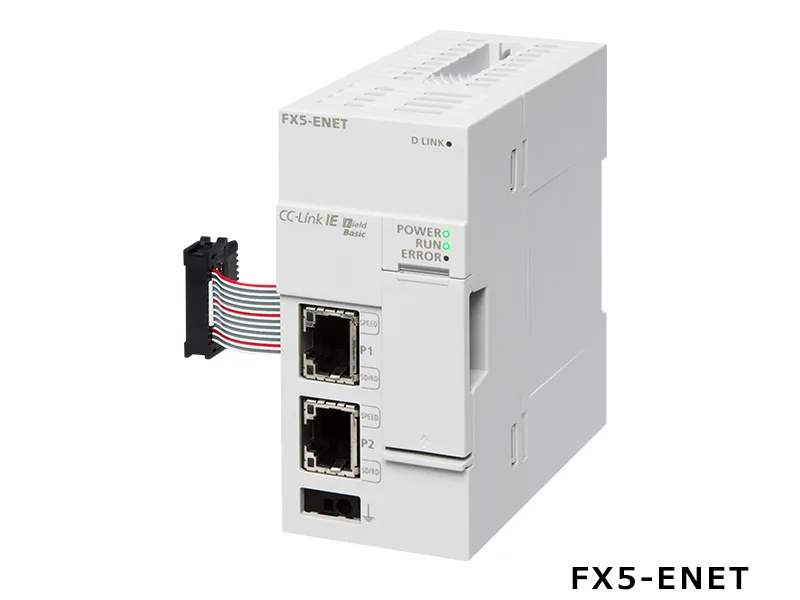

FX5-ENET Mitsubishi MELSEC iQ-F Series Network/communication module

MPN: FX5-ENET · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – Network/Communication Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-ENET be shipped?

FX5-ENET is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-ENET in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-ENET and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-ENET, subject to availability and destination.

The Mitsubishi Electric FX5-ENET is a network/communication module in the MELSEC iQ-F Series. Ethernet module. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	Network/communication module
Outline	Ethernet module

Specifications

Applicable Controller	MX Controller MX-F model *1
Applicable CPU module	FX5UJ CPU module: From the first FX5U CPU module: Ver. 1.110 or later FX5UC CPU module: Ver. 1.110 or later FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Applicable engineering tool: GX Works3	FX5UJ CPU module: Ver. 1.060N or later FX5U CPU module: Ver. 1.050C or later FX5UC CPU module: Ver. 1.050C or later
Number of occupied I/O points	8 points
Mass (weight)	Approx. 0.2 kg
Number of connectable modules	1 module
Number of ports	2 (Since the IP address is shared by two ports, only one address can be set.)
CC-Link IE Field Network Basic: Station type	Manager station
CC-Link IE Field Network Basic: Maximum number of connectable stations	32 Maximum number of connected remote stations that (manager station) can manage.
CC-Link IE Field Network Basic: Number of stations occupied by a remote station	1 to 4
CC-Link IE Field Network Basic: Maximum number of link points per network	RX: 2048 RY: 2048 RWr: 1024 RWw: 1024
CC-Link IE Field Network Basic: Maximum number of link points per station: Manager station	RX: 2048 RY: 2048 RWr: 1024 RWw: 1024
CC-Link IE Field Network Basic: Maximum number of link points per station: Remote station	RX: 64/128/192/256 RY: 64/128/192/256 RWr: 32/64/96/128 RWw: 32/64/96/128 Value for 1-station occupation, 2-station occupation, 3-station occupation, or 4-station occupation.
CC-Link IE Field Network Basic: UDP port number used in the cyclic transmission	61450
CC-Link IE Field Network Basic: UDP port number used in the automatic detection of connected device	Manager station: An unused port number is assigned automatically. Remote station: 61451
CC-Link IE Field Network Basic: Transmission specifications: Data transmission speed	100 Mbps
CC-Link IE Field Network Basic: Transmission specifications: Maximum station-to-station distance	100 m
CC-Link IE Field Network Basic: Transmission specifications: Overall cable distance	Depends on the system configuration.
CC-Link IE Field Network Basic: Transmission specifications: Number of cascade connections	100BASE-TX: For the number of the connectable stages when using a switching hub, check with the manufacturer of the switching hub used.
CC-Link IE Field Network Basic: Network topology	Star topology
CC-Link IE Field Network Basic: Hub	Hubs with 100BASE-TX ports can be used. The ports must comply with the IEEE802.3 100BASE-TX standards (IEEE802.3x flow control is not supported.)
CC-Link IE Field Network Basic: Connection cable	100BASE-TX (A straight/cross cable can be used.
General-purpose Ethernet communication: Transmission specifications: Data transmission speed	100/10 Mbps
General-purpose Ethernet communication: Transmission specifications: Communication mode	Full-duplex or half-duplex (IEEE802.3x flow control is not supported.)
General-purpose Ethernet communication: Transmission specifications: Transmission method	Base band
General-purpose Ethernet communication: Transmission specifications: Maximum segment length	100 m (length between hub and node)* * For maximum segment length (length between hubs), consult the manufacturer of the hub used.
General-purpose Ethernet communication: Transmission specifications: Number of cascade connections	100BASE-TX: 2 levels maximum 10BASE-T: 4 levels maximum (This number applies when a repeater hub is used. When using a switching hub, check the number of cascaded stages with the manufacturer of the hub to be used.)
General-purpose Ethernet communication: Protocol type	MELSOFT connection, SLMP server (3E/1E frames), Simple CPU communication, BACnet/IP, Socket communication, MQTT, SMTP client1 2 1 When each protocol is used, the version applicable to each of the CPU module, FX5-ENET and software is necessary. For details, refer to the MELSEC iQ-F FX5-ENET User's Manual. 2 MQTT and SMTP client function are supported by serial No.234**** and above.
General-purpose Ethernet communication: Number of connections	Total of 32 connections (Up to 32 external devices can access one FX5-ENET module at the same time.)
General-purpose Ethernet communication: Hub	Hubs with 100BASE-TX or 10BASE-T ports can be used. The ports must comply with the IEEE802.3 100BASE-TX or IEEE802.3 10BASE-T standards. (IEEE802.3x flow control is not supported.)
General-purpose Ethernet communication: Connection cable	100BASE-TX 10BASE-T (A straight/cross cable can be used.)

Power supply specifications

Internal power supply: Power supply voltage	24 V DC
Internal power supply: Current consumption	110 mA

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between all terminals and ground terminal	500 V AC for one minute
Insulation resistance: Between all terminals and ground terminal	10 MΩ or higher by 500 V DC insulation resistance tester

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-F FX5-ENET Hardware Manual (IB-0800596)	PDF · 0.28MB
MELSEC iQ-F FX5 BACnet Reference Manual (SH-082218ENG-E)	PDF · 2.66MB
MELSEC iQ-F FX5S/FX5UJ/FX5U/FX5UC User's Manual (Hardware) (SH-082452ENG-Q)	PDF · 7.58MB
MELSEC iQ-F FX5 Programming Manual (Instructions, Standard Functions/Function Blocks) (JY997D55801-AB)	PDF · 12.39MB
MELSEC iQ-F FX5 Ethernet Module User's Manual (SH-082026ENG-J)	PDF · 2.94MB
MELSEC iQ-F FX5 User's Manual (Communication) (SH-082625ENG-J)	PDF · 15.18MB
MELSEC iQ-F FX5 Ethernet, EtherNet/IP, CC-Link IE Function Block Reference (JY997D64901-S)	PDF · 3.51MB
Certificate Configuration Tool for FX5-ENET Installation Instructions (IB-0800681)	PDF · 0.26MB
