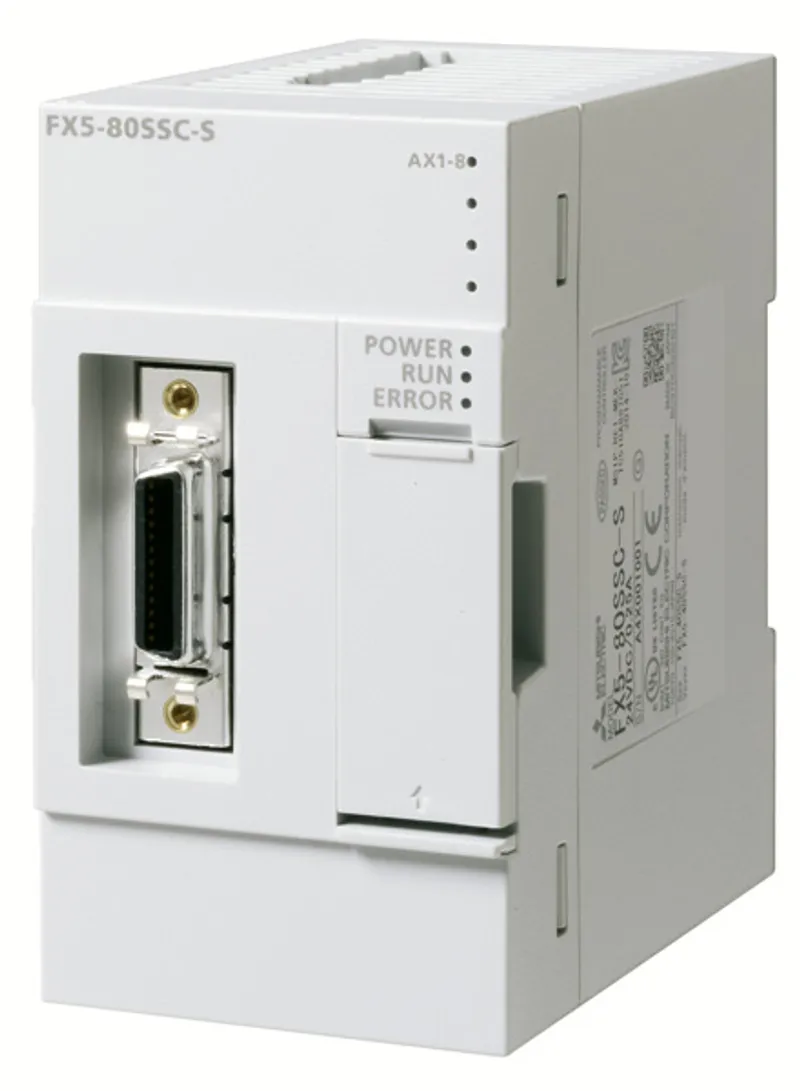

FX5-80SSC-S Mitsubishi MELSEC iQ-F Series Motion/positioning module

MPN: FX5-80SSC-S · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – Motion/Positioning Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-80SSC-S be shipped?

FX5-80SSC-S is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-80SSC-S in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-80SSC-S and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-80SSC-S, subject to availability and destination.

The Mitsubishi Electric FX5-80SSC-S is a motion/positioning module in the MELSEC iQ-F Series. Maximum number of control axis: 8 axes, SSCNET III/H connection. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	Motion/positioning module
Outline	Maximum number of control axis: 8 axes, SSCNET III/H connection

Control specifications

Number of control axes	Up to 8 axes
Operation cycle (operation cycle settings) *1	0.888 ms, 1.777 ms
Interpolation function	Linear interpolation (up to 4 axes), 2-axis circular interpolation
Control method	Positioning control, speed control, speed-torque control, speed-position switching control, fixed-pitch feed, advanced synchronous control, cam control, continuous path control, position-speed switching control
Acceleration/deceleration processing	Trapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Compensation function	Backlash compensation, electronic gear, near pass function
Synchronous control	Synchronous encoder input, command generation axis, cam, phase compensation, cam auto-generation
Control unit	mm, inch, degree, pulse
Positioning control method	Motion profile table
Number of positioning data	600 data (positioning data No. 1 to 600)/axis (Can be set with MELSOFT GX Works3 or a sequence program.)
Backup	Parameters, positioning data, and block start data can be saved on flash ROM (batteryless backup)
Home position return	Proximity dog method, count method 1, count method 2, data set method, scale home position signal detection method, driver home position return *2 (fast home position return control, home position return retry function, and home position shift function provided)
Positioning control	Linear interpolation control (up to 4 axes) *3 , fixed-pitch feed control (up to 4 axes), 2-axis circular interpolation (auxiliary point-specified, central point-specified), speed control (up to 4 axes), speed-position switching control (INC mode, ABS mode), position-speed switching control (INC mode), current value change, NOP instruction, JUMP instruction, LOOP, LEND, block start, condition star
Manual control	JOG operation, inching operation, manual pulse generator operation (up to 1 module)
Speed-torque control	Speed control not including position loop, torque control, continuous operation to torque control
Absolute position system	Provided (Made compatible by setting battery to servo amplifier.)
Synchronous encoder operation function	Possible to connect 4 modules (Total of the internal interface (incremental 1 channel), via PLC CPU interface, and servo amplifier interface)
Speed limit	Speed limit value, JOG speed limit value
Torque limit function	Torque limit value same setting, torque limit value individual setting
Forced stop	Valid/invalid setting
Software stroke limit function	Movable range check with feed current value or with machine feed value
Hardware stroke limit function	Provided
Speed change	Provided
Override	1 to 300 %
Acceleration/deceleration processing change	Acceleration/deceleration time
Torque limit value change	Provided
Target position change function	Speed to a target position address and a target position is changeable.
M-code output function	Provided
Step function	Deceleration unit step, data No. unit step
Skip function	Via a CPU or an external command signal
Teaching function	Provided
Parameter initialization function	Provided
External input signal setting function	Via a CPU or a servo amplifier
Amplifier-less operation function	Provided
Mark detection function	Continuous detection mode, specified number of detections mode, ring buffer mode
Mark detection function: Mark detection signal	Up to 4 points
Mark detection function: Mark detection setting	16 settings
Optional data monitor function	Up to 4 points/axis
Functional safety	DI/O connection of the servo amplifier
Driver communication function	Provided
Connect/disconnect function of SSCNET communication	Provided
Digital oscilloscope function	Bit data: 16 channels, word data: 16 channels *4

Module specifications

Number of control axes	Up to 8 axes
Servo amplifier connection method	SSCNET III/H
Maximum distance between stations [m]	SSCNET III/H: 100
24 V DC external current consumption [A]	0.25
Mass [kg]	0.30
Exterior dimensions [mm]	90.0 (H) x 50.0 (W) x 83.0 (D)

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-F FX5 Motion Module/Simple Motion Module User's Manual (Startup) (IB-0300251ENG-M)	PDF · 4.06MB
MELSEC iQ-F FX5 Motion Module/Simple Motion Module User's Manual (Application) (IB-0300253ENG-P)	PDF · 14.97MB
MELSEC iQ-F FX5 Motion Module/Simple Motion Module User's Manual (Advanced Synchronous Control) (IB-0300255ENG-N)	PDF · 3.27MB
MELSEC iQ-F FX5 Motion Module/Simple Motion Module Function Block Reference (BCN-B62005-719-D)	PDF · 0.87MB
MELSEC iQ-F FX5 Simple Motion Module Hardware Manual (BCN-B62008-337E-J)	PDF · 0.36MB
