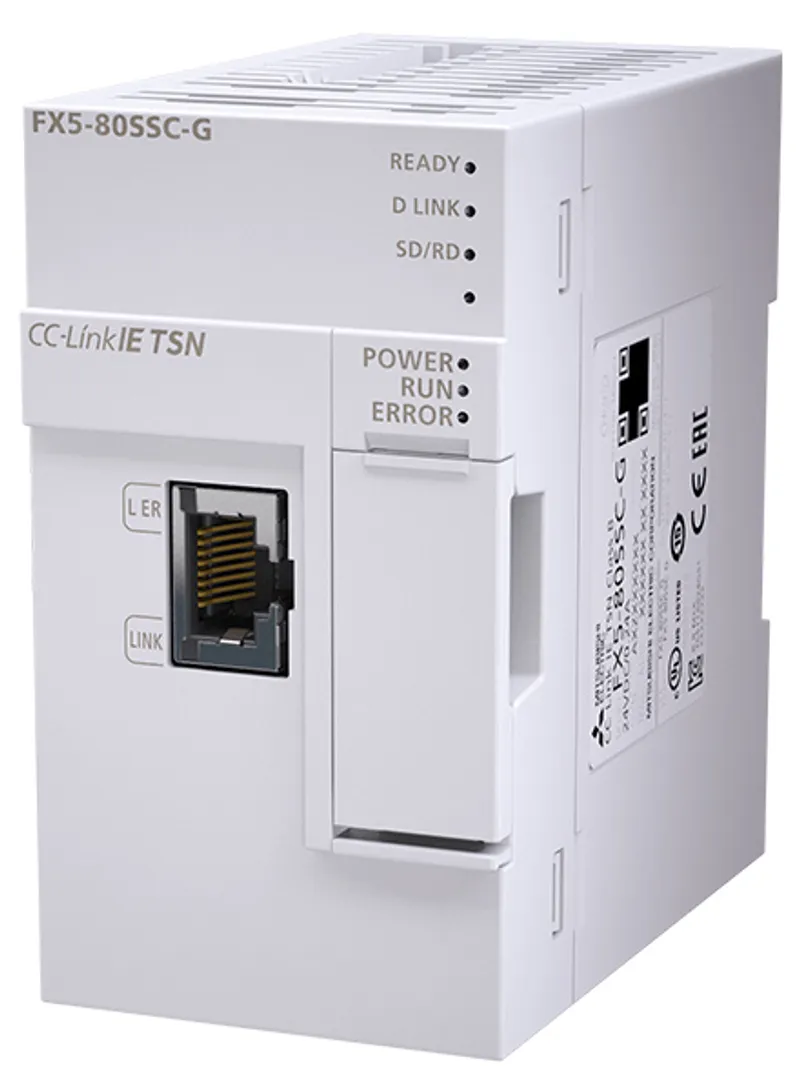

FX5-80SSC-G Mitsubishi MELSEC iQ-F Series Motion/positioning module

MPN: FX5-80SSC-G · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – Motion/Positioning Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-80SSC-G be shipped?

FX5-80SSC-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-80SSC-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-80SSC-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-80SSC-G, subject to availability and destination.

The Mitsubishi Electric FX5-80SSC-G is a motion/positioning module in the MELSEC iQ-F Series. Maximum number of control axes: 8 axes, CC-Link IE TSN connection, Positioning control, synchronous control, speed control, torque control. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	Motion/positioning module
Outline	Maximum number of control axes: 8 axes, CC-Link IE TSN connection, Positioning control, synchronous control, speed control, torque control

Control specifications

Number of control axes	Up to 8 axes
Operation cycle (operation cycle settings) *1	500 μs, 1000 μs, 2000 μs, 4000 μs
Interpolation function	Linear interpolation (up to 4 axes), 2-axis circular interpolation
Control method	Positioning control, speed control, speed-torque control, speed-position switching control, fixed-pitch feed, synchronous control, cam control, continuous path control, position-speed switching control
Acceleration/deceleration processing	Trapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Compensation function	Backlash compensation, electronic gear, near pass function
Synchronous control	Synchronous encoder input, command generation axis, cam, phase compensation, cam auto-generation
Control unit	mm, inch, degree, pulse
Positioning control method	Motion profile table
Number of positioning data	600 data (positioning data No. 1 to 600)/axis (Can be set with MELSOFT GX Works3 or a sequence program.)
Backup	Parameters, positioning data, and block start data can be saved on flash ROM (batteryless backup)
Home position return	Driver home position return *2
Positioning control	Linear interpolation control (up to 4 axes) *3 , fixed-pitch feed control (up to 4 axes), 2-axis circular interpolation (auxiliary point-specified, central point-specified), speed control (up to 4 axes), speed-position switching control (INC mode, ABS mode), position-speed switching control (INC mode), current value change, NOP instruction, JUMP instruction, LOOP, LEND, block start, condition star
Manual control	JOG operation, inching operation, manual pulse generator operation (up to 1 module)
Speed-torque control	Speed control not including position loop, torque control, continuous operation to torque control
Absolute position system	Provided (The servo motors are equipped with a batteryless absolute position encoder as standard.)
Synchronous encoder operation function	Up to 4 modules (via a CPU or a servo amplifier)
Speed limit	Speed limit value, JOG speed limit value
Torque limit function	Torque limit value same setting, torque limit value individual setting
Forced stop	Via buffer memory, valid/invalid setting
Software stroke limit function	Movable range check with feed current value or with machine feed value
Hardware stroke limit function	Provided
Speed change	Provided
Override	0 to 300 %
Acceleration/deceleration processing change	Acceleration/deceleration time
Torque limit value change	Provided
Target position change function	Speed to a target position address and a target position is changeable.
M-code output function	Provided
Step function	Deceleration unit step, data No. unit step
Skip function	Via a CPU or an external command signal
Teaching function	Provided
Parameter initialization function	Provided
External input signal setting function	Via a CPU or a servo amplifier
Mark detection function	Continuous detection mode, specified number of detections mode, ring buffer mode
Mark detection function: Mark detection signal	Signals for the number of axes of the connected servo amplifiers
Mark detection function: Mark detection setting	16 settings
Optional data monitor function	Up to 4 points/axis
Functional safety	DI/O connection of the servo amplifier *4
Automatic return	Provided
Digital oscilloscope function	Bit data: 16 channels, word data: 16 channels *5

Module specifications

Number of control axes	Up to 8 axes
Number of connectable stations	Motion control stations: 8, standard stations: 16
Servo amplifier connection method	CC-Link IE TSN
CC-Link IE TSN Class	B
Maximum distance between stations [m]	CC-Link IE TSN: 100
24 V DC external current consumption [A]	0.24
Mass [kg]	0.30
Exterior dimensions [mm]	90.0 (H) x 50.0 (W) x 83.0 (D)

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-F FX5 Motion Module/Simple Motion Module User's Manual (Startup) (IB-0300251ENG-M)	PDF · 4.06MB
MELSEC iQ-F FX5 Motion Module/Simple Motion Module User's Manual (Application) (IB-0300253ENG-P)	PDF · 14.97MB
MELSEC iQ-F FX5 Motion Module/Simple Motion Module User's Manual (Advanced Synchronous Control) (IB-0300255ENG-N)	PDF · 3.27MB
MELSEC iQ-F FX5 Motion Module User's Manual (CC-Link IE TSN) (IB-0300568ENG-H)	PDF · 26.42MB
MELSEC iQ-F FX5 Motion Module/Simple Motion Module Function Block Reference (BCN-B62005-719-D)	PDF · 0.87MB
MELSEC iQ-F FX5 Motion Module Hardware Manual (BCN-B62008-427E-D)	PDF · 0.38MB
