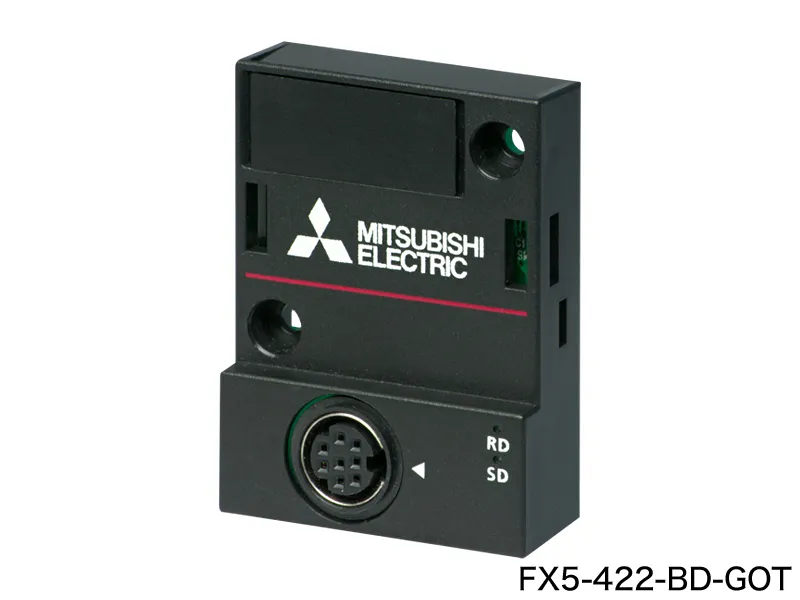

What is the Mitsubishi Electric FX5-422-BD-GOT?

The Mitsubishi Electric FX5-422-BD-GOT is a network/communication module in the MELSEC iQ-F Series. 8-pin MINI-DIN type RS-422 communication (For GOT connection). Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
Outline8-pin MINI-DIN type RS-422 communication (For GOT connection)

Specifications

Applicable CPU moduleFX5S CPU module: From the first FX5UJ CPU module: From the first FX5U CPU module: From the first
Number of occupied I/O points0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)Approx. 20 g
Communication methodHalf-duplex, bidirectional communication
Communication speed9600, 19200, 38400, 57600, 115200 bps
Transmission standardConforming to RS-422
Maximum transmission distanceAccording to the specification of the GOT For the maximum transmission distance, refer to the manual of the model to be connected.
Connection method8-pin MINI-DIN, female
InsulationNot insulated (Between communication line and CPU module)

Power supply specifications

Rated voltage (Internal power supply)5 V DC
Current consumption (Internal power supply)20 mA/5 V DC When the GOT 5 V type is connected with this product, the current consumption increases. For the current consumption, refer to the manual of the model to be connected.

FX5-422-BD-GOT: frequently asked questions

When can FX5-422-BD-GOT be shipped?

FX5-422-BD-GOT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-422-BD-GOT in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-422-BD-GOT and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-422-BD-GOT, subject to availability and destination.

More Mitsubishi Electric (Factory Automation) parts

Mitsubishi Electric FX5-32ET/ESS – Mitsubishi MELSEC iQ-F Series Input/Output Module
Mitsubishi Electric
FX5-32ET/ESS

Mitsubishi MELSEC iQ-F Series Input/Output Module

Mitsubishi Electric FX5-3A-BD – Mitsubishi MELSEC iQ-F Series Analog input/output module
Mitsubishi Electric
FX5-3A-BD

Mitsubishi MELSEC iQ-F Series Analog input/output module

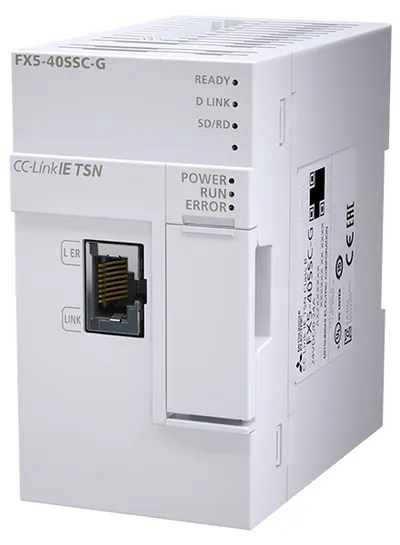

Mitsubishi Electric FX5-40SSC-G – Mitsubishi MELSEC iQ-F Series Motion/positioning module
Mitsubishi Electric
FX5-40SSC-G

Mitsubishi MELSEC iQ-F Series Motion/positioning module

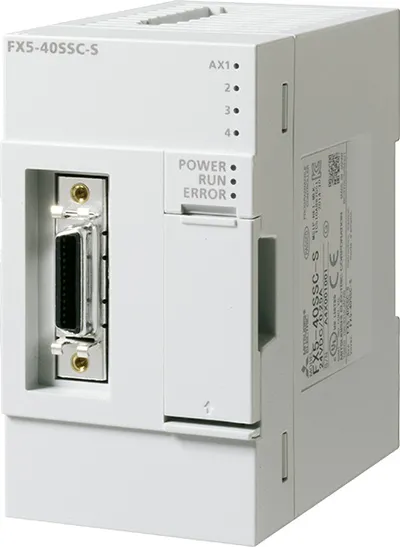

Mitsubishi Electric FX5-40SSC-S – Mitsubishi MELSEC iQ-F Series Motion/positioning module
