Mitsubishi Electric FX5-40SSC-G

Mitsubishi MELSEC iQ-F Series Motion/positioning module

MPN
FX5-40SSC-G
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-40SSC-G?

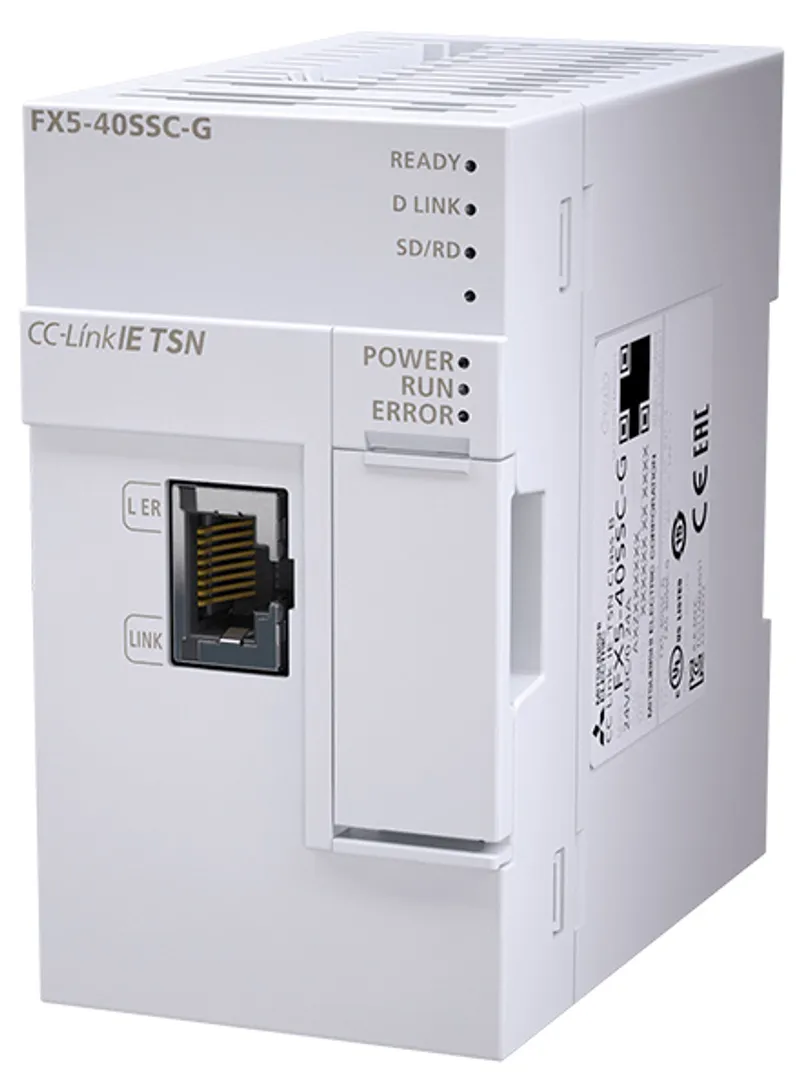

The Mitsubishi Electric FX5-40SSC-G is a motion/positioning module in the MELSEC iQ-F Series. Maximum number of control axes: 4 axes, CC-Link IE TSN connection, Positioning control, synchronous control, speed control, torque control. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryMotion/positioning module
OutlineMaximum number of control axes: 4 axes, CC-Link IE TSN connection, Positioning control, synchronous control, speed control, torque control

Control specifications

Number of control axesUp to 4 axes
Operation cycle (operation cycle settings) *1500 μs, 1000 μs, 2000 μs, 4000 μs
Interpolation functionLinear interpolation (up to 4 axes), 2-axis circular interpolation
Control methodPositioning control, speed control, speed-torque control, speed-position switching control, fixed-pitch feed, synchronous control, cam control, continuous path control, position-speed switching control
Acceleration/deceleration processingTrapezoidal acceleration/deceleration, S-curve acceleration/deceleration
Compensation functionBacklash compensation, electronic gear, near pass function
Synchronous controlSynchronous encoder input, command generation axis, cam, phase compensation, cam auto-generation
Control unitmm, inch, degree, pulse
Positioning control methodMotion profile table
Number of positioning data600 data (positioning data No. 1 to 600)/axis (Can be set with MELSOFT GX Works3 or a sequence program.)
BackupParameters, positioning data, and block start data can be saved on flash ROM (batteryless backup)
Home position returnDriver home position return *2
Positioning controlLinear interpolation control (up to 4 axes) *3 , fixed-pitch feed control (up to 4 axes), 2-axis circular interpolation (auxiliary point-specified, central point-specified), speed control (up to 4 axes), speed-position switching control (INC mode, ABS mode), position-speed switching control (INC mode), current value change, NOP instruction, JUMP instruction, LOOP, LEND, block start, condition star
Manual controlJOG operation, inching operation, manual pulse generator operation (up to 1 module)
Speed-torque controlSpeed control not including position loop, torque control, continuous operation to torque control
Absolute position systemProvided (The servo motors are equipped with a batteryless absolute position encoder as standard.)
Synchronous encoder operation functionUp to 4 modules (via a CPU or a servo amplifier)
Speed limitSpeed limit value, JOG speed limit value
Torque limit functionTorque limit value same setting, torque limit value individual setting
Forced stopVia buffer memory, valid/invalid setting
Software stroke limit functionMovable range check with feed current value or with machine feed value
Hardware stroke limit functionProvided
Speed changeProvided
Override0 to 300 %
Acceleration/deceleration processing changeAcceleration/deceleration time
Torque limit value changeProvided
Target position change functionSpeed to a target position address and a target position is changeable.
M-code output functionProvided
Step functionDeceleration unit step, data No. unit step
Skip functionVia a CPU or an external command signal
Teaching functionProvided
Parameter initialization functionProvided
External input signal setting functionVia a CPU or a servo amplifier
Mark detection functionContinuous detection mode, specified number of detections mode, ring buffer mode
Mark detection function: Mark detection signalSignals for the number of axes of the connected servo amplifiers
Mark detection function: Mark detection setting16 settings
Optional data monitor functionUp to 4 points/axis
Functional safetyDI/O connection of the servo amplifier *4
Automatic returnProvided
Digital oscilloscope functionBit data: 16 channels, word data: 16 channels *5

Module specifications

Number of control axesUp to 4 axes
Number of connectable stationsMotion control stations: 4, standard stations: 16
Servo amplifier connection methodCC-Link IE TSN
CC-Link IE TSN ClassB
Maximum distance between stations [m]CC-Link IE TSN: 100
24 V DC external current consumption [A]0.24
Mass [kg]0.30
Exterior dimensions [mm]90.0 (H) x 50.0 (W) x 83.0 (D)

FX5-40SSC-G: frequently asked questions

When can FX5-40SSC-G be shipped?

FX5-40SSC-G is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-40SSC-G in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-40SSC-G and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-40SSC-G, subject to availability and destination.
