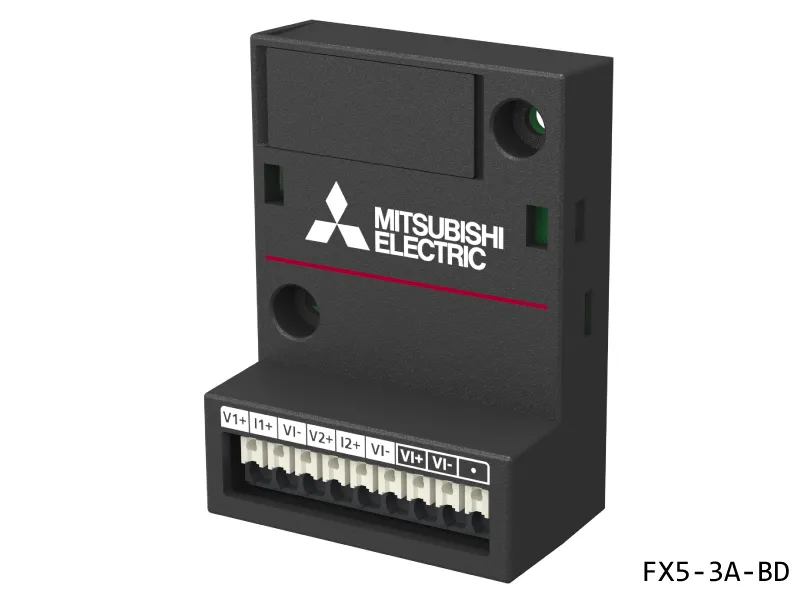

Mitsubishi Electric FX5-3A-BD

Mitsubishi MELSEC iQ-F Series Analog input/output module

MPN
FX5-3A-BD
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-3A-BD?

The Mitsubishi Electric FX5-3A-BD is a analog input/output module in the MELSEC iQ-F Series. Spring clamp terminal block type Analog input: 2 ch Analog output: 1 ch. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryAnalog input/output module
OutlineSpring clamp terminal block type Analog input: 2 ch Analog output: 1 ch

Specifications

Applicable CPU moduleFX5S CPU module: Ver. 1.070 or later FX5UJ CPU module: Ver. 1.110 or later FX5U CPU module: Ver. 1.350 or later
Applicable engineering tool: GX Works3FX5S CPU module: Ver. 1.125F or later FX5UJ CPU module: Ver. 1.125F or later FX5U CPU module: Ver. 1.125F or later
Number of occupied I/O points0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)Approx. 20 g
Conversion speedMaximum 1.5 ms
Isolation methodBetween input/output terminal and PLC: Non-isolation Between input/output channels: Non-isolation

Analog Input Specifications

Number of analog input points2 points (2 channels)
Analog input voltage0 to +10 V DC (Input resistance 198 kΩ)
Analog input current0 to +20 mA DC (Input resistance 250 Ω)
Digital output12-bit binary value
Input characteristics, resolution: Analog input range (Voltage): 0 to 10 VDigital output value: 0 to 4000 Resolution: 2.5 mV
Input characteristics, resolution: Analog input range (Current): 0 to 20 mADigital output value: 0 to 4000 Resolution: 5 μA
Input characteristics, resolution: Analog input range (Current): 4 to 20 mADigital output value: 0 to 3200 Resolution: 5 μA
Accuracy (accuracy for the full scale of the digital output value)Ambient temperature 25±5℃: Within ±0.5 % (±20 digit) Ambient temperature 0 to 55℃: Within ±1.0 % (±40 digit) Ambient temperature -20 to 0℃: Within ±1.5 % (±60 digit)
Absolute maximum inputVoltage: -0.5 V/+15 V, Current: -2 mA/+30 mA

Analog Output Specifications

Number of analog output points1 point (1 channel)
Digital input12-bit binary value
Analog output voltage0 to +10 V DC (external load resistance value 1 k to 1 MΩ)
Analog output current0 to +20 mA DC (external load resistance value 0 to 500 Ω)
Output characteristics, resolution: Analog output range (Voltage): 0 to 10 VDigital output value: 0 to 4000 Resolution: 2.5 mV
Output characteristics, resolution: Analog output range (Current): 0 to 20 mADigital output value: 0 to 4000 Resolution: 5 μA
Output characteristics, resolution: Analog output range (Current): 4 to 20 mADigital output value: 0 to 3200 Resolution: 5 μA
Accuracy (accuracy for the full scale of the analog output value)Ambient temperature 25±5℃: Within ±0.5% (voltage ±50 mV, current ±100 μA) Ambient temperature 0 to 55℃: Within ±1.0% (voltage±100 mV, current ±200 μA) Ambient temperature -20 to 0℃: Within ±1.5% (voltage±150 mV, current ±300 μA)

Power supply specifications

Internal power supply: Power supply voltage24 V DC, 5 V DC
Internal power supply: Current consumption24 V DC: 50 mA 5 V DC: 20 mA

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

FX5-3A-BD: frequently asked questions

When can FX5-3A-BD be shipped?

FX5-3A-BD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-3A-BD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-3A-BD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-3A-BD, subject to availability and destination.
