What is the Mitsubishi Electric FX5-32ET/ESS?

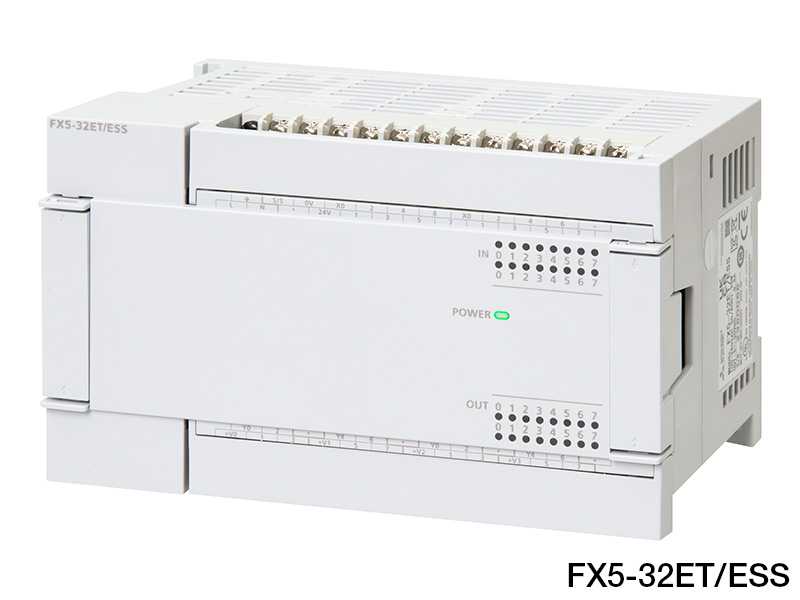

The Mitsubishi Electric FX5-32ET/ESS is a input/Output Module in the MELSEC iQ-F Series. Built-in AC power Screw terminal block type Input: 16 points 24 V DC Sink/source Output: 16 points Transistor/source. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryInput/Output Module
OutlineBuilt-in AC power Screw terminal block type Input: 16 points 24 V DC Sink/source Output: 16 points Transistor/source

Specifications

Applicable CPU moduleFX5UJ CPU module (AC power supply type) FX5U CPU module (AC power supply type)
Mass (weight)Approx. 0.65 kg

Power supply specifications

Rated voltage100 to 240 V AC
Voltage fluctuation range-15%, +10%
Frequency rating50/60 Hz
Allowable instantaneous power failure timeOperation can be continued upon occurrence of instantaneous power failure for 10 ms or less.
Power fuse250 V, 3.15 A time-lag fuse
Rush current30 A max. 5 ms or less/100 V AC 65 A max. 5 ms or less/200 V AC
Power consumption25 W This item shows value when all 24 V DC service power supplies and 24 V DC built-in power supplies are used in the maximum configuration connectable to the powered input/output module. (The current of the input circuit is included.)
24 V DC service power supply capacity250 mA (Supply capacity when 24 V DC service power supply is used for input circuit of the powered input/output module) 310 mA (Supply capacity when external power supply is used for input circuit of the powered input/output module) When input modules are connected, they consume current from the 24 V DC service power supply.
5 V DC built-in power supply capacity965 mA

Input specifications

No. of input points16 points
Input connection typeScrew terminal block (M3 screws)
Input typeSink/source
Input signal voltage24 V DC +20%, -15%
Input signal current4.0 mA/24 V DC
Input impedance5.6 kΩ
Input sensitivity current: ON3.0 mA or more
Input sensitivity current: OFF1.5 mA or less
Input response timeON: 50 μs or less OFF: 150 μs or less
Input signal format (Input sensor form)No-voltage contact input Sink: NPN open collector transistor Source: PNP open collector transistor
Input circuit insulationPhoto-coupler insulation
Indication of input operationLED is lit when input is on

Output specifications

No. of output points16 points
Output connection typeScrew terminal block (M3 screws)
Output typeTransistor/source output
External power supply5-30 V DC
Max. load0.5 A/point The total load current of resistance loads per common terminal should be the following value. • 4 output points/common terminal: 0.8 A or less
Min. load-
Open circuit leakage current0.1 mA/30 V DC
Voltage drop when ON1.5 V or less
Response time: OFF→ON0.2 ms or less/200 mA (at 24 V DC)
Response time: ON→OFF0.2 ms or less/200 mA (at 24 V DC)
Output circuit insulationPhoto-coupler insulation
Indication of output operationLED is lit when output is on
