Mitsubishi Electric FX5-32ET/ES
Mitsubishi MELSEC iQ-F Series Input/Output Module
- MPN
- FX5-32ET/ES
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →
What is the Mitsubishi Electric FX5-32ET/ES?

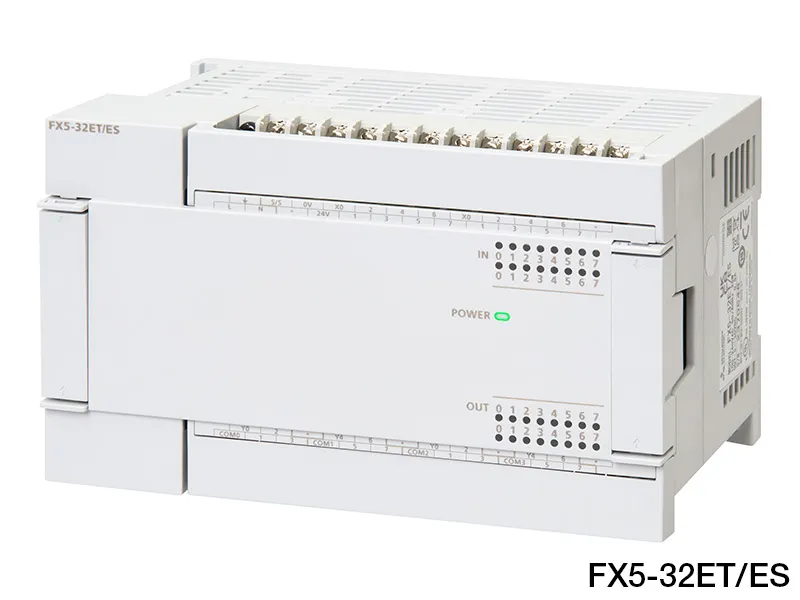

The Mitsubishi Electric FX5-32ET/ES is a input/Output Module in the MELSEC iQ-F Series. Built-in AC power Screw terminal block type Input: 16 points 24 V DC Sink/source Output: 16 points Transistor/sink. Specifications and manuals below are Mitsubishi Electric's own data.
Specifications
Product
| Series | MELSEC iQ-F Series |
| Category | Input/Output Module |
| Outline | Built-in AC power Screw terminal block type Input: 16 points 24 V DC Sink/source Output: 16 points Transistor/sink |
Specifications
| Applicable CPU module | FX5UJ CPU module (AC power supply type) FX5U CPU module (AC power supply type) |
| Mass (weight) | Approx. 0.65 kg |
Power supply specifications
| Rated voltage | 100 to 240 V AC |
| Voltage fluctuation range | -15%, +10% |
| Frequency rating | 50/60 Hz |
| Allowable instantaneous power failure time | Operation can be continued upon occurrence of instantaneous power failure for 10 ms or less. |
| Power fuse | 250 V, 3.15 A time-lag fuse |
| Rush current | 30 A max. 5 ms or less/100 V AC 65 A max. 5 ms or less/200 V AC |
| Power consumption | 25 W This item shows value when all 24 V DC service power supplies and 24 V DC built-in power supplies are used in the maximum configuration connectable to the powered input/output module. (The current of the input circuit is included.) |
| 24 V DC service power supply capacity | 250 mA (Supply capacity when 24 V DC service power supply is used for input circuit of the powered input/output module) 310 mA (Supply capacity when external power supply is used for input circuit of the powered input/output module) When input modules are connected, they consume current from the 24 V DC service power supply. |
| 5 V DC built-in power supply capacity | 965 mA |
Input specifications
| No. of input points | 16 points |
| Input connection type | Screw terminal block (M3 screws) |
| Input type | Sink/source |
| Input signal voltage | 24 V DC +20%, -15% |
| Input signal current | 4.0 mA/24 V DC |
| Input impedance | 5.6 kΩ |
| Input sensitivity current: ON | 3.0 mA or more |
| Input sensitivity current: OFF | 1.5 mA or less |
| Input response time | ON: 50 μs or less OFF: 150 μs or less |
| Input signal format (Input sensor form) | No-voltage contact input Sink: NPN open collector transistor Source: PNP open collector transistor |
| Input circuit insulation | Photo-coupler insulation |
| Indication of input operation | LED is lit when input is on |
Output specifications
| No. of output points | 16 points |
| Output connection type | Screw terminal block (M3 screws) |
| Output type | Transistor/sink output |
| External power supply | 5-30 V DC |
| Max. load | 0.5 A/point The total load current of resistance loads per common terminal should be the following value. • 4 output points/common terminal: 0.8 A or less |
| Min. load | - |
| Open circuit leakage current | 0.1 mA/30 V DC |
| Voltage drop when ON | 1.5 V or less |
| Response time: OFF→ON | 0.2 ms or less/200 mA (at 24 V DC) |
| Response time: ON→OFF | 0.2 ms or less/200 mA (at 24 V DC) |
| Output circuit insulation | Photo-coupler insulation |
| Indication of output operation | LED is lit when output is on |
No matching specifications
Downloads & documentation
Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.
Data sheets & manuals
FX5-32ET/ES: frequently asked questions
When can FX5-32ET/ES be shipped?
FX5-32ET/ES is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up FX5-32ET/ES in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for FX5-32ET/ES and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-32ET/ES, subject to availability and destination.
