What is the Mitsubishi Electric FX5-232ADP?

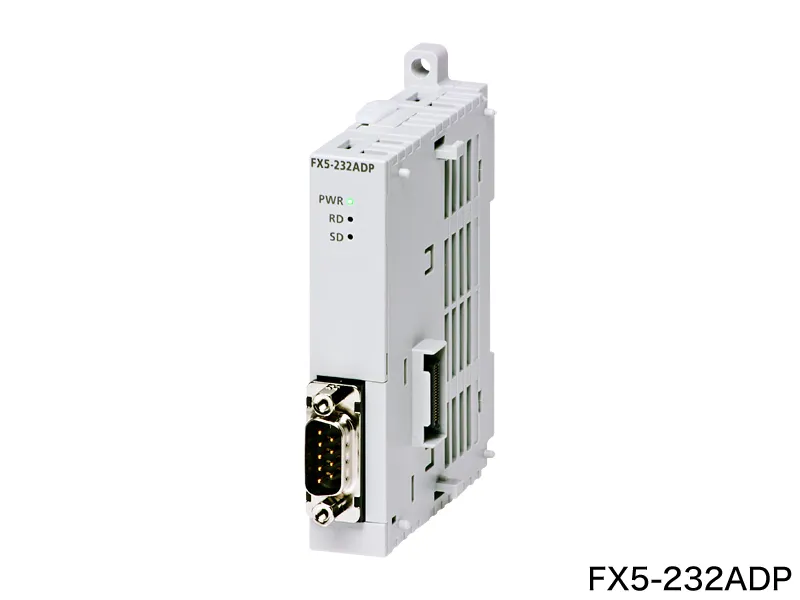

The Mitsubishi Electric FX5-232ADP is a network/communication module in the MELSEC iQ-F Series. 9-pin D-Sub type RS-232C communication. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryNetwork/communication module
Outline9-pin D-Sub type RS-232C communication

Specifications

Applicable ControllerMX Controller MX-F model
Applicable CPU moduleFX5S CPU module: From the first FX5UJ CPU module: From the first FX5U CPU module: From the first FX5UC CPU module: From the first
Number of occupied I/O points0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)Approx. 80 g
Communication function: MC protocol: Maximum overall distance15 m or less
Communication function: MC protocol: Protocol typeMC protocol 3C/4C frame: There are format 1/format 4/format 5. 1C frame: There are format 1/format 4.
Communication function: MC protocol: Communication methodHalf-duplex, bidirectional communication
Communication function: MC protocol: Baud rate300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bps
Communication function: Non-protocol communication: Maximum overall distance15 m or less
Communication function: Non-protocol communication: Control procedureNon-protocol communication
Communication function: Non-protocol communication: Communication methodHalf-duplex, bi-directional communication/full-duplex, bi-directional communication
Communication function: Non-protocol communication: Baud rate300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bps
Communication function: Predefined protocol support: Maximum overall distance15 m or less
Communication function: Predefined protocol support: Protocol typePredefined protocol support
Communication function: Predefined protocol support: Communication methodHalf-duplex, bidirectional communication
Communication function: Predefined protocol support: Baud rate9600, 19200, 38400, 57600, 115200 bps
Communication function: MODBUS communication function: Transmission distance15 m or less
Communication function: MODBUS communication function: Communication protocolRTU
Communication function: MODBUS communication function: Baud rate300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bps
Transmission standardRS-232C standard
Connection method9-pin D-sub, male
InsulationPhoto-coupler isolation (Between communication line and CPU module)

Power supply specifications

Rated voltage (Internal power supply)5 V DC 24 V DC
Current consumption (Internal power supply)30 mA/5 V DC 30 mA/24 V DC

General specifications other than the following are the same as the CPU module.

Dielectric withstand voltage: Between 9-pin D-Sub connector and ground terminal of CPU module500 V AC for one minute
Insulation resistance: Between 9-pin D-Sub connector and ground terminal of CPU module10 MΩ or higher by 500 V DC insulation resistance tester

FX5-232ADP: frequently asked questions

When can FX5-232ADP be shipped?

FX5-232ADP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-232ADP in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-232ADP and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-232ADP, subject to availability and destination.
