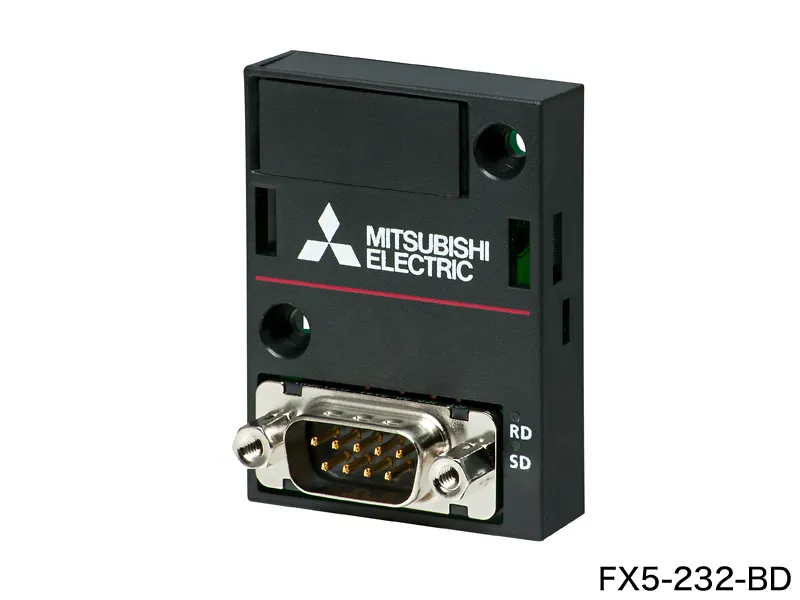

FX5-232-BD Mitsubishi MELSEC iQ-F Series Network/communication module

MPN: FX5-232-BD · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – Network/Communication Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-232-BD be shipped?

FX5-232-BD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-232-BD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-232-BD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-232-BD, subject to availability and destination.

The Mitsubishi Electric FX5-232-BD is a network/communication module in the MELSEC iQ-F Series. 9-pin D-Sub type RS-232C communication. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	Network/communication module
Outline	9-pin D-Sub type RS-232C communication

Specifications

Applicable CPU module	FX5S CPU module: From the first FX5UJ CPU module: From the first FX5U CPU module: From the first
Number of occupied I/O points	0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)	Approx. 20 g
Communication function: MC protocol: Maximum overall distance	15 m or less
Communication function: MC protocol: Protocol type	MC protocol 3C/4C frame: There are format 1/format 4/format 5. 1C frame: There are format 1/format 4.
Communication function: MC protocol: Communication method	Half-duplex, bidirectional communication
Communication function: MC protocol: Baud rate	300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bps
Communication function: Non-protocol communication: Maximum overall distance	15 m or less
Communication function: Non-protocol communication: Control procedure	Non-protocol communication
Communication function: Non-protocol communication: Communication method	Half-duplex, bi-directional communication/full-duplex, bi-directional communication
Communication function: Non-protocol communication: Baud rate	300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bps
Communication function: Predefined protocol support: Maximum overall distance	15 m or less
Communication function: Predefined protocol support: Protocol type	Predefined protocol support
Communication function: Predefined protocol support: Communication method	Half-duplex, bidirectional communication
Communication function: Predefined protocol support: Baud rate	9600, 19200, 38400, 57600, 115200 bps
Communication function: MODBUS communication function: Transmission distance	15 m or less
Communication function: MODBUS communication function: Communication protocol	RTU
Communication function: MODBUS communication function: Baud rate	300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 57600 or 115200 bps
Transmission standard	RS-232C standard
Connection method	9-pin D-sub, male
Insulation	Not insulated (Between communication line and CPU module)

Power supply specifications

Rated voltage (Internal power supply)	5 V DC
Current consumption (Internal power supply)	20 mA

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-F FX5-232-BD Hardware Manual (JY997D53901)	PDF · 0.31MB
MELSEC iQ-F FX5 CPU Module Function Block Reference (JY997D62701-L)	PDF · 1.44MB
MELSEC iQ-F FX5S/FX5UJ/FX5U/FX5UC User's Manual (Hardware) (SH-082452ENG-Q)	PDF · 7.58MB
MELSEC iQ-F FX5 User's Manual (Communication) (SH-082625ENG-J)	PDF · 15.18MB
