Home / Mitsubishi Electric (Factory Automation) / Mitsubishi MELSEC iQ-F Series – High-speed counter Module / FX5-2HC/ES Mitsubishi MELSEC iQ-F Series High-speed counter module

Available on request

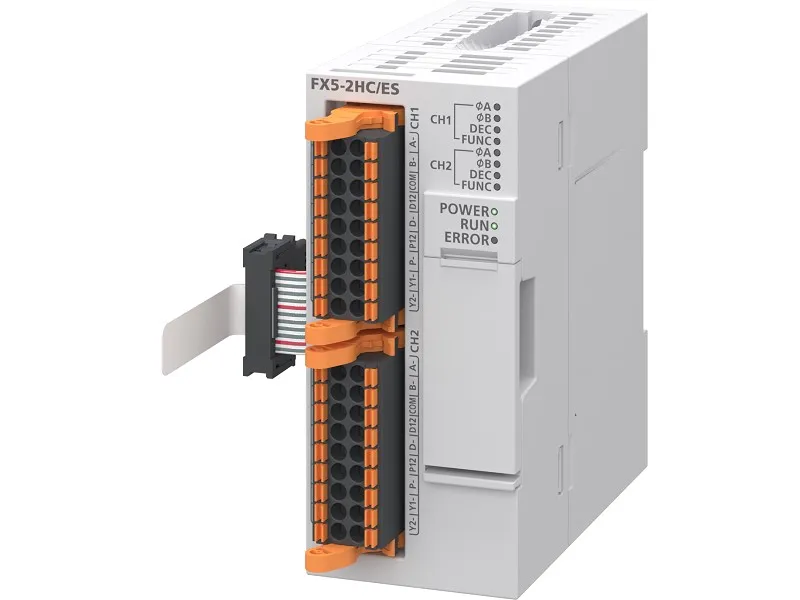

FX5-2HC/ES Mitsubishi MELSEC iQ-F Series High-speed counter module

MPN: FX5-2HC/ES · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – High-speed counter Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-2HC/ES be shipped?

FX5-2HC/ES is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-2HC/ES in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-2HC/ES and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-2HC/ES, subject to availability and destination.

The Mitsubishi Electric FX5-2HC/ES is a high-speed counter module in the MELSEC iQ-F Series. Spring clamp terminal block type High-speed counter: 2 ch Input type: Differential line driver. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	High-speed counter module
Outline	Spring clamp terminal block type High-speed counter: 2 ch Input type: Differential line driver

Specifications

Applicable Controller	MX Controller MX-F model *1
Applicable CPU module	FX5UJ CPU module: Ver. 1.060 or later FX5U CPU module: Ver. 1.300 or later FX5UC CPU module: Ver. 1.300 or later
Applicable engineering tool: GX Works3	FX5UJ CPU module: Ver. 1.100E or later FX5U CPU module: Ver. 1.100E or later FX5UC CPU module: Ver. 1.100E or later
No. of occupied I/O points	8 point
Mass	Approx. 0.2 kg

Power supply specifications

Internal power supply: Power supply voltage	Bus 5 V DC
Internal power supply: Current consumption	210 mA

Input specifications

No. of input points: Differential input(Phase A,Phase B)	2 points (1 point x 2 channels)
No. of input points: Function Start Input	2 points (1 point x 2 channels)
No. of input points: Preset input	2 points (1 point x 2 channels)
Input type	Differential line driver
Count input: Phase	1-phase 1-input, 1-phase 2-input, 2-phase 2-input (1 edge count/2 edge count/4 edge count), Internal clock (1 MHz)
Count input: Signal level	5 V DC (EIA RS-422-A differential line driver level (equivalent to AM26LS31))
Count input: Counting speed setting	10 kHz, 50 kHz, 100 kHz, 200 kHz, 500 kHz, 1 MHz, 2 MHz
Count input: Digital filter	When the counting speed setting is 2 MHz: None When the counting speed setting is a value other than the above: Automatically set according to the counting speed setting value
Count input: Counting speed (max)	1-phase 1-input, 1-phase 2-input, 2-phase 2-input (1 edge count): 2 MHz 2-phase 2-input (2 edge count): 1 MHz 2-phase 2-input (4 edge count): 500 kHz
Count input: Counting range	32-bit signed binary (-2147483648 to 2147483647)
External input: Preset *1	[P24] 24 V DC±10%, Current consumption 10 mA or less [P12] 12 V DC±10%, Current consumption 10 mA or less [P5] 2.4 V to 5.5 V DC, Current consumption 25 mA or less *1 Select one of 5 V DC/12 V DC/24 V DC to use.
External input: Function start *2	[D24] 24 V DC±10%, Current consumption 8 mA or less [D12] 12 V DC±10%, Current consumption 8 mA or less [D5] 5 V DC±10%, Current consumption 7 mA or less *2 Select one of 5 V DC/12 V DC/24 V DC to use.
External input: Digital filter	None, 0.1 ms, 1 ms, 10 ms

Output specifications

No. of output points	4 points (2 points x 2 channels)
External output: No. of output points/Output type	2 points/channels Transistor (sink output)
External output: Output capacity	5 V to 30 V DC 0.5 A/1 point (Resistive load)
External output: Response time	OFF→ON: 2.5 μs or less ON→OFF: 2.5 μs or less
Coincidence output: Coincidence output response	Count speed is set to 2 MHz: 3 μs Count speed setting other than above: (150/count rate Choose between (kHz) +3) μs

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between batch of all terminals and ground terminal	500 V AC for 1 min
Insulation resistance: Between batch of all terminals and ground terminal	10 MΩ or higher by 500 V DC insulation resistance tester

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

MELSEC iQ-F FX5 High-Speed Counter Module User's Manual (SH-082631ENG-B)	PDF · 2.56MB
MELSEC iQ-F FX5 High-Speed Counter Module Function Block Reference (SH-082652ENG-B)	PDF · 0.94MB
MELSEC iQ-F FX5-2HC/ES Hardware Manual (IB-0800695)	PDF · 0.35MB
MELSEC iQ-F FX5S/FX5UJ/FX5U/FX5UC User's Manual (Hardware) (SH-082452ENG-Q)	PDF · 7.58MB
