Mitsubishi Electric FX5-32ER/ES

Mitsubishi MELSEC iQ-F Series Input/Output Module

MPN
FX5-32ER/ES
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX5-32ER/ES?

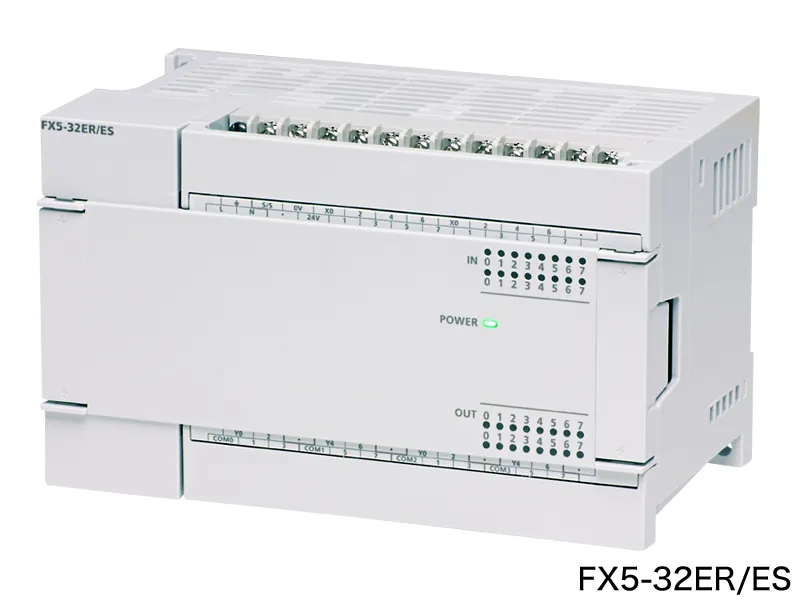

The Mitsubishi Electric FX5-32ER/ES is a input/Output Module in the MELSEC iQ-F Series. Built-in AC power Screw terminal block type Input: 16 points 24 V DC sink/source Output: 16 points Relay. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryInput/Output Module
OutlineBuilt-in AC power Screw terminal block type Input: 16 points 24 V DC sink/source Output: 16 points Relay

Specifications

Applicable CPU moduleFX5UJ CPU module (AC power supply type) FX5U CPU module (AC power supply type)
Mass (weight)Approx. 0.65 kg

Power supply specifications

Rated voltage100 to 240 V AC
Voltage fluctuation range-15%, +10%
Frequency rating50/60 Hz
Allowable instantaneous power failure timeOperation can be continued upon occurrence of instantaneous power failure for 10 ms or less.
Power fuse250 V, 3.15 A time-lag fuse
Rush current30 A max. 5 ms or less/100 V AC 65 A max. 5 ms or less/200 V AC
Power consumption25 W This item shows value when all 24 V DC service power supplies and 24 V DC built-in power supplies are used in the maximum configuration connectable to the powered input/output module. (The current of the input circuit is included.)
24 V DC service power supply capacity250 mA (Supply capacity when 24 V DC service power supply is used for input circuit of the powered input/output module) 310 mA (Supply capacity when external power supply is used for input circuit of the powered input/output module) When input modules are connected, they consume current from the 24 V DC service power supply.
5 V DC built-in power supply capacity965 mA

Input specifications

No. of input points16 points
Input connection typeScrew terminal block (M3 screws)
Input typeSink/source
Input signal voltage24 V DC +20%, -15%
Input signal current4.0 mA/24 V DC
Input impedance5.6 kΩ
Input sensitivity current: ON3.0 mA or more
Input sensitivity current: OFF1.5 mA or less
Input response timeON: 50 μs or less OFF: 150 μs or less
Input signal format (Input sensor form)No-voltage contact input Sink: NPN open collector transistor Source: PNP open collector transistor
Input circuit insulationPhoto-coupler insulation
Indication of input operationLED is lit when input is on

Output specifications

No. of output points16 points
Output connection typeScrew terminal block (M3 screws)
Output typeRelay output
External power supply30 V DC or less 240 V AC or less (250 V AC or less when the module does not comply with CE UL, cUL standards)
Max. load2 A/point The total load current of resistance loads per common terminal should be the following value. • 4 output points/common terminal: 8 A or less
Min. load5 V DC, 2 mA (reference values)
Open circuit leakage current-
Response time: OFF→ONApprox. 10 ms
Response time: ON→OFFApprox. 10 ms
Output circuit insulationMechanical insulation
Indication of output operationLED is lit when output is on

Downloads & documentation

Official documents from Mitsubishi Electric (Factory Automation), downloaded directly from the manufacturer.

Data sheets & manuals

FX5-32ER/ES: frequently asked questions

When can FX5-32ER/ES be shipped?

FX5-32ER/ES is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-32ER/ES in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-32ER/ES and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-32ER/ES, subject to availability and destination.
