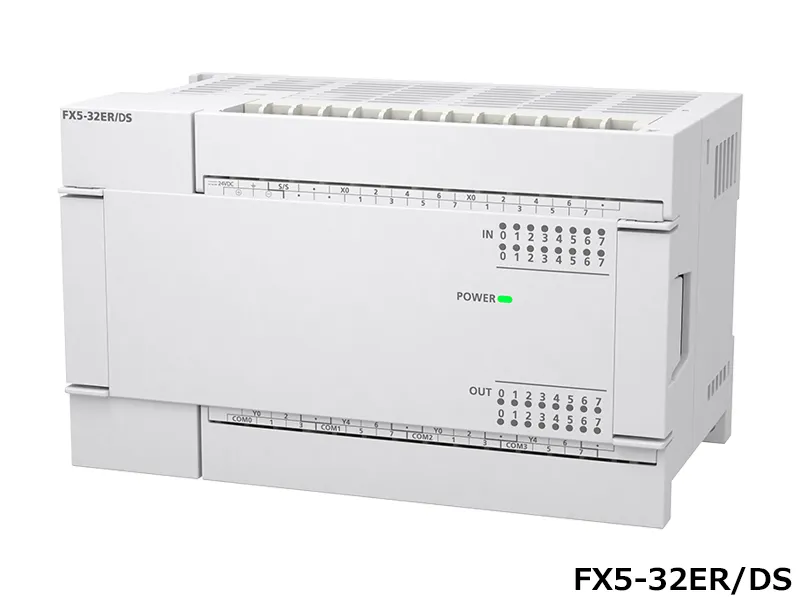

FX5-32ER/DS Mitsubishi MELSEC iQ-F Series Input/Output Module

MPN: FX5-32ER/DS · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC iQ-F Series – Input/Output Module
Lifecycle	Active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can FX5-32ER/DS be shipped?

FX5-32ER/DS is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX5-32ER/DS in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX5-32ER/DS and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX5-32ER/DS, subject to availability and destination.

The Mitsubishi Electric FX5-32ER/DS is a input/Output Module in the MELSEC iQ-F Series. Built-in DC power Screw terminal block type Input: 16 points 24 V DC Sink/source Output: 16 points Relay. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC iQ-F Series
Category	Input/Output Module
Outline	Built-in DC power Screw terminal block type Input: 16 points 24 V DC Sink/source Output: 16 points Relay

Specifications

Applicable Controller	MX Controller MX-F model *1
Applicable CPU module	FX5UJ CPU module (DC power supply type) FX5U CPU module (DC power supply type) FX5UC CPU module* * FX5-CNV-IFC or FX5-C1PS-5V is required to connect to the FX5UC CPU module.
Mass (weight)	Approx. 0.65 kg

Power supply specifications

Rated voltage	24 V DC
Voltage fluctuation range	-30%, +20%
Allowable instantaneous power failure time	Operation can be continued upon occurrence of instantaneous power failure for 5 ms or less.
Power fuse	250 V, 3.15 A time-lag fuse
Rush current	50 A max. 0.5 ms or less/24 V DC
Power consumption	25 W This item shows value when all 24 V DC built-in power supplies are used in the maximum configuration connectable to the powered input/output module. (The current of the input circuit is included.)
24 V DC built-in power supply capacity	310 mA When input modules are connected, they consume current from the 24 V DC built-in power supply.
5 V DC built-in power supply capacity	965 mA

Input specifications

No. of input points	16 points
Input connection type	Screw terminal block (M3 screws)
Input type	Sink/source
Input signal voltage	24 V DC +20%, -15%
Input signal current	4.0 mA/24 V DC
Input impedance	5.6 kΩ
Input sensitivity current: ON	3.0 mA or more
Input sensitivity current: OFF	1.5 mA or less
Input response time	ON: 50 μs or less OFF: 150 μs or less
Input signal format (Input sensor form)	No-voltage contact input Sink: NPN open collector transistor Source: PNP open collector transistor
Input circuit insulation	Photo-coupler insulation
Indication of input operation	LED is lit when input is on

Output specifications

No. of output points	16 points
Output connection type	Screw terminal block (M3 screws)
Output type	Relay output
External power supply	30 V DC or less 240 V AC or less (250 V AC or less when the module does not comply with CE UL, cUL standards)
Max. load	2 A/point The total load current of resistance loads per common terminal should be the following value. • 4 output points/common terminal: 8 A or less
Min. load	5 V DC, 2 mA (reference values)
Open circuit leakage current	－
Response time: OFF→ON	Approx. 10 ms
Response time: ON→OFF	Approx. 10 ms
Output circuit insulation	Mechanical insulation
Indication of output operation	LED is lit when output is on
