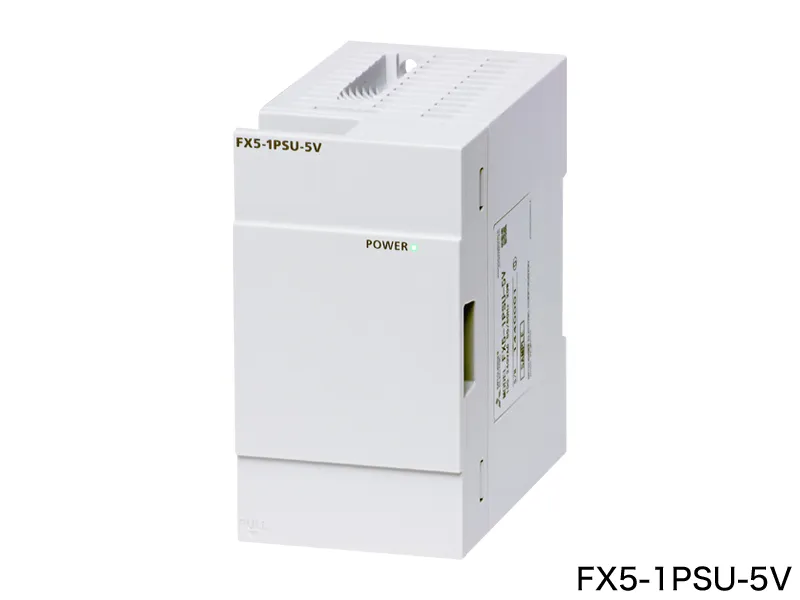

What is the Mitsubishi Electric FX5-1PSU-5V?

The Mitsubishi Electric FX5-1PSU-5V is a option in the MELSEC iQ-F Series. Extension power supply. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC iQ-F Series
CategoryOption
OutlineExtension power supply

Specifications

Applicable CPU moduleFX5UJ CPU module (AC power supply type): From first production FX5U CPU module (AC power supply type): From first production
Number of occupied I/O points0 point (This number is not related to the maximum number of I/O points of the PLC.)
Mass (weight)Approx. 0.3 kg
Number of connectable modulesFX5UJ CPU module (AC power supply type): Up to 1 module*1 FX5U CPU module (AC power supply type): Up to 2 modules*2 *1: Only one FX5-1PSU-5V can be used for one system. *2: Up to two FX5-1PSU-5V and FX3U-1PSU-5V in total can be used for one system.

Power supply specifications

Rated Supply voltage100 to 240 V AC
Voltage fluctuation range-15%, +10%
Frequency rating50/60 Hz
Allowable instantaneous power failure timeOperation can be continued upon occurrence of instantaneous power failure for 10 ms or less.
Power fuse250 V, 3.15 A time-lag fuse
Rush current25 A max. 5 ms or less/100 V AC 50 A max. 5 ms or less/200 V AC
Power consumption20 W Max.
Output current (Supply for extension modules connected after this module.): 24 V DC300 mA Maximum output current depends on the ambient temperature. For details, refer to the manual.
Output current (Supply for extension modules connected after this module.): 5 V DC1200 mA Maximum output current depends on the ambient temperature. For details, refer to the manual.

The general specifications other than below are the same as those for the CPU module.

Dielectric withstand voltage: Between power supply terminal (AC power) and ground terminal1.5 kV AC for one minute
Insulation resistance: Between power supply terminal (AC power) and ground terminal10 MΩ or higher by 500 V DC insulation resistance tester
