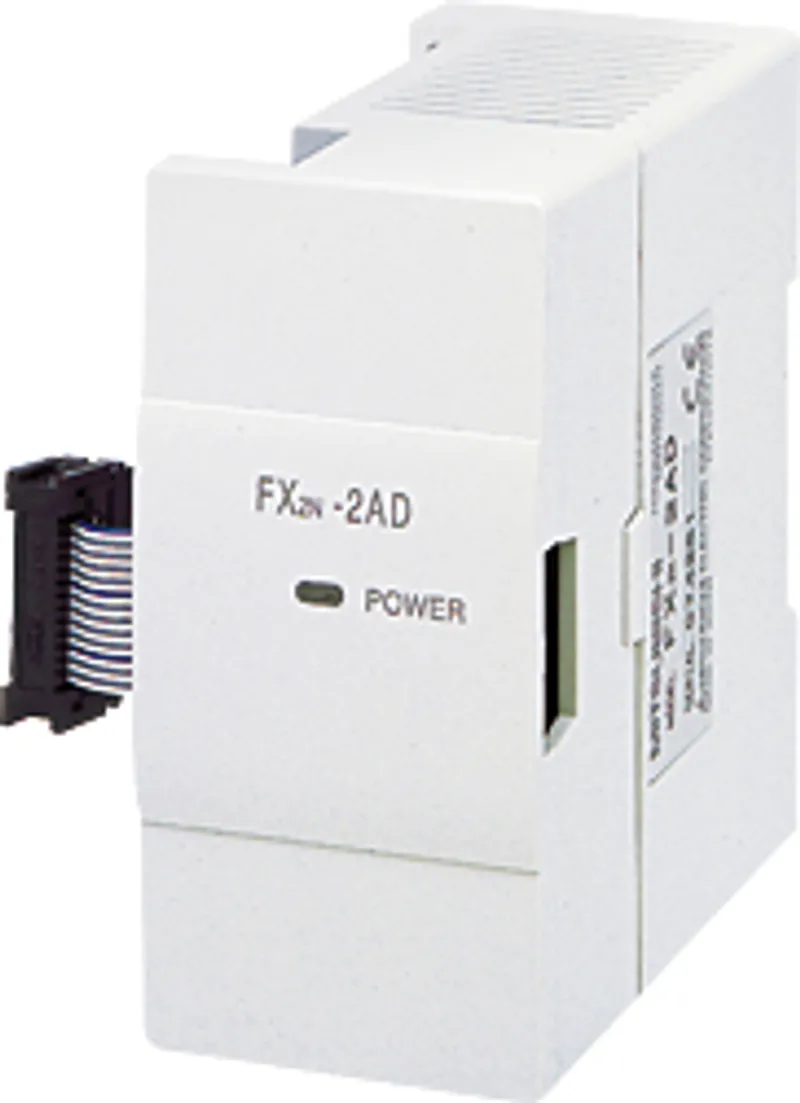

FX2N-2AD Mitsubishi MELSEC-F (FX) Series Analog

MPN: FX2N-2AD · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2N-2AD (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Analog
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX2N-2AD now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2N-2AD, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX2N-2AD be shipped?

FX2N-2AD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2N-2AD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2N-2AD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2N-2AD, subject to availability and destination.

The Mitsubishi Electric FX2N-2AD is a analog in the MELSEC-F (FX) Series. Analog input: 2 ch. Mitsubishi Electric has discontinued it (2023/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Analog
Sales status	2023/12 Discontinued (Mitsubishi Electric)
Outline	Analog input: 2 ch

Specifications

Applicable PLC	FX0N, FX1N, FX2N, FX3G, FX3U, FX2NC, FX3GC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC/FX3UC.
Number of occupied I/O points	8 points (Taken from either the input or output points of the PLC.)
Mass (weight)	0.2 kg
Analog input: Analog input range: Voltage input	0 V to 10 V DC, 0 V to 5 V DC(Input resistance 200kΩ)
Analog input: Analog input range: Current input	4 mA to 20 mA DC (Input resistance 250 Ω)
Analog input: Number of input channels	2 channels
Analog input: Absolute maximum input: Voltage input	-0.5 V, +15 V
Analog input: Absolute maximum input: Current input	-2 mA, +60 mA
Analog input: Input characteristics	• Voltage input and current input cannot be used together. • The input characteristics are the same for both channels. • The input characteristics can be adjusted with the OFFSET/GAIN volume.
Analog input: Digital output	12 bits, binary
Analog input: Resolution: Voltage input	0 V to 10 V DC: 2.5 mV (10 V × 1/4000) 0 V to 5 V DC: 1.25 mV (5 V × 1/4000)
Analog input: Resolution: Current input	4 μA (16 mA × 1/4000)
Analog input: Total accuracy: Voltage input	±1% (±0.1 V) for 10 V full scale Same for 0 V to 5 V DC input (±0.1V)
Analog input: Total accuracy: Current input	±1% (±0.16 mA) for 16 mA full scale
Analog input: A/D conversion time	2.5 ms/1 channel(Operation synchronized with sequence program)
Analog input: Isolation method	・The photocoupler is used to insulate the analog input area from the PLC. ・The DC/DC converter is used to insulate the analog input area from the power supply unit. ・Channels are not insulated from each other.

Power supply specifications

Power supply

5 V DC 20 mA (internal power supply from PLC main unit) 24 V DC ±10% 50 mA (internal power supply from PLC main unit)

Specifications

Ambient temperature	0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistance	Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
