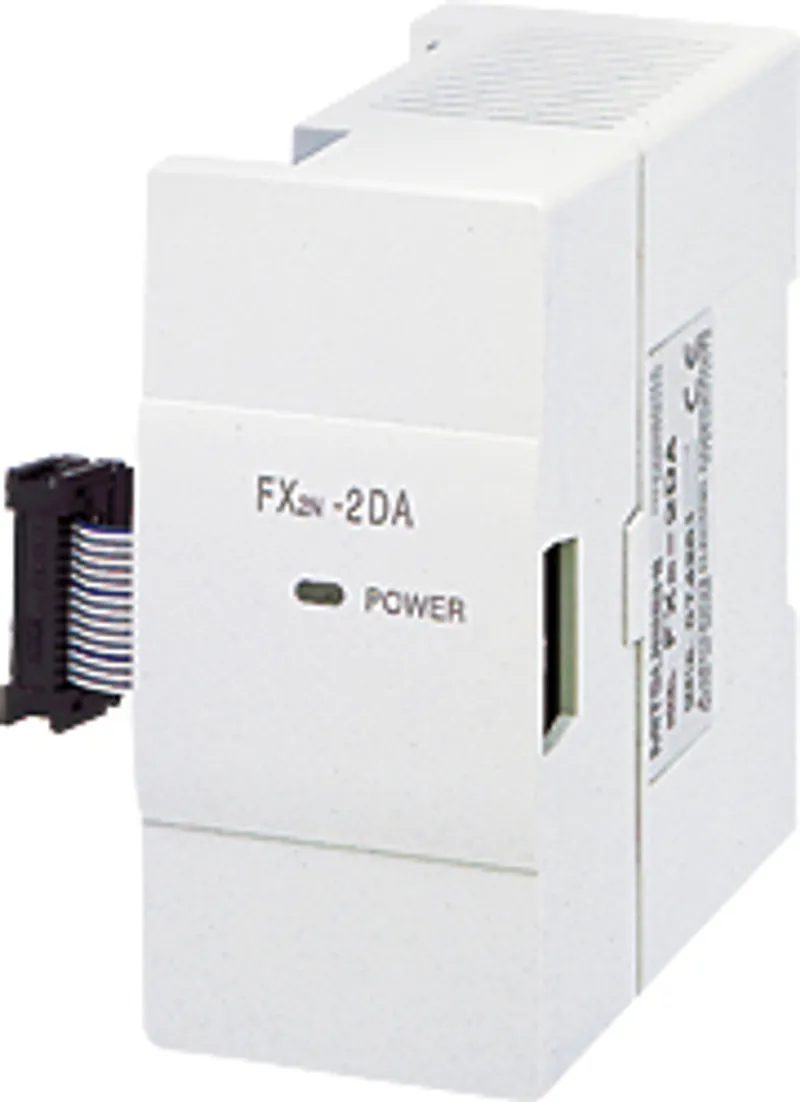

The Mitsubishi Electric FX2N-2DA is a analog in the MELSEC-F (FX) Series. Analog output: 2 ch. Mitsubishi Electric has discontinued it (2023/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Analog
Sales status	2023/12 Discontinued (Mitsubishi Electric)
Outline	Analog output: 2 ch

Specifications

Applicable PLC	FX0N, FX1N, FX2N, FX3G, FX3U, FX2NC, FX3GC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC/FX3UC.
Number of occupied I/O points	8 points (Taken from either the input or output points of the PLC.)
Mass (weight)	0.2 kg
Analog output: Analog output range: Voltage output	0 V to 10 V DC, 0 V to 5 V DC, (External load resistance: 2 k to 1 MΩ)
Analog output: Analog output range: Current output	4 mA to 20 mA DC (External load resistance: 400 Ω or less)
Analog output: No. of output channels	2 channels
Analog output: Output characteristics	• Voltage output, current output, or different output characteristics can be used together. • The output characteristics can be adjusted with the OFFSET/GAIN volume.
Analog output: Digital input	12 bits, binary
Analog output: Resolution: Voltage output	0 V to 10 V: 2.5 mV (10 V × 1/4000) 0 V to 5 V: 1.25 mV (5 V × 1/4000)
Analog output: Resolution: Current output	4 μA (16 mA × 1/4000)
Analog output: Total accuracy: Voltage output	±1% (±0.1 V) for 10 V full scale Same for 0 to 5 V DC output (±0.1 V)
Analog output: Total accuracy: Current output	±1% (±0.16 mA) for 16 mA full scale
Analog output: Time required for D/A conversion	4 ms/1 channel (Operation synchronized with sequence program)
Analog output: Isolation method	・The photocoupler is used to insulate the analog output area from the PLC. ・The DC/DC converter is used to insulate the analog output area from the power supply unit. ・Channels are not insulated from each other.

Power supply specifications

Power supply

5 V DC 30 mA (internal power supply from PLC main unit) 24 V DC ±10% 85 mA (internal power supply from PLC main unit)

Specifications

Ambient temperature	0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between batch of all terminals and ground terminal of PLC main unit: 500 V AC for 1 min
Insulation resistance	Between batch of all terminals and ground terminal of PLC main unit: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
