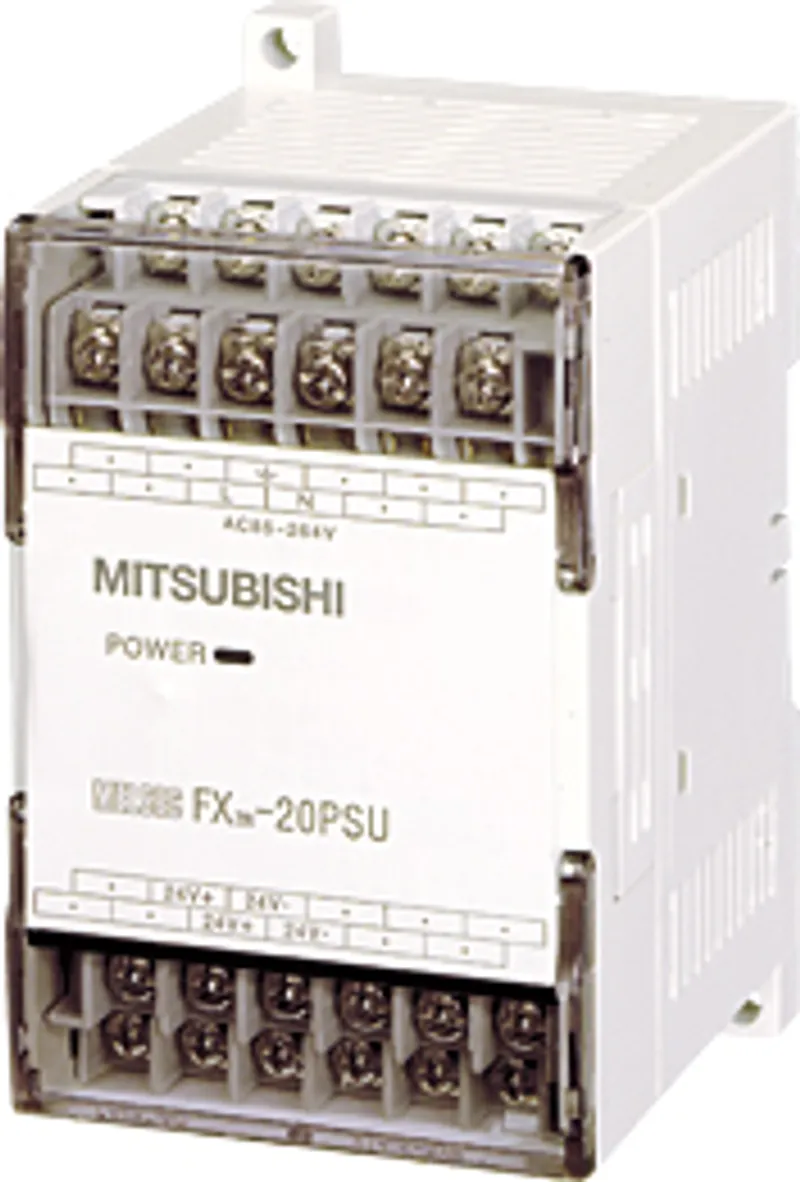

Mitsubishi Electric FX2N-20PSU

Mitsubishi MELSEC-F (FX) Series Option/Training

MPN
FX2N-20PSU
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2N-20PSU (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX2N-20PSU?

The Mitsubishi Electric FX2N-20PSU is a option/Training in the MELSEC-F (FX) Series. 24 V DC Power Supply Unit. Mitsubishi Electric has discontinued it (2015/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryOption/Training
Sales status2015/12 Discontinued (Mitsubishi Electric)
Outline24 V DC Power Supply Unit

Specifications

Input: Rated voltage100 to 240 V AC
Input: Allowable supply voltage range85 to 264 V AC
Input: Frequency50/60 Hz
Input: Fuse rating240 V 3.15 A (built in) Time-lag fuse
Input: Rush current60 A/200 V AC maximum
Output: Output voltage24 V DC±10%
Output: Output current2 A (maximum), 0.2 A (minimum) (Derating is performed if ambient temperature exceeds 40 °C.)
Output: Ripple noise500 mVp-p or below
Output: Retention time10 ms/100 V AC
Protection: Overvoltage protectionActuated when current becomes 110 - 160% or more, voltage drop occurs automatic recovery
Protection: Overcurrent protectionActuated when voltage becomes 110 - 140% or more, output shutsdown, no automatic recovery (diode clamp)
Output indicationGreen LED (POWER) is lit while voltage is output.
OthersSerial/parallel operation with other power supply units is not allowed.

FX2N-20PSU: frequently asked questions

Can I still buy the FX2N-20PSU now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2N-20PSU, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX2N-20PSU be shipped?

FX2N-20PSU is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2N-20PSU in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2N-20PSU and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2N-20PSU, subject to availability and destination.
