What is the Mitsubishi Electric FX2N-32CCL?

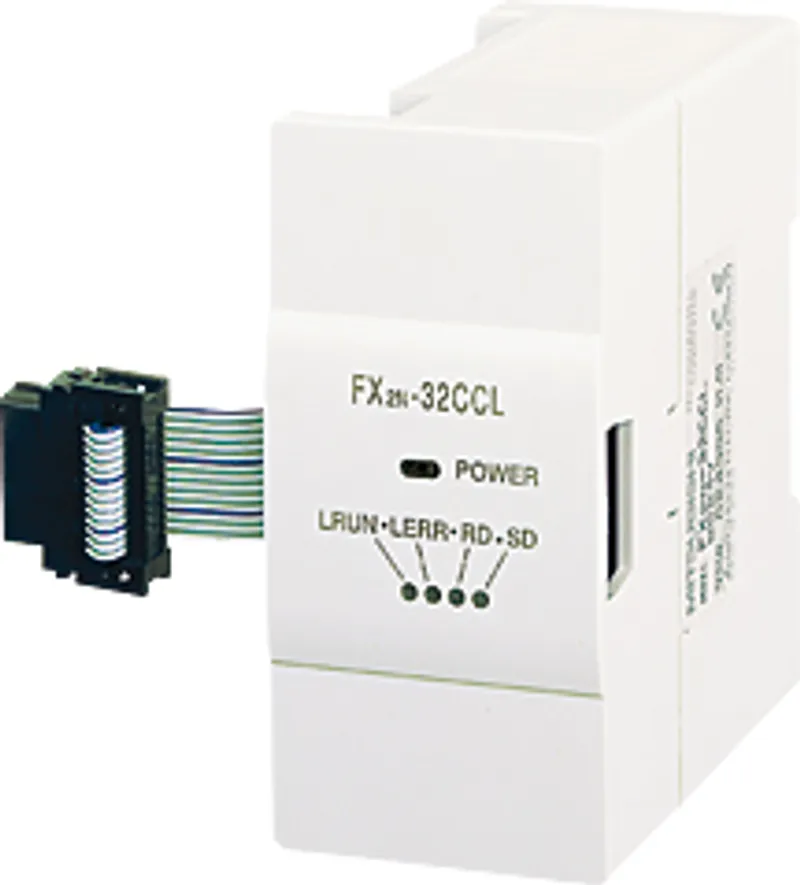

The Mitsubishi Electric FX2N-32CCL is a data link/Communication in the MELSEC-F (FX) Series. Remote device station for CC-Link. Mitsubishi Electric has discontinued it (2023/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryData link/Communication
Sales status2023/12 Discontinued (Mitsubishi Electric)
OutlineRemote device station for CC-Link

Specifications

CC-Link versionVer. 1.00
Applicable PLCFX1N, FX3G, FX2N, FX3U, FX1NC, FX3GC, FX2NC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX1NC, FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC, FX3UC.
Number of occupied I/O points8 points (Taken from either the input or output points of the PLC.)
Mass (weight)0.2 kg
Communication methodPolling method
Network topologyBus (RS-485)
Transmission speedSelectable (by rotary switch) among 156 kbps, 625 kbps, 2.5 Mbps, 5 Mbps and 10 Mbps
Transmission formatHDLC compliant
Synchronization methodFrame synchronization method
Encoding methodNRZI method
Error control systemCRC (X 16 + X 12 + X 5 + 1)
Station typeRemote device stations
Station number1 to 64 (set by rotary switch)
Number of occupied stations1 to 4 (set by rotary switch)
Maximum total cable length (maximum transmission distance)1,200 m maximum Varies depending on the transmission speed.
Number of remote I/O points32 remote input points and 32 remote output points are available in one station. However, the upper 16 points of the final station are occupied by the CC-Link as the system area.
Number of remote register pointsFour read points and four write points are available as remote registers in one station.
Number of link points per stationRemote I/O = 32/32 (RX/RY) points However, the upper 16 points of the final station are occupied by the CC-Link as the system area. Remote register = 4 (RWw) points (manager station→remote device station) Remote register = 4 (RWr) points (remote device station→manager station)
Connection cableCC-Link dedicated cable, CC-Link dedicated high-performance cable CC-Link dedicated cables and CC-Link dedicated high-performance cables cannot be used at the same time. Only either type of cables are available.
Communication with PLCBy FROM and TO instructions via the buffer memory
LEDRD, SD, L RUN, L ERR, POWER
Isolation methodNetwork bus and internal power supply are insulated each other by photocoupler.

Power supply specifications

Power supply5 V DC internal power supply: Supplied from PLC via extension cable) 24 V DC external power supply (24 V DC +/-10%): Supplied from external terminal
Current consumption5 V DC internal power supply: 130 mA 24 V DC external power supply: 50 mA

Specifications

Ambient temperature0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageBetween all points, terminal and ground: 500 V AC for 1 min
Insulation resistanceBetween all points, terminal and ground: 5 MΩ or higher by 500 V DC insulation resistance tester
GroundingClass D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
