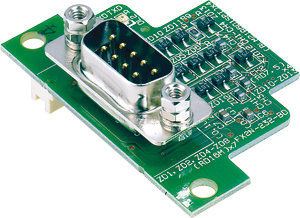

Mitsubishi Electric FX2N-232-BD

Mitsubishi MELSEC-F (FX) Series Data link/Communication

MPN
FX2N-232-BD
Price and lead time confirmed within 1 business day

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2N-232-BD (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Mitsubishi Electric (Factory Automation) parts? We buy surplus →

What is the Mitsubishi Electric FX2N-232-BD?

The Mitsubishi Electric FX2N-232-BD is a data link/Communication in the MELSEC-F (FX) Series. RS-232C communication. Mitsubishi Electric has discontinued it (2015/12 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

SeriesMELSEC-F (FX) Series
CategoryData link/Communication
Sales status2015/12 Discontinued (Mitsubishi Electric)
OutlineRS-232C communication

Specifications

Applicable PLCFX2N
Number of occupied I/O points0 point (This number is not related to the maximum number of input/output points of the PLC.)
Communication method: Connected to FX2N (Earlier than Ver. 2.00)Half-duplex, bidirectional communication
Communication method: Connected to FX2N (Ver. 2.00 or later)Full-duplex
Communication speed: Non-protocol communication, Computer link300/600/1200/2400/4800/9600/19200 (bps)
Communication speed: Programming communication9600/19200 (bps)
Communication formatNon-protocol communication, Computer link (Dedicated protocol formats 1, Dedicated protocol formats 4), Programming communication
Transmission standardRS-232C standard
Transmission distance15 m maximum
Connection method9-pin D-Sub connector (male)
LEDRXD, TXD
Isolation methodNot insulated

Power supply specifications

Power supply5 V DC 20 mA (internal power supply from PLC main unit)

Specifications

Ambient temperature0 to 55°C (32 to 131°F) when operating and -20 to 70°C (-4 to 158°F) when stored
Ambient humidity35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 HzHalf amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 HzAcceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 HzHalf amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 HzAcceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistanceBy noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltageNon-isolated between communication line and PLC main unit (Do not perform a withstand voltage test.)
Insulation resistanceNon-isolated between communication line and PLC main unit (Do not perform an insulation resistance test.)
Working atmosphereFree from corrosive or flammable gas and excessive conductive dusts
Working altitude2000 m or less The PLC cannot be used at a pressure higher than the atmospheric pressure to avoid damage.

FX2N-232-BD: frequently asked questions

Can I still buy the FX2N-232-BD now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2N-232-BD, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX2N-232-BD be shipped?

FX2N-232-BD is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2N-232-BD in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2N-232-BD and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2N-232-BD, subject to availability and destination.
