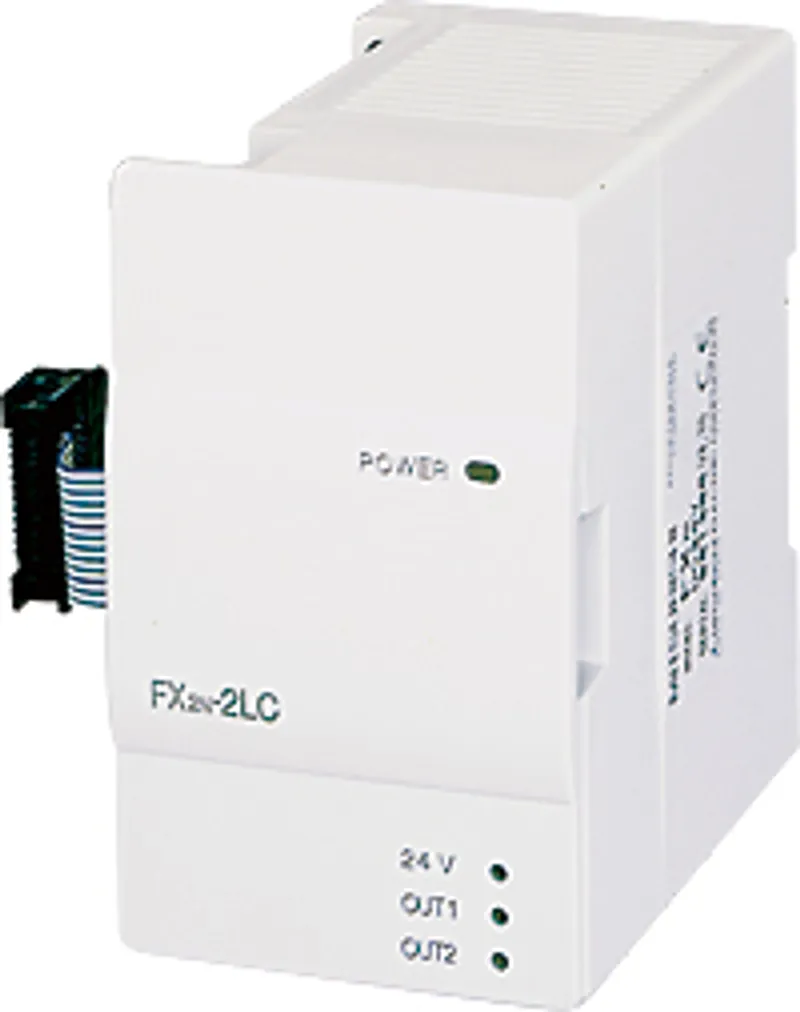

The Mitsubishi Electric FX2N-2LC is a analog in the MELSEC-F (FX) Series. Temperature sensor input (temperature adjustment): 2 ch. Mitsubishi Electric has discontinued it (2018/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Analog
Sales status	2018/03 Discontinued (Mitsubishi Electric)
Outline	Temperature sensor input (temperature adjustment): 2 ch

Specifications

Applicable PLC	FX1N, FX2N, FX3G, FX3U, FX2NC, FX3GC, FX3UC [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3GC/FX3UC.
Number of occupied I/O points	8 points (Taken from either the input or output points of the PLC.)
Mass (weight)	0.3 kg
Temperature sensor/Temperature control: No. of input points	2 points
Temperature sensor/Temperature control: Input type: Thermocouple	K, J, R, S, E, T, B, N, PLII, WRe5-26, U, L JISC 1602-1995
Temperature sensor/Temperature control: Input type: Resistance temperature detector	3-wire type Pt100 JIS C 1604-1997 JPt100 JIS C 1604-1981
Temperature sensor/Temperature control: Resolution	0.1℃ (0.1°F) or 1℃(1°F) Depends on the sensor input range.
Temperature sensor/Temperature control: Measurement precision	Ambient temperature: 23±5°C ±0.3% ±1 digit in input range Ambient temperature: 0°C to 55°C ±0.7% ±1 digit in input range Note that the B input 0 to 399°C (0 to 799°F) and PLII, WRe5-26 input 0 to 32°F are excluded from the guaranteed accuracy range.
Temperature sensor/Temperature control: Cold contact temperature compensation error	±1.0°C ±2.0°C if the input value is in the range from -150°C to -100°C ±3.0°C if the input value is in the range from -200°C to -150°C
Temperature sensor/Temperature control: Sampling period	500 ms
Temperature sensor/Temperature control: Effect of external resistance	Approx. 0.35 μV/Ω
Temperature sensor/Temperature control: Input impedance	1 MΩ or more
Temperature sensor/Temperature control: Sensor current	Approx. 0.3 mA
Temperature sensor/Temperature control: Operation when input is disconnected/Operation when input is short-circuited	Upscale/Downscale
Temperature sensor/Temperature control: Allowable input lead wire resistance	10Ω or less
Temperature sensor/Temperature control: Current detector (CT) input (Number of input points)	2 points
Temperature sensor/Temperature control: Current detector (CT) input (Measurement precision)	Larger one between ±5% of input value and ±2 A (Excluding precision of current detector)
Temperature sensor/Temperature control: Current detector (CT) input (Current detector)	CTL-12-S36-8, CTL-6-P-H (manufactured by U.R.D. Co., Ltd.)
Temperature sensor/Temperature control: Current detector (CT) input (Heater current measured value)	When CTL-12 is used: 0.0 to 100.0 A When CTL-6 is used: 0.0 to 30.0 A
Temperature sensor/Temperature control: Current detector (CT) input (Sampling period)	1 sec.
Temperature sensor/Temperature control: Control operation period	500 ms
Temperature sensor/Temperature control: Control system	Two-position control, PID control (Auto tuning function), PI control
Temperature sensor/Temperature control: Temperature measuring range: K	-200.0 to 200.0℃, -100.0 to 400.0℃, -100 to 1300℃, -100 to 800°F, -100 to 2400°F
Temperature sensor/Temperature control: Temperature measuring range: J	-200.0 to 200.0℃, -100.0 to 400.0℃, -100.0 to 800.0℃, -100 to 1200℃, -100 to 1600°F, -100 to 2100°F
Temperature sensor/Temperature control: Temperature measuring range: T	-200.0 to 200.0℃, -200.0 to 400.0℃, 0.0 to 400.0℃, -300.0 to 400.0°F, -300.0 to 700.0°F, 0.0 to 700.0°F
Temperature sensor/Temperature control: Temperature measuring range: S	0 to 1700℃, 0 to 3200°F
Temperature sensor/Temperature control: Temperature measuring range: R	0 to 1700℃, 0 to 3200°F
Temperature sensor/Temperature control: Temperature measuring range: E	-200.0 to 200.0℃, 0 to 1000℃, 0 to 1800°F
Temperature sensor/Temperature control: Temperature measuring range: B	0 to 1800℃, 0 to 3000°F
Temperature sensor/Temperature control: Temperature measuring range: N	0 to 1300℃, 0 to 2300°F
Temperature sensor/Temperature control: Temperature measuring range: PLII	0 to 1200℃, 0 to 2300°F
Temperature sensor/Temperature control: Temperature measuring range: Wre5-26	0 to 2300℃, 0 to 3000°F
Temperature sensor/Temperature control: Temperature measuring range: U	-200.0 to 600.0℃, -300.0 to 700.0°F
Temperature sensor/Temperature control: Temperature measuring range: L	0.0 to 900.0℃, 0 to 1600°F
Temperature sensor/Temperature control: Temperature measuring range: JPt100	-50.0 to 150.0℃, -200.0 to 500.0℃, -300.0 to 300.0°F, -300 to 900°F
Temperature sensor/Temperature control: Temperature measuring range: Pt100	-50.0 to 150.0℃, -200.0 to 600.0℃, -300.0 to 300.0°F, -300 to 1100°F
Temperature sensor/Temperature control: Heater disconnection detection	Alarm is detected by buffer memory (Variable within range from 0.0 to 100.0 A.)
Temperature sensor/Temperature control: Operation mode	0: Measured value monitor 1: Measured value monitor + Temperature alarm 2: Measured value monitor + Temperature alarm + Control (Selected by buffer memory)
Temperature sensor/Temperature control: Self-diagnostics function	Adjustment data check, input value check, watch dog timer check. When abnormality is detected, transistor output turns OFF.
Temperature sensor/Temperature control: Memory	Built-in EEPROM (Number of times of overwrite: 100,000 times)
Temperature sensor/Temperature control: Isolation method	・The photocoupler is used to insulate the analog input area from the PLC. ・The DC/DC converter is used to insulate the analog input area from the power supply unit. ・Channels are not insulated from each other.

Output specifications

No. of output points	2 points
Output method	NPN open collector transistor output
Rated load voltage	5 to 24 V DC
Maximum load voltage	30 V DC or less
Maximum load current	100 mA
Leak current in OFF status	0.1 mA or less
Max. voltage drop when ON	2.5 V (max), 1.0 V (TYP) when energized with 100 mA
Control output cycle	30 seconds (variable between 1 and 100 seconds)

Power supply specifications

Power supply

5 V DC 70 mA (internal power supply from PLC main unit) 24 V DC +10% -15% 55 mA (External power supply)

Specifications

Ambient temperature	0 to 55°C (32 to 131 °F) when operating and -25 to 75°C (-13 to 167 °F) when stored
Ambient humidity	5 to 95%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.075 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 57 to 150 Hz	Acceleration: 9.8 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	147 m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between analog input terminal and ground terminal: 500 V AC for 1 min
Insulation resistance	Between analog input terminal and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
