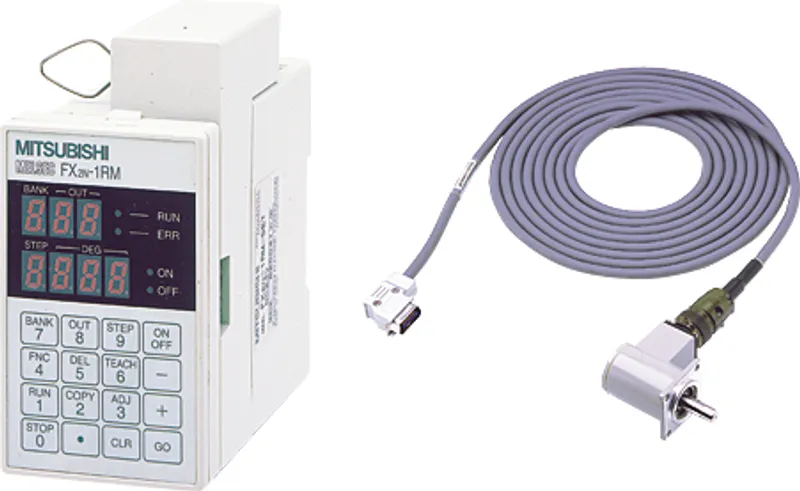

FX2N-1RM-E-SET Mitsubishi MELSEC-F (FX) Series Positioning

MPN: FX2N-1RM-E-SET · Brand: Mitsubishi Electric (Factory Automation)

Price on request

Discontinued by Mitsubishi Electric (Factory Automation) — we can still source the original FX2N-1RM-E-SET (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Mitsubishi MELSEC-F (FX) Series – Positioning
Lifecycle	Discontinued
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

Can I still buy the FX2N-1RM-E-SET now that it is discontinued?

Yes. Mitsubishi Electric (Factory Automation) has discontinued the FX2N-1RM-E-SET, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

When can FX2N-1RM-E-SET be shipped?

FX2N-1RM-E-SET is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up FX2N-1RM-E-SET in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for FX2N-1RM-E-SET and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for FX2N-1RM-E-SET, subject to availability and destination.

The Mitsubishi Electric FX2N-1RM-E-SET is a positioning in the MELSEC-F (FX) Series. Rotation angle detection. Mitsubishi Electric has discontinued it (2020/03 Discontinued); PartnerPLC sources discontinued Mitsubishi parts on the surplus market for maintenance of existing machines. Specifications and manuals below are Mitsubishi Electric's own data.

Specifications

Product

Series	MELSEC-F (FX) Series
Category	Positioning
Sales status	2020/03 Discontinued (Mitsubishi Electric)
Outline	Rotation angle detection

Specifications

Applicable PLC	FX2N (up to 3), FX3U (up to 3), FX2NC (up to 1), FX3UC (up to 3) * Up to 3 FX2N-1RM units can be connected to the PLC main unit at the end of the system. [Connecting to the connector-type PLC] The FX2NC-CNV-IF is required to connect the FX2NC. The FX2NC-CNV-IF or FX3UC-1PS-5V is required to connect the FX3UC.
Number of occupied I/O points	Number of I/O occupied 8 points (taken from either the input or output points of the PLC)
Mass (weight)	0.5 kg
Program memory	Built-in EEPROM memory (no battery)
Number of cam output points	48 internal output points. In addition, 48 points can be connected when transistor output extension blocks or triac output extension blocks are connected. Data is read by PLC. (When extension blocks are connected, up to 32 points can be turned on at a time.)
Detector	Brushless resolver (F2-720RSV for F2-32RM)
Control resolution	720 divisions/rotation (0.5 degree) or 360 divisions/rotation (1 degree)
Response speed	415 r/min/0.5 degree or 830 r/min/degree When the current angle transfer function is used, response speed becomes 207 r/min/0.5 degree or 415r/min/degree.
Number of program banks	8 banks (specified by PLC) or 4 banks (specified by external input)
Setting unit	Dedicated data setting unit (integrated add-on type) Peripheral equipment for PLC via PLC (Sequence program is required.)
Number of times of ON/OFF	8 times/cam output
Input	2 bank input points (code input of 0 to 3), 24 V DC, 7 mA Response time 3 ms, photocoupler isolation
Setting switch	RUN/PRG selector switch and 16 keys (input from data setting panel)
Resolver: Excitation method	Two-phase excitation, 1-phase output (5 kHz)
Resolver: Mechanical allowable rotation speed	3000 r/min
Resolver: Cable distance	100 m maximum
Resolver: Abrasion torque	0.0118N・m or less

Power supply specifications

Power supply voltage	24 V DC +10% -15% (External power supply)
Allowable instantaneous power failure time	Operation continues when the instantaneous power failure is shorter than 5 ms.
Power consumption	3 W (when operating individually), 5 W (at 32 points output ON)

Input specifications

Control input: Operation switch	PRG (program)/RUN (operation)
Control input: Bank input	B0, B1 (input a code between 0 to 3)
Input signal voltage	24 V DC±10%
Input signal form	Contact input or NPN/PNP open collector transistor input
Input signal current	7 mA/24 V DC
Input ON sensitivity	4.5 mA or more
Input OFF sensitivity	1.5 mA or less
Input receiving speed	Approx. 3 ms
Insulation of circuit	Photocoupler insulation
Indication of input operation	7-segment display

Output specifications

No. of output points	In addition, 48 points can be connected when transistor output extension blocks or triac output extension blocks are connected.
Output form	Depends on the dedicated output extension block for the FX PLC to be connected.
Output method	Depends on the dedicated output extension block for the FX PLC to be connected.
Rated load voltage	Depends on the dedicated output extension block for the FX PLC to be connected.
Maximum load current	Depends on the dedicated output extension block for the FX PLC to be connected.
Leak current in OFF status	Depends on the dedicated output extension block for the FX PLC to be connected.
Indication of output operation	Depends on the dedicated output extension block for the FX PLC to be connected.

Specifications

Ambient temperature	0 to 55°C when operating and -20 to 70°C when stored
Ambient humidity	35 to 85%RH (no condensation) when operating
Vibration resistance: Installed on DIN rail: Frequency: 10 to 57 Hz	Half amplitude: 0.035 mm Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Installed on DIN rail: Frequency: 57 to 150 Hz	Acceleration: 4.9 m/s 2 Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Vibration resistance: Direct installing: Frequency: 10 to 57 Hz	Half amplitude: 0.5 mm (2G maximum) Sweep Count for X, Y, Z: 10 times (80 min in each direction)
Shock resistance	98m/s 2 Acceleration, Action time: 11 ms, 3 times by half-sine pulse in each direction X, Y, and Z
Noise resistance	By noise simulator at noise voltage of 1,000 Vp-p, noise width of 1 μs, rise time of 1 ns and period of 30 to 100 Hz
Dielectric withstand voltage	Between batch of all terminals and ground terminal: 500 V AC for 1 min
Insulation resistance	Between batch of all terminals and ground terminal: 5 MΩ or higher by 500 V DC insulation resistance tester
Grounding	Class D grounding (grounding resistance: 100 Ω or less) (Common grounding with a heavy electrical system is not allowed) Ground the PLC independently or jointly.
Working atmosphere	Free from corrosive or flammable gas and excessive conductive dusts
Working altitude	2000 m or less Do not use the PLC under pressure higher than the atmospheric pressure. Doing so may damage the PLC.
