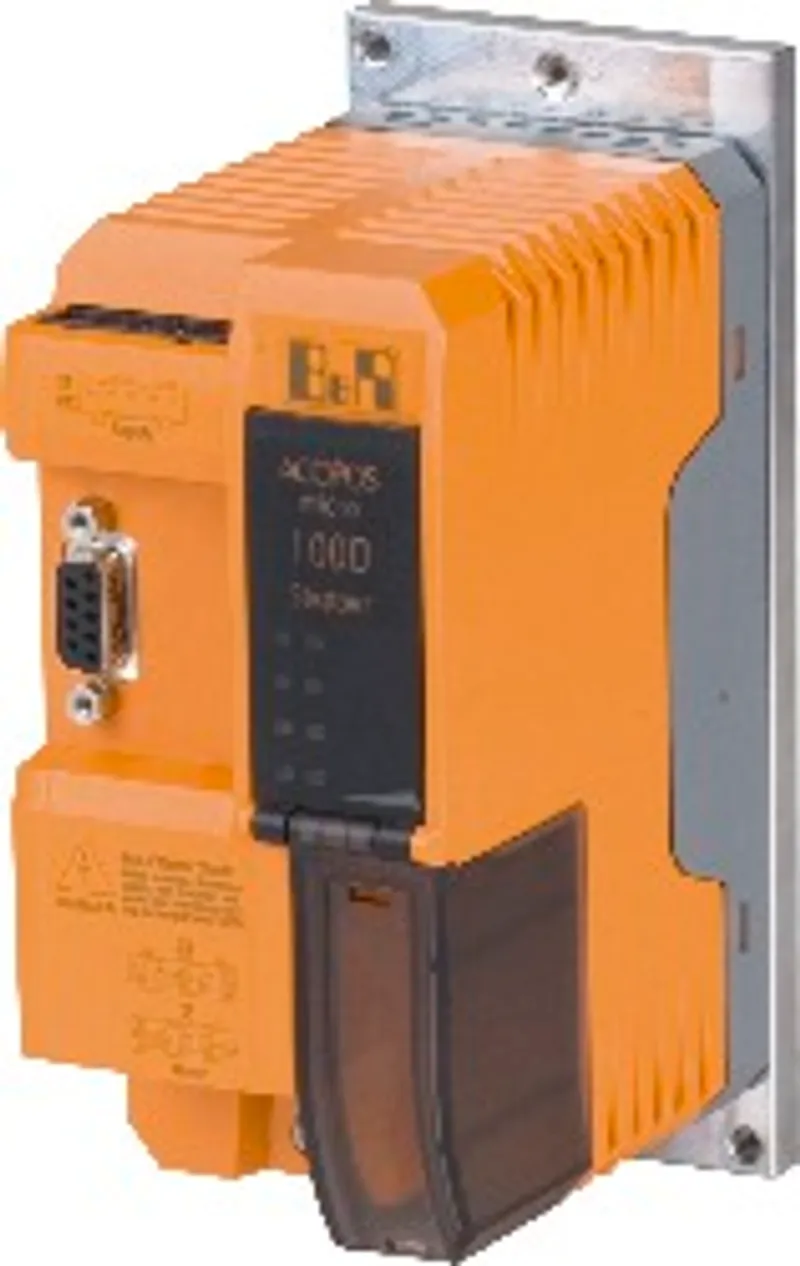

B&R 80SD100XD.C04X-13

Name: B&R 80SD100XD.C04X-13
Brand: B&R
SKU: 80SD100XD.C04X-13

MPN: 80SD100XD.C04X-13 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Stepper motor modules
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	700 kg

Shipping & availability

When can 80SD100XD.C04X-13 be shipped?

80SD100XD.C04X-13 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 80SD100XD.C04X-13 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 80SD100XD.C04X-13 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80SD100XD.C04X-13, subject to availability and destination.

Control for 2 stepper motors (2-phase bipolar, full bridge)256 microsteps per step1 incremental encoder input2 trigger inputsMotor holding brake connectionEnable inputAutomatic motor identificationHolding, boost and continuous current can be defined independent of one another4 digital inputs, 24 VDC, sink2 digital outputs, 24 VDC, 0.5 A ACOPOSmicro stepper motor module, X2X Link interface, 1x 24 V incremental encoder, 24-64 VDC ±25% power supply, 2 motor connections, 10 A continuous current, 2 digital inputs 24 VDC, sink, can be used as trigger inputs, 1 digital output 24 VDC, 1 A, 4 digital inputs 24 VDC, sink, configurable as incremental encoder, 2 digital outputs 24 VDC, 0.5 A order terminal blocks separately!

Specifications

Stepper motor module	Connection for 2 stepper motors with ABR incremental encoder, 2-phase bipolar
B&R ID code	0xA78D
Status indicators	X2X Link, operating state, module status, motor information
Module run/error	Yes, using LED status indicator and software
Module temperature / Cooling unit temperature	Yes, using software
Motor status	Yes, using LED status indicator and software
X2X Link	Yes, using LED status indicator
CPU - 24 VDC power supply	No
CPU - Power supply	Yes
CPU - Motor connection	Yes
CPU - Digital inputs	Yes
CPU - Enable inputs	Yes
CPU - Optional inputs/outputs	No
CPU - Encoder	No
CPU - Motor holding brake	No
CPU - X2X Link	Yes
CE	Yes
UKCA	Yes
CRA (Cyber Resilience Act)	In preparation
Functional safety	Yes
UL	cULus E225616 Power conversion equipment
KC	Yes
Input voltage	24 VDC ±25%
Voltage monitoring	Yes
CPU	Max. 7 W
X2X Link power supply	Generated internally from the CPU power supply
Reverse polarity protection	Yes
Inrush current	Max. 10 A
Idle (no motor powered)	Max. 0.5 W
Full load	See diagram "Dimensioning - Power dissipation from the power unit for each powered axis"
Inrush current limiting	Yes, PTC (min. 9 Ω), is bypassed during operation by means of relay contact.
Undervoltage cutoff	<18 VDC
Overvoltage cutoff	>95 VDC
Voltage measurement	Yes
Line protection	Must occur externally
Quantity	2
Nominal current	10 APeak
Max. current/motor	15 APeak (2 s)
Max. current/module	30 APeak
Nominal switching frequency	38.5 kHz
Max. motor line length	25 m
Step resolution	256 microsteps per full step
DC bus capacitance	940 µF
Nominal voltage	24 VDC
Continuous current per connection	1 A
Max. internal resistance	0.3 Ω
Resistive load	100 Hz
Inductive load	See section "Switching inductive loads"
Overload and short-circuit protection	Yes
Open-circuit monitoring	No
Undervoltage monitoring	Yes
Max. overcurrent limiting	8 A
Response threshold for undervoltage monitoring	≤11 VDC
Reference potential	GND for module power supply (X2 terminal, pin 10)
Variant	High-side current-sourcing FET
Min. X2X Link cycle time	250 μs
Type	KTY
Max. encoder cable length	25 m
Output voltage	24 V
Load capacity	40 mA
Overload-proof	Yes
Short-circuit proof	Yes
Low	<5 VDC
High	>15 VDC
Values	0 to 110 °C
Tolerance	5%
Signal form	Square wave pulse
Evaluation	Configurable
Counter size	16-bit
Input frequency	Max. 50 kHz
Counter frequency	Configurable
Input current at nominal voltage	Approx. 3.1 mA
Input circuit	Sink
Maximum	30 VDC
Insulation voltage between input and bus	500 Veff
Input capacitance	10 nF (Rev. < K0: 100 µF)
Additional functions	Incremental encoder, event counter, period or gate measurement
Nominal	24 VDC
Input resistance	Approx. 7.8 kΩ
Rising edge	[Instant recording] Typ. 2 µs
Falling edge	[Instant recording] Typ. 3 µs
Input - ACOPOS	No
Input - Input	No
Modulation compared to ground potential	Max. ±38 V
Pulse length	≥10 µs
Length of pause between pulses	≥10 µs
Switching voltage	24 VDC ±25%
Connection type	1-wire connections
Output circuit	Source
Output protection	Thermal shutdown in the event of overcurrent or short circuit
0 → 1	Max. 250 µs
1 → 0	Max. 270 µs
Braking voltage when switching off inductive loads	47 V
Supply voltage	From the 24 VDC power supply
Continuous current per output	0.5 A
Continuous current of all outputs	1.0 A
Switching on after overload shutdown	Typ. 10 ms (depends on the module temperature)
Horizontal	No
Vertical	Yes
Pollution degree per EN 61800-5-1	2 (non-conductive pollution)
Degree of protection per EN 60529	IP20
Operation	5 to 85 %, non-condensing
Storage	5 to 95%, non-condensing
Transport	5 to 95%, non-condensing
Note	Order terminal blocks and cables separately!
Mounting/Cooling	Screw mounting with heat spreader on mounting plate or cold-plate.
Width	65 mm
Height	134 mm
Depth	95 mm
Weight	700 g
Backplane	Always mount on conductive and earthed backplane.
