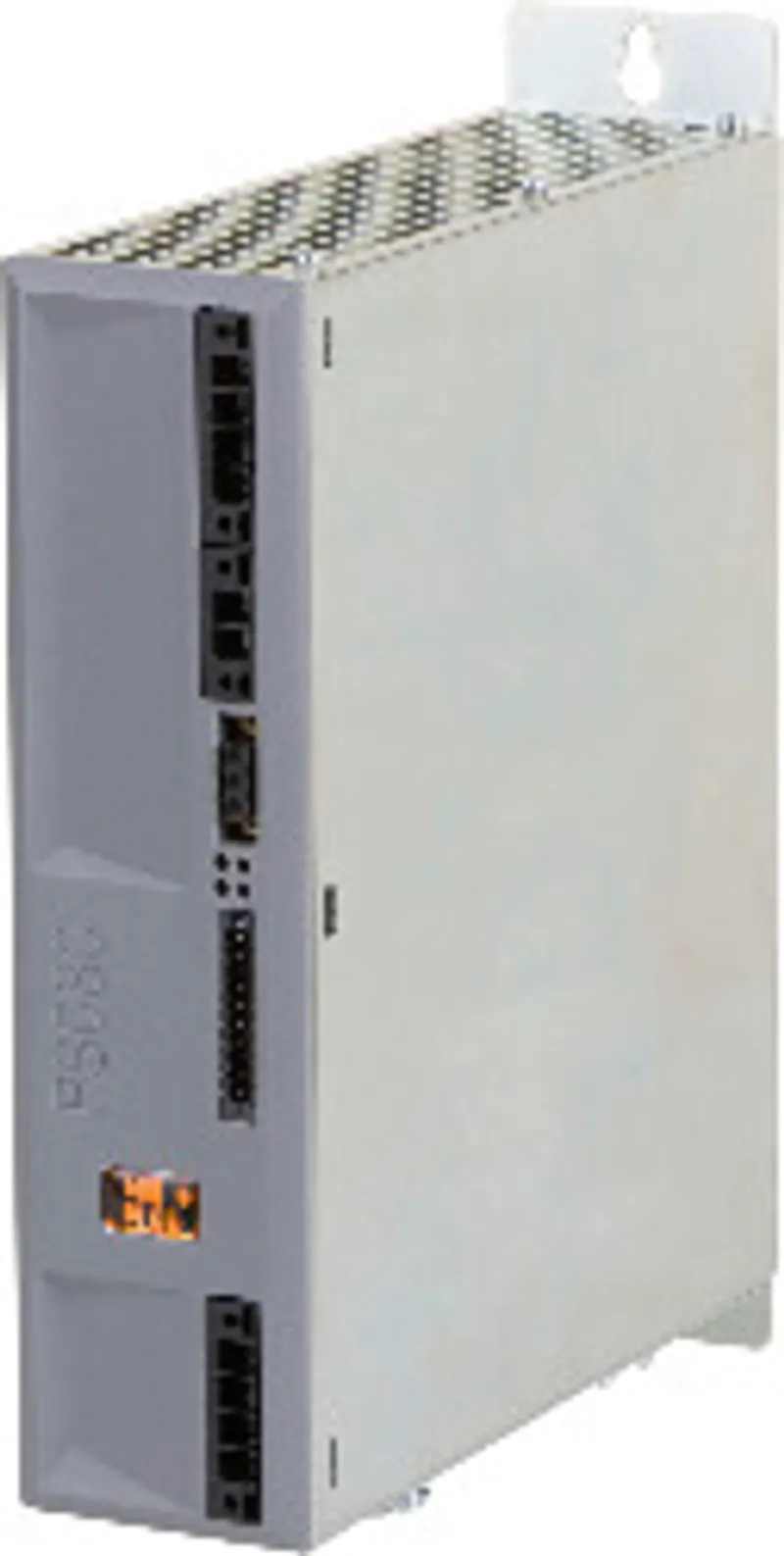

B&R 80PS080X3.10-01
Input: 3x 380 to 480 VAC ±10%; Output voltage adjustable via X2X Link
- MPN
- 80PS080X3.10-01
- Category
- Power supply modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 80PS080X3.10-01?
Input: 3x 380 to 480 VAC ±10%
Output voltage adjustable via X2X Link
Status information readable via X2X Link
Chopper output for connecting an external braking resistor
3-phase wide range input
Closed metal housing
Power supply module, Input 3x 380-480 VAC ±10%, Power output 24-80 VDC 16.6 A (max. 1000 W), Output 24 VDC 2 A, X2X Link interface, integrated brake chopper, wall mounting. Order terminal blocks separately!
Specifications
General information
| Power consumption – Bus | 0.8 W |
| Electrical isolation – Mains input - Power output | Yes |
| Electrical isolation – Mains input - 24 VDC | Yes |
| Electrical isolation – Power output - 24 VDC | No |
| Electrical isolation – X2X Link - Mains input | Yes |
| Electrical isolation – X2X Link - Power output | Yes |
| Electrical isolation – X2X Link - 24 VDC | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| B&R ID code | 0xA7A9 |
| Status LED | Yes |
| Connection type | Maximum 25 m line length to the power supply module |
Mains input
| Fuse protection – Internal | Each phase internally fused (5 A) |
| Fuse protection – External | External fuse required for line protection |
| Input voltage range | 3x 380 to 480 VAC ±10% |
| Input current at full load | 3x 2.2 A at 400 VAC; 3x 1.8 A at 480 VAC |
| Frequency range of mains voltage | 50 to 60 Hz ±5% |
| Phase failure detector | Yes |
| Power failure bypass | 10 ms (at full load) |
| Power factor (cos φ) | 0.72 @ 400 V 1 kW; 0.69 @ 480 V 1 kW |
| Leakage current to PE | <3.5 mA |
| Protective circuit | Transient surge protection with varistor |
Power output
| Output current – 24 to 60 VDC | Max. 16.6 A continuous current |
| Output current – 60 to 80 VDC | Max. 16.6 to 12.5 A continuous current |
| Overload/Pulse capacity – Overload current | 20% overcurrent |
| Overload/Pulse capacity – Overload duration | 2 s |
| Output power | Max. 1000 W continuous power |
| Output protection | Short-circuit, overload and no-load proof |
| Control accuracy | ±2% |
| Power back immunity | Yes, <100 VDC |
| Output voltage | 24 to 80 VDC (note: Adjustable via X2X communication.) |
| Switch-on time | <5 s (does not apply during firmware update) |
| Parallel connection | Yes, max. 3 power supply units, for redundancy and increased power |
| Series connection | No |
| Max. capacitive load | Unlimited |
24 VDC voltage output
| Voltage range | 24 VDC ±10% |
| Output current | Max. 2 A continuous current |
| Output protection | Short-circuit, overload and no-load proof |
| Parallel connection | No |
Chopper output
| Output current / Output power – Continuous current / Continuous power | 30 A |
| Output current / Output power – Maximum current / Maximum power | 40 A |
| Response threshold for chopper activation | 29 to 95 VDC (adjustable) |
| Overtemperature protection (chopper-internal) | Yes |
Interfaces
| User interface – Variant | 10-pin terminal block |
| User interface – Type | X2X Link |
| User interface – Min. X2X Link cycle time | 250 µs |
Efficiency, reliability
| Power dissipation – Rated load | 90 W |
| Power dissipation – No-load operation | 30 W |
| Efficiency | >92% |
Operating conditions
| Mounting orientation – Vertical | Yes |
| Ventilation/Cooling | Internally controlled fan |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 50°C |
| Temperature – Storage | -25 to 85°C |
| Temperature – Transport | -25 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Dimensions – Width | 67.5 mm |
| Dimensions – Height | 257 mm |
| Dimensions – Depth | 219 mm |
| Material | Robust metal housing |
| Weight | 3.75 kg |
Accessories
Required accessories (order separately)
| 80XPS080X3.10-01A | Terminal block sets — Screw clamp terminal block set for 80PS080X3.10-01: 1x 0TB3104-7021, 1x 0TB3104-7022, 1x 0TB3102-7010, 1x 0TB1110.8010, 1x 0TB103.3 |
Optional accessories (1)
| 80XBR0025.010-11 | Braking resistor — Braking resistor for power supply module 80PS080X3.10-01 2.5 Ω 100 W |
