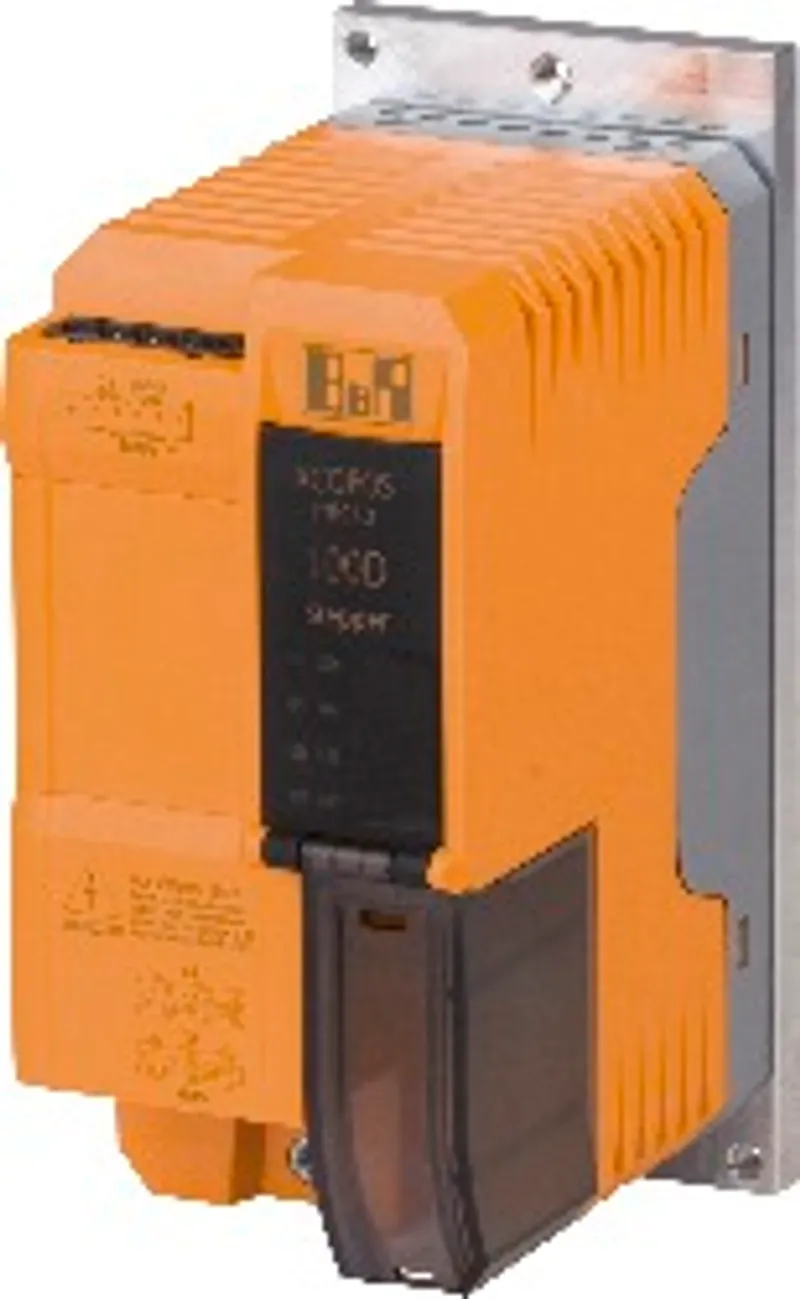

What is the B&R 80SD100XD.C0XX-21?
Control for 2 stepper motors (2-phase bipolar, full bridge)
256 microsteps per step
2 trigger inputs
Motor holding brake connection
Enable input
2 analog inputs
Automatic motor identification
Holding, boost and continuous current can be defined independent of one another
ACOPOSmicro stepper motor module, X2X Link interface, 24-64 VDC ±25% power supply, 2 motor connections, 10 A continuous current, 2 digital inputs 24 VDC, sink, can be used as trigger inputs, 1 digital output 24 VDC, 1 A, 2 analog inputs ±10 V, 13-bit, order terminal blocks separately!
Specifications
Short description
| Stepper motor module | Connection for two stepper motors without encoder, 2-phase bipolar |
General information
| Diagnostics – Module run/error | Yes, using LED status indicator and software |
| Diagnostics – Module temperature / Cooling unit temperature | Yes, using software |
| Diagnostics – Motor status | Yes, using LED status indicator and software |
| Diagnostics – X2X Link | Yes, using LED status indicator |
| Electrical isolation – CPU - 24 VDC power supply | No |
| Electrical isolation – CPU - Power supply | Yes |
| Electrical isolation – CPU - Motor connection | Yes |
| Electrical isolation – CPU - Digital inputs | Yes |
| Electrical isolation – CPU - Enable inputs | Yes |
| Electrical isolation – CPU - Optional inputs/outputs | No |
| Electrical isolation – CPU - Motor holding brake | No |
| Electrical isolation – CPU - X2X Link | Yes |
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – Functional safety | Yes |
| Certifications – UL | cULus E225616; Power conversion equipment |
| Certifications – KC | Yes |
| B&R ID code | 0xA78E |
| Status indicators | X2X Link, operating state, module status, motor information |
24 VDC power supply
| Power consumption – CPU | Max. 6 W (note: Includes the enable input) |
| Power consumption – X2X Link power supply | Generated internally from the CPU power supply |
| Input voltage | 24 VDC ±25% |
| Voltage monitoring | Yes |
| Reverse polarity protection | Yes |
Power supply
| Power consumption – Idle (no motor powered) | Max. 0.5 W |
| Power consumption – Full load | See diagram "Dimensioning - Power dissipation from the power unit for each powered axis" |
| Input voltage | 24 to 64 VDC ±25% |
| Inrush current | Max. 10 A |
| Inrush current limiting | Yes, PTC (min. 9 Ω), is bypassed during operation by means of relay contact. |
| Undervoltage cutoff | <18 VDC |
| Overvoltage cutoff | >95 VDC |
| Voltage measurement | Yes |
| Line protection | Must occur externally |
| Reverse polarity protection | Yes |
Motor connection
| Quantity | 2 |
| Nominal current | 10 A Peak |
| Max. current/motor | 15 A Peak (2 s) |
| Max. current/module | 30 A Peak |
| Nominal switching frequency | 38.5 kHz |
| Max. motor line length | 25 m |
| Step resolution | 256 microsteps per full step |
| DC bus capacitance | 940 µF |
Motor holding brake connection
| Switching frequency – Resistive load | 100 Hz |
| Switching frequency – Inductive load | See section "Switching inductive loads" |
| Protective measures – Overload and short-circuit protection | Yes |
| Protective measures – Open-circuit monitoring | No |
| Protective measures – Undervoltage monitoring | Yes |
| Quantity | 1 |
| Nominal voltage | 24 VDC |
| Input voltage | 24 VDC ±25% |
| Continuous current per connection | 1 A |
| Max. internal resistance | 0.3 Ω |
| Max. overcurrent limiting | 8 A |
| Response threshold for undervoltage monitoring | ≤11 VDC |
| Reference potential | GND for module power supply (X2 terminal, pin 10) |
Interfaces
| X2X – Variant | 4-pin male connector |
| X2X – Min. X2X Link cycle time | 250 μs |
Enable inputs
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Switching delay at nominal input voltage – Maximum | 450 ms (Rev. < K0: 452 ms) |
| Switching delay at nominal input voltage – Maximum | 500 ms |
| Quantity | 1 |
| Nominal voltage | 24 VDC |
| Input voltage | 24 VDC ±25% |
| Input current at nominal voltage | Typ. 60 mA |
| Input circuit | Sink |
| Insulation voltage between input and bus | 500 V eff |
| Input capacitance | 10 nF (Rev. < K0: 100 µF) |
Digital inputs / Trigger inputs
| Input voltage – Nominal | 24 VDC |
| Input voltage – Maximum | 30 VDC |
| Switching threshold – Low | <5 VDC |
| Switching threshold – High | >15 VDC |
| Switching delay – Rising edge | [Instant recording] Typ. 3 µs |
| Switching delay – Falling edge | [Instant recording] Typ. 4 µs |
| Electrical isolation – Input - ACOPOS | Yes, 500 V eff |
| Electrical isolation – Input - Input | Yes, 500 V eff |
| Quantity | 2 |
| Additional functions | Can be used as trigger input |
| Input circuit | Sink |
| Input current at nominal voltage | Approx. 7.5 mA |
| Input resistance | Approx. 3.2 kΩ |
| Modulation compared to ground potential | Max. ±38 V |
Analog inputs (option board)
| Output format – Data type | INT |
| Output format – Voltage | 0x8001 - 0x7FFF / 1 LSB = 0x0008 = 2.441 mV |
| Output of digital value during overload – Overshoot | 0x7FFF |
| Output of digital value during overload – Undershoot | 0x8001 |
| Input filter – Hardware | Third-order low-pass filter, cutoff frequency 10 kHz |
| Max. error at 25°C – Gain | 0.08 % |
| Max. error at 25°C – Offset | 0.015% |
| Common-mode rejection – DC | 70 dB |
| Common-mode rejection – 50 Hz | 70 dB |
| Quantity | 2 |
| Input signal | ±10 V |
| Input type | Differential input |
| Digital converter resolution | 13-bit |
| Conversion time | 50 µs for all channels |
| Input impedance in signal range | 20 MΩ |
| Input protection | Protection against wiring with CPU supply voltage |
| Permissible input signal | Max. ±30 V |
| Conversion method | SAR |
| Common-mode range | ±12 V |
Operating conditions
| Mounting orientation – Horizontal | No |
| Mounting orientation – Vertical | Yes |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 45 °C |
| Temperature – Storage | -25 to 55 °C |
| Temperature – Transport | -25 to 55 °C |
| Relative humidity – Operation | 5 to 85 %, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Mechanical properties
| Dimensions – Width | 65 mm (note: Without heat spreader) |
| Dimensions – Height | 134 mm (note: Without heat spreader) |
| Dimensions – Depth | 95 mm (note: Without heat spreader) |
| Note | Order terminal blocks and cables separately! |
| Mounting/Cooling | Screw mounting with heat spreader on mounting plate or cold-plate. |
| Weight | 650 g |
| Backplane | Always mount on conductive and earthed backplane. |
Accessories
Required accessories (order separately)
| 80XSD100XD.C0-21B | Terminal block sets — Cage clamp terminal block set for ACOPOSmicro modules 80SD100XD.xxxx-21: 1x 0TB1110.8110, 1x 0TB1106.8110, 1x 0TB2105.4121-01, 1x 0TB2105.4… |
| 80XSD100XD.C0-21A | Terminal block sets — Screw clamp terminal block set for ACOPOSmicro modules 80SD100XD.xxxx-21: 1x 0TB1110.8010, 1x 0TB1106.8010, 1x 0TB2105.4021, 1x 0TB2105.402… |
Optional accessories (4)
| 80XSC0000.00-10 | Hose clamps — Accessory for ACOPOSmicro: 10x hose clamp, B 9 mm, D 8-12 mm |
| 80XSC0000.00-01 | Hose clamps — Accessory for ACOPOSmicro: 1x hose clamp, B 9 mm, D 8-12 mm |
| 0TB1310.8110 | Terminal blocks — Accessory terminal block, 3x 10-pin, cage clamp terminal block 1.5 mm², protected against vibration by the screw flange, with labeling |
| 0TB1310.3100 | Terminal blocks — Accessory terminal block, 3x 10-pin, cage clamp terminal block, 1.5 mm², protected against vibration by the screw flange |
