B&R 80SD100XD.C033-01
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Stepper motor modules |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 700 kg |
Shipping & availability
When can 80SD100XD.C033-01 be shipped?
80SD100XD.C033-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 80SD100XD.C033-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 80SD100XD.C033-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80SD100XD.C033-01, subject to availability and destination.

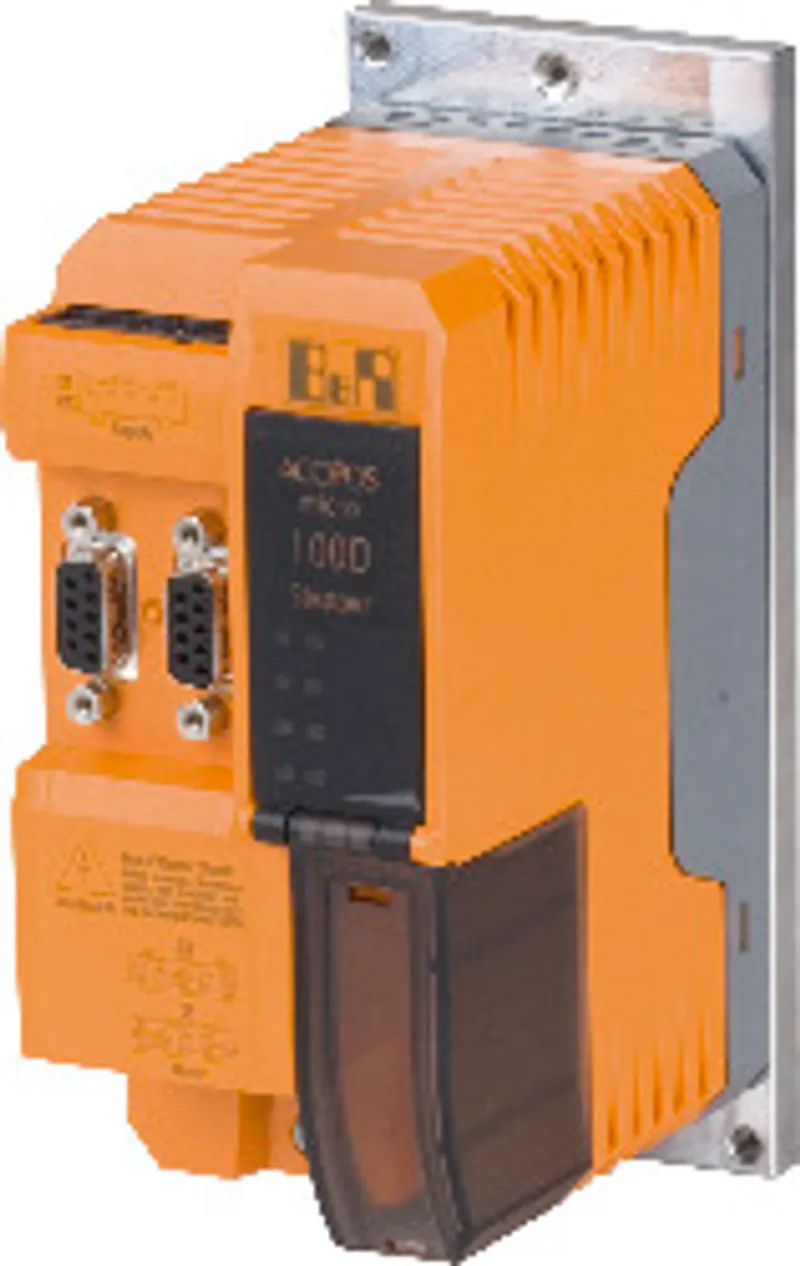

Control for 2 stepper motors (2-phase bipolar, full bridge)256 microsteps per step2 SSI encoder inputs2 trigger inputsMotor holding brake connectionEnable inputAutomatic motor identificationHolding, boost and continuous current can be defined independent of one another ACOPOSmicro stepper motor module, X2X Link interface, 2x 5 V SSI absolute encoder, 24-64 VDC ±25% power supply, 2 motor connections, 10 A continuous current, 2 digital inputs 24 VDC, sink, can be used as trigger inputs, 1 digital output 24 VDC, 1 A, order terminal blocks separately!
Specifications
Specifications
| Stepper motor module | Connection for 2 stepper motors with SSI absolute encoder, 2-phase bipolar |
| B&R ID code | 0xB178 |
| Status indicators | X2X Link, operating state, module status, motor information |
| Module run/error | Yes, using LED status indicator and software |
| Module temperature / Cooling unit temperature | Yes, using software |
| Motor status | Yes, using LED status indicator and software |
| X2X Link | Yes, using LED status indicator |
| CPU - 24 VDC power supply | No |
| CPU - Power supply | Yes |
| CPU - Motor connection | Yes |
| CPU - Digital inputs | Yes |
| CPU - Enable inputs | Yes |
| CPU - Encoder | No |
| CPU - Motor holding brake | No |
| CPU - X2X Link | Yes |
| CE | Yes |
| UKCA | Yes |
| CRA (Cyber Resilience Act) | In preparation |
| Functional safety | Yes |
| UL | cULus E225616 Power conversion equipment |
| KC | Yes |
| Input voltage | 24 VDC ±25% |
| Voltage monitoring | Yes |
| CPU | Max. 8 W |
| X2X Link power supply | Generated internally from the CPU power supply |
| Reverse polarity protection | Yes |
| Inrush current | Max. 10 A |
| Idle (no motor powered) | Max. 0.5 W |
| Full load | See diagram "Dimensioning - Power dissipation from the power unit for each powered axis" |
| Inrush current limiting | Yes, PTC (min. 9 Ω), is bypassed during operation by means of relay contact. |
| Undervoltage cutoff | <18 VDC |
| Overvoltage cutoff | >95 VDC |
| Voltage measurement | Yes |
| Line protection | Must occur externally |
| Quantity | 2 |
| Nominal current | 10 APeak |
| Max. current/motor | 15 APeak (2 s) |
| Max. current/module | 30 APeak |
| Nominal switching frequency | 38.5 kHz |
| Max. motor line length | 25 m |
| Step resolution | 256 microsteps per full step |
| DC bus capacitance | 940 µF |
| Nominal voltage | 24 VDC |
| Continuous current per connection | 1 A |
| Max. internal resistance | 0.3 Ω |
| Resistive load | 100 kHz |
| Inductive load | See section "Switching inductive loads" |
| Overload and short-circuit protection | Yes |
| Open-circuit monitoring | No |
| Undervoltage monitoring | Yes |
| Max. overcurrent limiting | 8 A |
| Response threshold for undervoltage monitoring | ≤11 VDC |
| Reference potential | GND for module power supply (X2 terminal, pin 10) |
| Variant | 4-pin male connector |
| Min. X2X Link cycle time | 250 μs |
| Type | SSI absolute encoder |
| Max. encoder cable length | 25 m |
| Output voltage | 24 V |
| Load capacity | 80 mA |
| Overload-proof | Yes |
| Short-circuit proof | Yes |
| Signal transmission | RS485 |
| Coding | Gray, binary |
| Word size | Max. 32-bit |
| Max. signal delay | ≤1.25 µs |
| Differential voltage | Typ. 2.5 V |
| Data transfer rate | Configurable (max. 1 Mbit/s) |
| Input current at nominal voltage | Approx. 7.5 mA |
| Input circuit | Sink |
| Low | <5 VDC |
| High | >15 VDC |
| Maximum | 30 VDC |
| Insulation voltage between input and bus | 500 Veff |
| Input capacitance | 10 nF (Rev. < K0: 100 µF) |
| Additional functions | Can be used as trigger input |
| Nominal | 24 VDC |
| Input resistance | Approx. 3.2 kΩ |
| Rising edge | [Instant recording] Typ. 3 µs |
| Falling edge | [Instant recording] Typ. 4 µs |
| Input - ACOPOS | Yes, 500 Veff |
| Input - Input | Yes, 500 Veff |
| Modulation compared to ground potential | Max. ±38 V |
| Horizontal | No |
| Vertical | Yes |
| Pollution degree per EN 61800-5-1 | 2 (non-conductive pollution) |
| Degree of protection per EN 60529 | IP20 |
| Operation | 5 to 85 %, non-condensing |
| Storage | 5 to 95%, non-condensing |
| Transport | 5 to 95%, non-condensing |
| Note | Order terminal blocks and cables separately! |
| Mounting/Cooling | Screw mounting with heat spreader on mounting plate or cold-plate. |
| Width | 65 mm |
| Height | 134 mm |
| Depth | 95 mm |
| Weight | 700 g |
| Backplane | Always mount on conductive and earthed backplane. |
