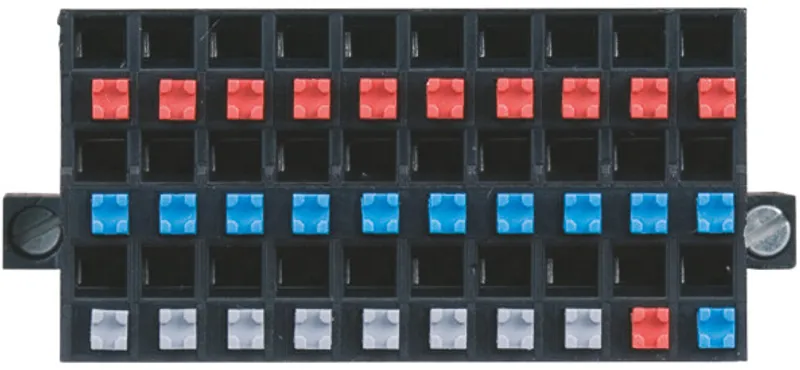

B&R 0TB1310.3100

Accessory terminal block, 3x 10-pin

MPN: 0TB1310.3100
Category: Terminal blocks

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 0TB1310.3100?

Accessory terminal block, 3x 10-pin, cage clamp terminal block, 1.5 mm², protected against vibration by the screw flange

Specifications

Terminal block

Connection cross section – AWG wire	24 to 16 AWG
Connection cross section – Wire end sleeves with plastic covering	0.20 to 0.75 mm²
Connection cross section – Single-wire	0.20 to 1.50 mm²
Connection cross section – Fine-stranded wires	0.20 to 1.50 mm²
Connection cross section – With wire end sleeve	0.20 to 1.00 mm²
Note	Nominal data per UL
Number of pins	30
Type of terminal block	Cage clamp terminal block variant
Cable type	Only copper wires (no aluminum wires!)
Pitch	3.5 mm
Wire stripping length	8 mm

Electrical properties

Nominal voltage	300 V
Nominal current	5 A / contact or busbar (note: The respective limit data of the I/O modules must be taken into account!)
Contact resistance	≤4.2 mΩ

Downloads & documentation

Official documents from B&R, downloaded directly from the manufacturer.

Certificates (1)

EU Declaration ACOPOSmicroPDF · 201 KB · 2024-04 (04/23/2024)

0TB1310.3100: frequently asked questions

When can 0TB1310.3100 be shipped?

0TB1310.3100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 0TB1310.3100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 0TB1310.3100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 0TB1310.3100, subject to availability and destination.
