B&R 80MPH6.600S114-01

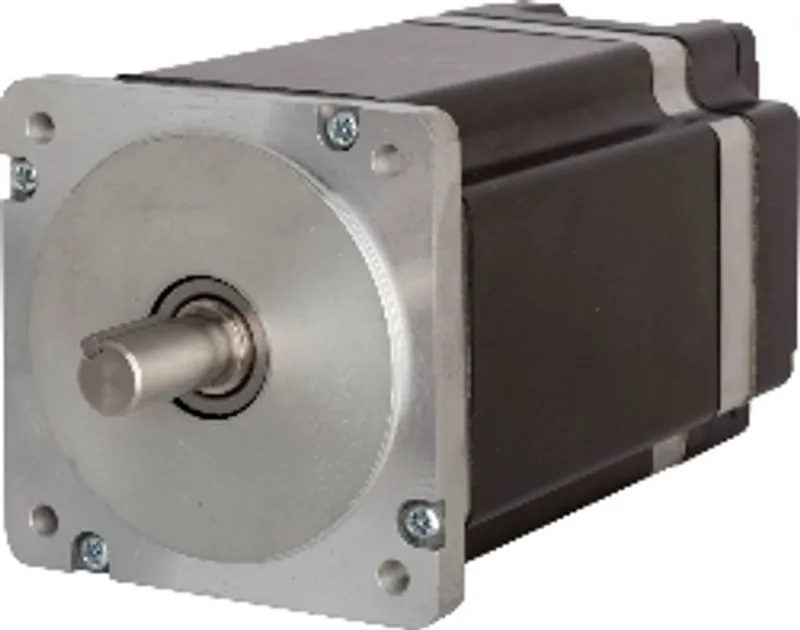

2-phase hybrid stepper motor, 87.1 mm flange
- MPN
- 80MPH6.600S114-01
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the B&R 80MPH6.600S114-01?
2-phase hybrid stepper motor, 87.1 mm flange, length 181.5 mm, ABR 24 VDC, 6 A parallel, 13.6 Nm holding torque, 9.3 Nm stall torque
Specifications
Short description
| Stepper motor | Stepper motor flange size 87.1 mm, length 181.5 mm, incremental encoder |
General information
| Certifications – CE | Yes |
| Certifications – UKCA | Yes |
| Certifications – CRA (Cyber Resilience Act) | Not applicable |
| Certifications – UL | cURus E360421; Servo and stepper motors - Component |
Specific motor data
| Wiring | Parallel |
| Current | 6 A |
| Resistance/Phase | 0.7 Ω |
| Inductance/Phase | 5.0 mH |
| Stall torque | 9.3 Nm |
| Holding torque | 13.6 Nm |
| Detent torque | <420 mNm |
| Rotor inertia | Approx. 3.92 kgcm 2 |
General motor data
| Stepping angle | 1.8° |
| Max. surface temperature | 95°C |
| Average period of operation between failures | 20,000 hours |
| Shaft type | With key |
| Insulation class | B (130°C) |
| Insulation resistance | 100 MΩ min. 500 VDC |
| Dielectric resistance | 1776 VAC for 1 minute |
| Driver supply voltage | Max. 80 VDC |
Operating conditions
| Degree of protection per EN 60529 | IP65 (note: From back of flange) |
Ambient conditions
| Temperature – Operation | -20 to 40°C |
| Temperature – Storage | -30 to 85°C |
| Temperature – Transport | -30 to 85°C |
| Relative humidity – Operation | 5 to 95%, non-condensing |
| Relative humidity – Storage | 5 to 95%, non-condensing |
| Relative humidity – Transport | 5 to 95%, non-condensing |
Electrical properties - Encoder
| Number of outputs | 3; A / B / R |
| Resolution | 1024 increments / 256 positions per rotation |
| Output circuit | Push/Pull level, asymmetrical |
| Output protection | Protection against short circuit |
| Current consumption | Max. 12 mA + Output load |
| Supply voltage | 18 to 30 VDC |
| Max. output current | ±10 mA per output |
Mechanical properties
| Max. radial load | 290 N (note: Measured in the middle of the shaft) |
| Max. axial load | 225 N |
| Weight | 4,300 g |
| Length | 181.5 mm |
Accessories
Optional accessories (18)
| 80XMPXAC1.00-10 | Accessories — Gaskets for IP65 stepper motors for use with 80CMxxxxx.26-01 cables, 10 units per package |
| 80XMPXAC0.00-01 | Accessories — Accessory set for stepper motors with encoder, 8-pin and 4-pin connector and crimp contacts |
| 80CM20003.25-01 | Incremental encoder cables — Incremental encoder cable, length 20 m, 4x 0.14 mm², 2x 0.35 mm², 8-pin connector on the motor side, 9-pin DSUB connector on the drive side… |
| 80CM15003.25-01 | Incremental encoder cables — Incremental encoder cable, length 15 m, 4x 0.14 mm², 2x 0.35 mm², 8-pin connector on the motor side, 9-pin DSUB connector on the drive side… |
| 80CM10003.25-01 | Incremental encoder cables — Incremental encoder cable, length 10 m, 4x 0.14 mm², 2x 0.35 mm², 8-pin connector on the motor side, 9-pin DSUB connector on the drive side… |
| 80CM07503.25-01 | Incremental encoder cables — Incremental encoder cable, length 7.5 m, 4x 0.14 mm², 2x 0.35 mm², 8-pin connector on the motor side, 9-pin DSUB connector on the drive sid… |
| 80CM05003.25-01 | Incremental encoder cables — Incremental encoder cable, length 5 m, 4x 0.14 mm², 2x 0.35 mm², 8-pin connector on the motor side, 9-pin DSUB connector on the drive side,… |
| 80CM03003.25-01 | Incremental encoder cables — Incremental encoder cable, length 3 m, 4x 0.14 mm², 2x 0.35 mm², 8-pin connector on the motor side, 9-pin DSUB connector on the drive side,… |
| 80CM02003.25-01 | Incremental encoder cables — Incremental encoder cable, length 2 m, 4x 0.14 mm², 2x 0.35 mm², 8-pin connector on the motor side, 9-pin DSUB connector on the drive side,… |
| 80CM01003.25-01 | Incremental encoder cables — Incremental encoder cable, length 1 m, 4x 0.14 mm², 2x 0.35 mm², 8-pin connector on the motor side, 9-pin DSUB connector on the drive side,… |
| 80CM20001.21-01 | Motor cables — Motor cable, length 20 m, 5x 0.75 mm², 4-pin male connector on the motor side, can be used in cable drag chains, UL listed |
| 80CM15001.21-01 | Motor cables — Motor cable, length 15 m, 5x 0.75 mm², 4-pin male connector on the motor side, can be used in cable drag chains, UL listed |
| 80CM10001.21-01 | Motor cables — Motor cable, length 10 m, 5x 0.75 mm², 4-pin male connector on the motor side, can be used in cable drag chains, UL listed |
| 80CM05001.21-01 | Motor cables — Motor cable, length 5 m, 5x 0.75 mm², 4-pin male connector on the motor side, can be used in cable drag chains, UL listed |
| 80CM03001.21-01 | Motor cables — Motor cable, length 3 m, 5x 0.75 mm², 4-pin male connector on the motor side, can be used in cable drag chains, UL listed |
| 80CM02001.21-01 | Motor cables — Motor cable, length 2 m, 5x 0.75 mm², 4-pin male connector on the motor side, can be used in cable drag chains, UL listed |
| 80CM01501.21-01 | Motor cables — Motor cable, length 1.5 m, 5x 0.75 mm², 4-pin male connector on the motor side, can be used in cable drag chains, UL listed |
| 80CM01001.21-01 | Motor cables — Motor cable, length 1 m, 5x 0.75 mm², 4-pin male connector on the motor side, can be used in cable drag chains, UL listed |
