B&R 80CM02003.25-01

Name: B&R 80CM02003.25-01
Brand: B&R
SKU: 80CM02003.25-01

MPN: 80CM02003.25-01 · Brand: B&R

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Incremental encoder cables
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.05 kg

Shipping & availability

When can 80CM02003.25-01 be shipped?

80CM02003.25-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 80CM02003.25-01 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 80CM02003.25-01 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80CM02003.25-01, subject to availability and destination.

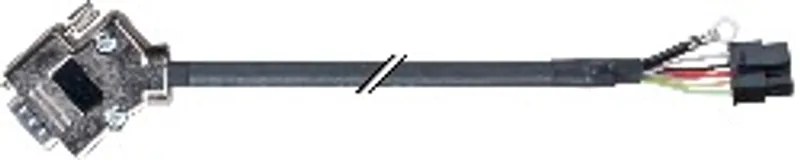

Incremental encoder cable, length 2 m, 4x 0.14 mm², 2x 0.35 mm², 8-pin connector on the motor side, 9-pin DSUB connector on the drive side, can be used in cable drag chains, UL listed

Specifications

Cable cross section	4x 0.14 mm² + 2x 0.35 mm²
Durability	Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils
Certification	UL AWM Style 20963, 80°C, 30 V, E63216
Quantity	4
Wire insulation	Special thermoplastic material
Wire colors	Gray, yellow, green, white
Variant	Tinned copper stranded wire
Cross section	0.35 mm²
Shield	No
Stranding	All 4 wires together
Cable stranding	With terminating foil shield
Cable shield	Copper braiding, optical coverage ≥ 85% and foil shield
Material	PUR
Color	Gray
Labeling	B&R 4x0,14+2x0,35 FLEX UL AWM STYLE 20963 80°C 30 V E63216
Wire - Wire	1.5 kV
Wire - Shield	0.8 kV
0.14 mm²	≤134 Ω/km
0.34 mm²	>55 Ω/km
Insulation resistance	>200 MΩ/km
Moving	≥50 mm
Static	-20 to 80°C
Length	2 m
Diameter	5.8 mm ±0.2 mm
Single bend	≥20 mm
Acceleration	<60 m/s²
Flex cycles	≥3,000,000
Velocity	≤4 m/s
Weight	0.045 kg/m
