Stepper motors with incremental encoder IP65 Parts

B&R 80MPF1.250S114-01 – 2-phase hybrid stepper motor, 60 mm flange, length 97.1 mm

B&R

80MPF1.250S114-01

2-phase hybrid stepper motor, 60 mm flange, length 97.1 mm

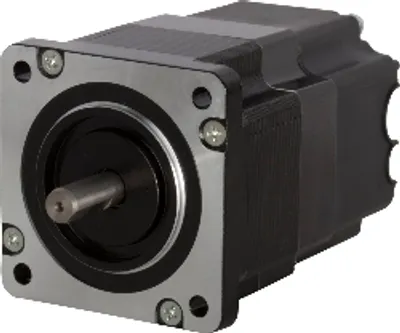

B&R 80MPF1.500S114-01 – 2-phase hybrid stepper motor, 60 mm flange, length 97.1 mm

B&R

80MPF1.500S114-01

2-phase hybrid stepper motor, 60 mm flange, length 97.1 mm

B&R 80MPF3.250S114-01 – 2-phase hybrid stepper motor, 60 mm flange, length 107.3 mm

B&R

80MPF3.250S114-01

2-phase hybrid stepper motor, 60 mm flange, length 107.3 mm

B&R 80MPF3.500S114-01 – 2-phase hybrid stepper motor, 60 mm flange, length 107.3 mm

B&R

80MPF3.500S114-01

2-phase hybrid stepper motor, 60 mm flange, length 107.3 mm

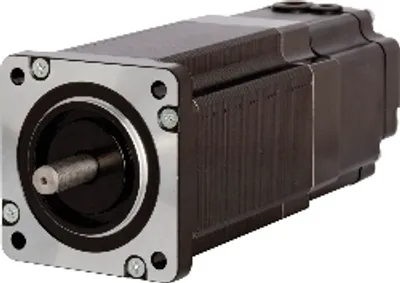

B&R 80MPF5.250S114-01 – 2-phase hybrid stepper motor, 60 mm flange, length 138.6 mm

B&R

80MPF5.250S114-01

2-phase hybrid stepper motor, 60 mm flange, length 138.6 mm

B&R 80MPF5.500S114-01 – 2-phase hybrid stepper motor, 60 mm flange, length 138.6 mm

B&R

80MPF5.500S114-01

2-phase hybrid stepper motor, 60 mm flange, length 138.6 mm

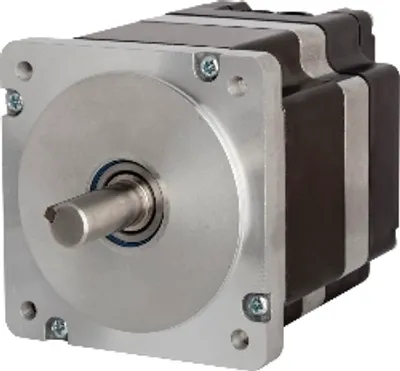

B&R 80MPH1.300S114-01 – 2-phase hybrid stepper motor, 87.1 mm flange

B&R

80MPH1.300S114-01

2-phase hybrid stepper motor, 87.1 mm flange

B&R 80MPH1.600S114-01 – 2-phase hybrid stepper motor, 87.1 mm flange

B&R

80MPH1.600S114-01

2-phase hybrid stepper motor, 87.1 mm flange

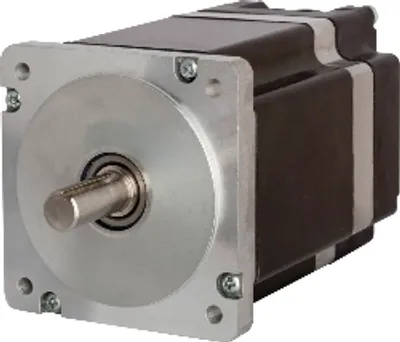

B&R 80MPH4.300S114-01 – 2-phase hybrid stepper motor, 87.1 mm flange

B&R

80MPH4.300S114-01

2-phase hybrid stepper motor, 87.1 mm flange

B&R 80MPH4.600S114-01 – 2-phase hybrid stepper motor, 87.1 mm flange

B&R

80MPH4.600S114-01

2-phase hybrid stepper motor, 87.1 mm flange

B&R 80MPH6.300S114-01 – 2-phase hybrid stepper motor, 87.1 mm flange

B&R

80MPH6.300S114-01

2-phase hybrid stepper motor, 87.1 mm flange

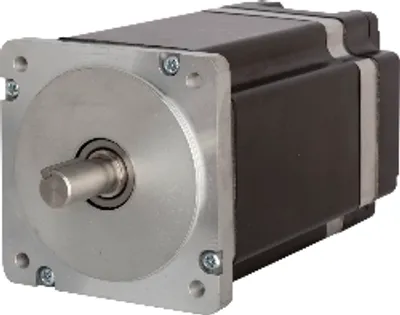

B&R 80MPH6.600S114-01 – 2-phase hybrid stepper motor, 87.1 mm flange

B&R

80MPH6.600S114-01

2-phase hybrid stepper motor, 87.1 mm flange

B&R 80MPH3.300S114-01 – 2-phase hybrid stepper motor, 87.1 mm flange

B&R

80MPH3.300S114-01

2-phase hybrid stepper motor, 87.1 mm flange

B&R 80MPH3.600S114-01 – 2-phase hybrid stepper motor, 87.1 mm flange

B&R

80MPH3.600S114-01

2-phase hybrid stepper motor, 87.1 mm flange

B&R 80MPH4.101S114-01 – 2-phase hybrid stepper motor, 87.1 mm flange

B&R

80MPH4.101S114-01

2-phase hybrid stepper motor, 87.1 mm flange

B&R 80MPH4.500S114-01 – 2-phase hybrid stepper motor, 87.1 mm flange

B&R

80MPH4.500S114-01

2-phase hybrid stepper motor, 87.1 mm flange

B&R 80MPH6.101S114-01 – 2-phase hybrid stepper motor, 87.1 mm flange

B&R

80MPH6.101S114-01

2-phase hybrid stepper motor, 87.1 mm flange

Compare Stepper motors with incremental encoder IP65

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Resistance/Phase	Inductance/Phase	Stall torque	Detent torque	Rotor inertia
80MPF1.250S114-01	1.28 Ω	3.4 mH	0.8 Nm	<35 mNm	280 gcm 2
80MPF1.500S114-01	0.32 Ω	0.85 mH	0.8 Nm	<35 mNm	280 gcm 2
80MPF3.250S114-01	1.52 Ω	5.6 mH	1.2 Nm	<35 mNm	440 gcm 2
80MPF3.500S114-01	0.38 Ω	1.4 mH	1.2 Nm	<35 mNm	440 gcm 2
80MPF5.250S114-01	2.4 Ω	11.2 mH	2.5 Nm	<75 mNm	920 gcm 2
80MPF5.500S114-01	0.6 Ω	2.8 mH	2.5 Nm	<75 mNm	920 gcm 2
80MPH1.300S114-01	1.7 Ω	12.9 mH	2.9 Nm	<160 mNm	Approx. 1.31 kgcm 2
80MPH1.600S114-01	0.4 Ω	3.2 mH	2.9 Nm	<160 mNm	Approx. 1.31 kgcm 2
80MPH4.300S114-01	2.2 Ω	17.3 mH	6.3 Nm	<320 mNm	Approx. 2.61 kgcm 2
80MPH4.600S114-01	0.6 Ω	4.3 mH	6.3 Nm	<320 mNm	Approx. 2.61 kgcm 2
80MPH6.300S114-01	2.7 Ω	20.0 mH	9.3 Nm	<420 mNm	Approx. 3.92 kgcm 2
80MPH6.600S114-01	0.7 Ω	5.0 mH	9.3 Nm	<420 mNm	Approx. 3.92 kgcm 2
80MPH3.300S114-01	2.2	17.3 mH	5.5 Nm	<210 mNm	Approx. 2.61 kgcm 2
80MPH3.600S114-01	0.6 Ω	4.3 mH	5.5 Nm	<210 mNm	Approx. 2.61 kgcm 2
80MPH4.101S114-01	0.2 Ω	1.4 mH	6.3 Nm	<320 mNm	Approx. 2.61 kgcm 2
80MPH4.500S114-01	0.9 Ω	5.6 mH	6.3 Nm	<320 mNm	Approx. 2.61 kgcm 2
80MPH6.101S114-01	0.24 Ω	1.6 mH	9.3 Nm	<420 mNm	Approx. 3.92 kgcm 2

Common to all listed parts

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	Not applicable
Stepping angle	1.8°
Max. surface temperature	95°C
Insulation class	B (130°C)
Insulation resistance	100 MΩ min. 500 VDC
Driver supply voltage	Max. 80 VDC
