B&R 80CM20003.25-01
Incremental encoder cable, length 20 m, 4x 0.14 mm²
- MPN
- 80CM20003.25-01
- Category
- Incremental encoder cables
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 80CM20003.25-01?

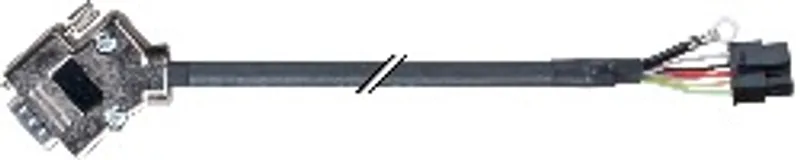

Incremental encoder cable, length 20 m, 4x 0.14 mm², 2x 0.35 mm², 8-pin connector on the motor side, 9-pin DSUB connector on the drive side, can be used in cable drag chains, UL listed
Specifications
General information
| Cable cross section | 4x 0.14 mm² + 2x 0.35 mm² |
| Durability | Oil resistance per VDE 0472 Part 803 as well as standard hydraulic oils |
| Certification | UL AWM Style 20963, 80°C, 30 V, E63216 |
Cable construction
| Supply lines – Quantity | 2 |
| Supply lines – Wire insulation | Special thermoplastic material |
| Supply lines – Wire colors | Red, black |
| Supply lines – Variant | Tinned copper stranded wire |
| Supply lines – Cross section | 0.35 mm² |
| Supply lines – Shield | No |
| Supply lines – Stranding | No |
| Signal line – Quantity | 4 |
| Signal line – Wire insulation | Special thermoplastic material |
| Signal line – Wire colors | Gray, yellow, green, white |
| Signal line – Variant | Tinned copper stranded wire |
| Signal line – Shield | No |
| Signal line – Stranding | All 4 wires together |
| Outer jacket – Material | PUR |
| Outer jacket – Color | Gray |
| Outer jacket – Labeling | B&R 4x0,14+2x0,35 FLEX UL AWM STYLE 20963 80°C 30 V E63216 |
| Cable stranding | With terminating foil shield |
| Cable shield | Copper braiding, optical coverage ≥ 85% and foil shield |
Electrical properties
| Test voltage – Wire - Wire | 1.5 kV |
| Test voltage – Wire - Shield | 0.8 kV |
| Conductor resistance – 0.14 mm² | ≤134 Ω/km |
| Conductor resistance – 0.34 mm² | >55 Ω/km |
| Insulation resistance | >200 MΩ/km |
Ambient conditions
| Temperature – Moving | -10 to 50°C |
| Temperature – Static | -20 to 80°C |
Mechanical properties
| Dimensions – Length | 20 m |
| Dimensions – Diameter | 5.8 mm ±0.2 mm |
| Bend radius – Single bend | ≥20 mm |
| Bend radius – Moving | ≥50 mm |
| Drag chain data – Acceleration | <60 m/s² |
| Drag chain data – Flex cycles | ≥3,000,000 (note: At an ambient temperature of 20°C and bend radius of 65 mm.) |
| Drag chain data – Velocity | ≤4 m/s |
| Weight | 0.045 kg/m |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
Certificates (1)
80CM20003.25-01: frequently asked questions
When can 80CM20003.25-01 be shipped?
80CM20003.25-01 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 80CM20003.25-01 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 80CM20003.25-01 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 80CM20003.25-01, subject to availability and destination.
